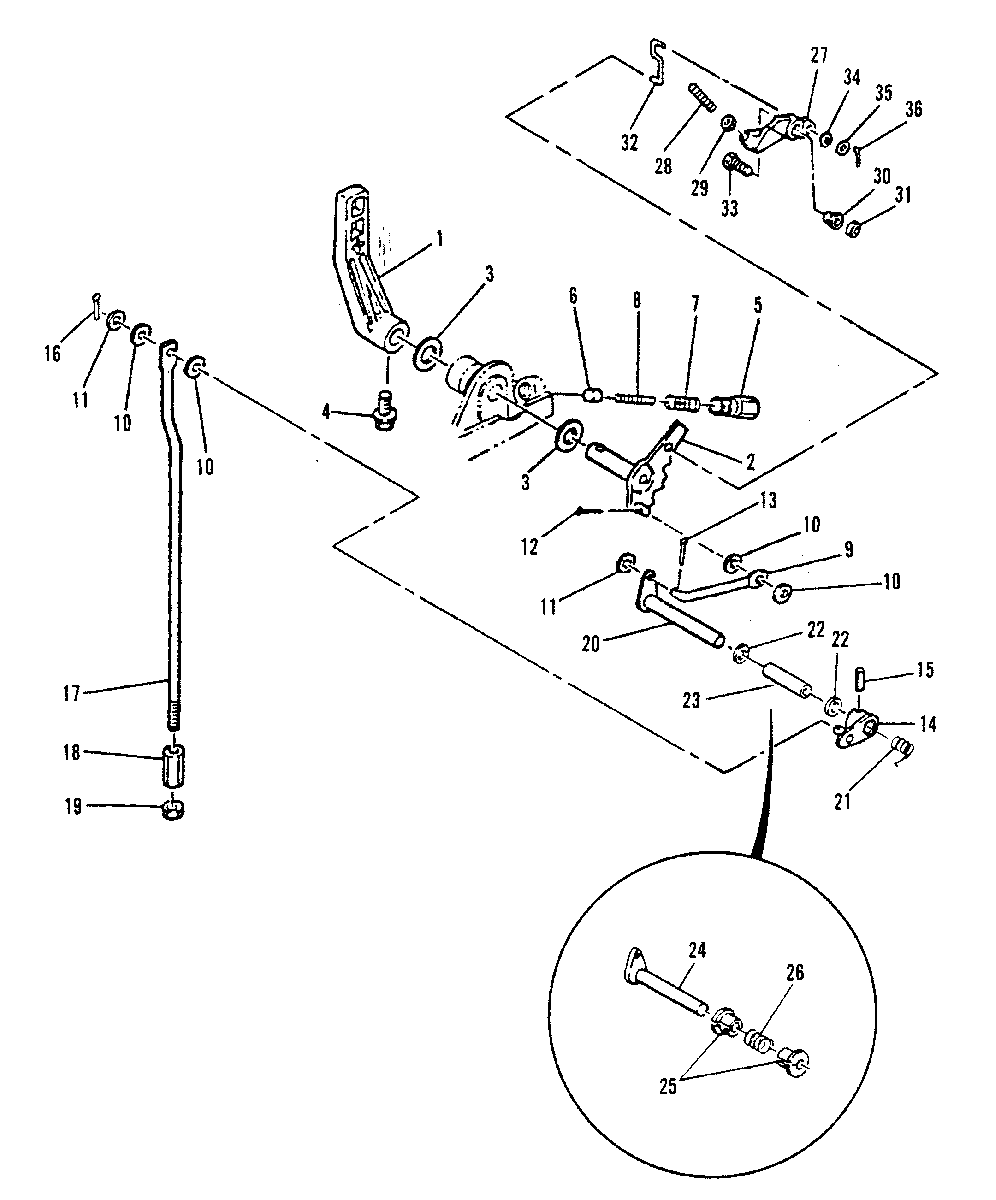

GEAR SHIFT LINKAGE для Mariner - 25C (THRU PROP. EXHAUST) 695-550101 THRU 555959
-
№АртикулНазвание
-
184865M HANDLE, GEAR SHIFTHANDLE, GEAR SHIFT
-
284653M CAM, SHAFTCAM, SHAFT
-
312-81851M WASHERWASHER
-
410-84830M BOLTBOLT
-
584459M RETAINER, SHIFT DETENTRETAINER, SHIFT DETENT
-
684460M PLUNGER, SHIFT CAMPLUNGER, SHIFT CAM
-
724-84461M SPRING, COMPRESSIONSPRING, COMPRESSION
-
824-84462M SPRING, COMPRESSIONSPRING, COMPRESSION
-
981595M LINK ROD, SHIFTLINK ROD, SHIFT
-
1012-81843M WASHERWASHER
-
1112-82211M WASHERWASHER
-
1218-82125M PIN, COTTERPIN, COTTER
-
1318-16189 PIN, COTTER
(SERIAL 00006086-09999999)PIN, COTTER
(SERIAL 00006086-09999999) -
1318-82125M PIN, COTTER
(SERIAL 00000000-00006085)PIN, COTTER
(SERIAL 00000000-00006085) -
1484867M SWIVEL, SHIFT RODSWIVEL, SHIFT ROD
-
1517-82155M PIN, ROLLPIN, ROLL
-
1618-82127M PIN, COTTERPIN, COTTER
-
1781596M SHAFT, SHIFT-UPPERSHAFT, SHIFT-UPPER
-
1880652M CONNECTOR, SHIFTCONNECTOR, SHIFT
-
1911-81767M NUTNUT
-
2097139M LEVER, SHIFT ROD
(SERIAL 00008606-09999999)LEVER, SHIFT ROD
(SERIAL 00008606-09999999) -
2124-97140M SPRING, TENSION
(SERIAL 00008606-09999999)SPRING, TENSION
(SERIAL 00008606-09999999) -
2212-81846M WASHER
(SERIAL 00008606-09999999)WASHER
(SERIAL 00008606-09999999) -
2323-97142M COLLAR
(SERIAL 00008606-09999999)COLLAR
(SERIAL 00008606-09999999) -
2484866M LEVER, SHIFT ROD
(SERIAL 00000000-00008605)LEVER, SHIFT ROD
(SERIAL 00000000-00008605) -
2523-81946M BUSHING
(SERIAL 00000000-00008605)BUSHING
(SERIAL 00000000-00008605) -
2624-82108M SPRING, TENSION
(SERIAL 00000000-00008605)SPRING, TENSION
(SERIAL 00000000-00008605) -
2791648M ARM
(SERIAL 00019911-09999999)ARM
(SERIAL 00019911-09999999) -
2816-41883M BOLT
(SERIAL 00019911-09999999)BOLT
(SERIAL 00019911-09999999) -
2911-82388M NUT
(SERIAL 00019911-09999999)NUT
(SERIAL 00019911-09999999) -
3023-83310M COLLAR
(SERIAL 00019911-09999999)COLLAR
(SERIAL 00019911-09999999) -
3112-81969M COLLAR
(SERIAL 00019911-09999999)COLLAR
(SERIAL 00019911-09999999) -
3291650M LINK
(SERIAL 00019911-09999999)LINK
(SERIAL 00019911-09999999) -
3310-84058M BOLT
(SERIAL 00019911-09999999)BOLT
(SERIAL 00019911-09999999) -
3413-81865M WASHER, WAVE
(SERIAL 00019911-09999999)WASHER, WAVE
(SERIAL 00019911-09999999) -
3512-82211M WASHER
(SERIAL 00019911-09999999)WASHER
(SERIAL 00019911-09999999) -
3618-82125M PIN, COTTER
(SERIAL 00019911-09999999)PIN, COTTER
(SERIAL 00019911-09999999)
