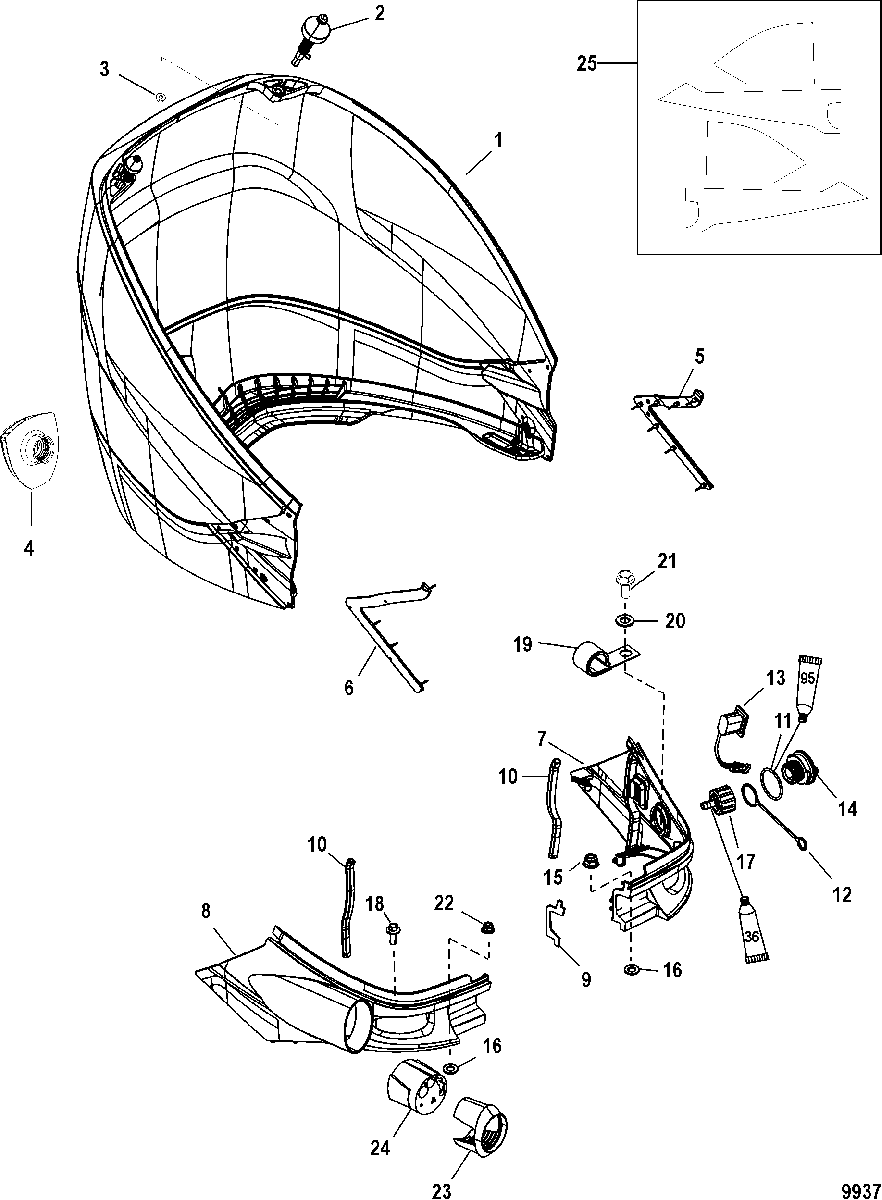

Rear Cowl для Mariner - 250 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122

  • №
    Артикул
    Название
  • 1
    100-8M0100175 COWL ASSEMBLY, Rear, Black (WITHOUT DECALS)
    COWL ASSEMBLY, Rear, Black (WITHOUT DECALS)
  • 1
    100-8M0100176 COWL ASSEMBLY, Rear, Cool White
    COWL ASSEMBLY, Rear, Cool White
  • 1
    100-8M0100177 COWL ASSEMBLY, Rear, Warm White
    COWL ASSEMBLY, Rear, Warm White
  • 2
    17-888961A01 PIN ASSEMBLY
    PIN ASSEMBLY
  • 3
    11-892233 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 4
    885360 IDLE RELIEF
    IDLE RELIEF
  • 5
    893343001 SEAL, Port
    SEAL, Port
  • 6
    893344001 SEAL, Starboard
    SEAL, Starboard
  • -
    100-8M0100172 FRONT COWL KIT, Port and Starboard, Black
    FRONT COWL KIT, Port and Starboard, Black
  • -
    100-8M0100173 FRONT COWL KIT, Port and Starboard, Cool White
    FRONT COWL KIT, Port and Starboard, Cool White
  • -
    100-8M0100174 FRONT COWL KIT, Port and Starboard, Warm White
    FRONT COWL KIT, Port and Starboard, Warm White
  • 7
    NSS NOT SOLD SEPARATE, FRONT COWL, Port, Order Front Cowl
    NOT SOLD SEPARATE, FRONT COWL, Port, Order Front Cowl
  • 8
    NSS NOT SOLD SEPARATE, FRONT COWL, Stbd, Order Front Cowl
    NOT SOLD SEPARATE, FRONT COWL, Stbd, Order Front Cowl
  • 9
    27-892315 GASKET
    GASKET
  • 10
    8M0043266 SEAL
    SEAL
  • 11
    25-888957 O-RING
    O-RING
  • 12
    889823001 TETHER
    TETHER
  • 13
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 14
    22-888958001 PLUG, Flush
    PLUG, Flush
  • 15
    11-892233 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 16
    12-4002316 WASHER
    WASHER
  • 17
    22-885361A01 FITTING ASSEMBLY, Flush
    FITTING ASSEMBLY, Flush
  • 18
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 19
    54-858951A01 CLAMP KIT
    CLAMP KIT
  • 20
    12-4002316 WASHER
    WASHER
  • 21
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    11-892233 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 23
    8M0043519 ADAPTOR
    ADAPTOR
  • 24
    25-897169 GROMMET
    GROMMET
  • 25
    8M4501634 SOUND BLANKET KIT, Component of 885358T04
    SOUND BLANKET KIT, Component of 885358T04
  • -
    37-8M0075217 DECAL, Joystick Piloting
    DECAL, Joystick Piloting
