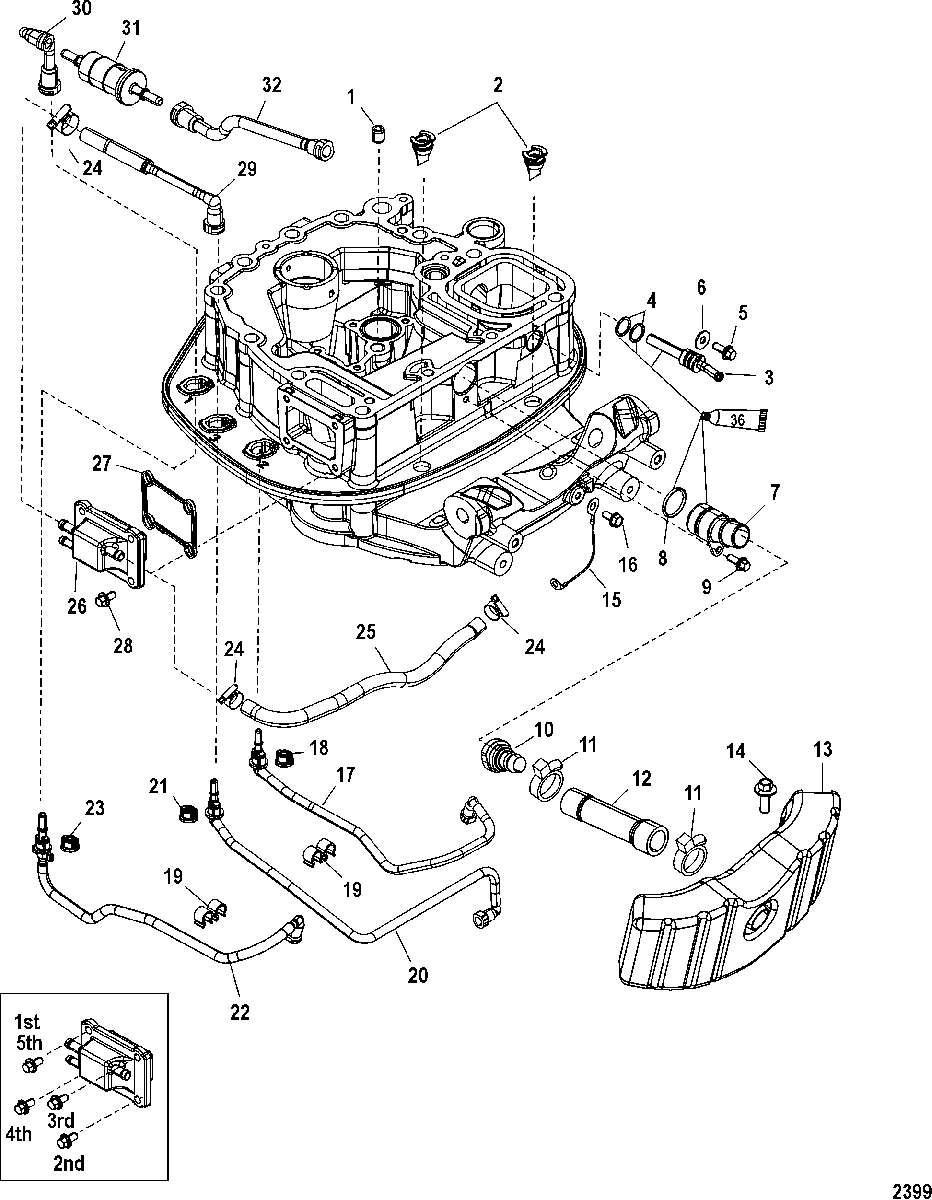

Adaptor Plate Hose Routings для Mariner - 250 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122

  • №
    Артикул
    Название
  • 1
    17-884474001 PIN, Dowel (12 mm)
    PIN, Dowel (12 mm)
  • 2
    888819002 DRAIN, Cowl
    DRAIN, Cowl
  • 3
    22-888461A01 FITTING KIT
    FITTING KIT
  • 4
    25-892446 O-RING, (14 X 1.78 MM)
    O-RING, (14 X 1.78 MM)
  • 5
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 6
    12-4002316 WASHER
    WASHER
  • 7
    22-889792A01 FITTING KIT, Idle Exhaust
    FITTING KIT, Idle Exhaust
  • 8
    25-889828 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 9
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 10
    22-889846 FITTING
    FITTING
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    32-888981001 HOSE, Idle Exhaust
    HOSE, Idle Exhaust
  • 13
    892384T PLENUM, Exhaust
    PLENUM, Exhaust
  • 14
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    88238A21 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 16
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 17
    32-8M0087120 HOSE, Manifold Reference-Lower
    HOSE, Manifold Reference-Lower
  • 18
    25-884546 GROMMET
    GROMMET
  • 19
    888523001 CLIP
    CLIP
  • 20
    32-8M0087106 HOSE, Water In-Lower
    HOSE, Water In-Lower
  • 21
    25-884546 GROMMET
    GROMMET
  • 22
    32-8M0087116 HOSE, Fuel Supply Module-Out
    SN# 1B792493 & Below
    HOSE, Fuel Supply Module-Out
    SN# 1B792493 & Below
  • 22
    32-8M0087116 HOSE, Fuel Supply Module-Out
    SN# 1B792494 & Up
    HOSE, Fuel Supply Module-Out
    SN# 1B792494 & Up
  • 23
    25-884546 GROMMET
    GROMMET
  • 24
    54-815504104 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 21 Inches
    TUBING, (.312) (70.00 Inches Bulk), Cut to 21 Inches
  • 26
    892562T01 HOUSING, Manifold
    HOUSING, Manifold
  • 27
    892117 SEAL
    SEAL
  • 28
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 29
    32-887756 HOSE, Water In-Upper
    HOSE, Water In-Upper
  • 30
    32-8M0087104 HOSE, Hi-Pressure Filter
    SN# 1B792493 & Below
    HOSE, Hi-Pressure Filter
    SN# 1B792493 & Below
  • 30
    32-8M0087104 HOSE, Hi-Pressure Filter
    SN# 1B792494 & Up
    HOSE, Hi-Pressure Filter
    SN# 1B792494 & Up
  • 31
    35-879885Q FILTER, Fuel
    FILTER, Fuel
  • 32
    32-8M0087122 HOSE, Hi-Pressure Filter To Fuel Rail
    SN# 1B792493 & Below
    HOSE, Hi-Pressure Filter To Fuel Rail
    SN# 1B792493 & Below
  • 32
    32-8M0087122 HOSE, Hi-Pressure Filter To Fuel Rail
    SN# 1B792494 & Up
    HOSE, Hi-Pressure Filter To Fuel Rail
    SN# 1B792494 & Up
  • -
    27-880552A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    61-895247A07 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
