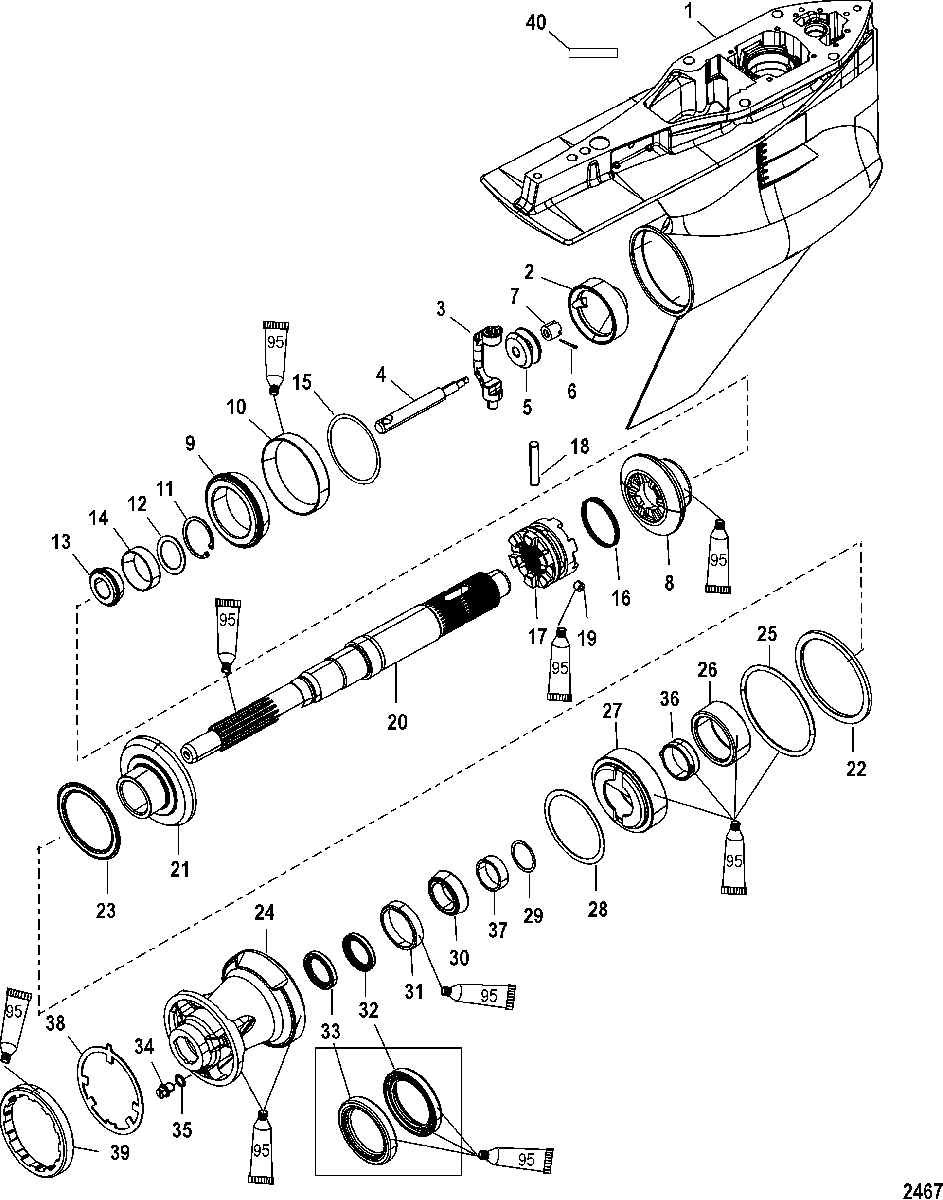

Gear Housing, PropShaft-Count Rot,4.80 Torp 2B026816 & below для Mariner - 250 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122

  • №
    Артикул
    Название
  • -
    1600-880686T15 GEAR HOUSING ASSEMBLY, Complete
    (X-Long)(1.85:1)(200 thru 275)
    GEAR HOUSING ASSEMBLY, Complete
    (X-Long)(1.85:1)(200 thru 275)
  • -
    1600-880686T17 GEAR HOUSING ASSEMBLY, Complete
    (XX-Long)(1.85:1)(200 thru 275)
    GEAR HOUSING ASSEMBLY, Complete
    (XX-Long)(1.85:1)(200 thru 275)
  • -
    1600-880686T57 GEAR HOUSING ASSEMBLY, Complete
    (Long)(1.75:1)(300)
    GEAR HOUSING ASSEMBLY, Complete
    (Long)(1.75:1)(300)
  • -
    1600-880686T58 GEAR HOUSING ASSEMBLY, Complete
    (X-Long)(1.75:1)(300)
    GEAR HOUSING ASSEMBLY, Complete
    (X-Long)(1.75:1)(300)
  • -
    1600-880686T59 GEAR HOUSING ASSEMBLY, Complete
    (XX-Long)(1.75:1)
    GEAR HOUSING ASSEMBLY, Complete
    (XX-Long)(1.75:1)
  • 1
    1600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank
    SN# 1B853027 & Below
    GEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank
    SN# 1B853027 & Below
  • 1
    1600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
    SN# 1B853028 & Up
    GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
    SN# 1B853028 & Up
  • 2
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 3
    896847A01 CRANK, Shifter, 5/16 Pivot Pin
    SN# 1B853027 & Below
    CRANK, Shifter, 5/16 Pivot Pin
    SN# 1B853027 & Below
  • 3
    8M0046215 CRANK, Shifter, 1/4 Pivot Pin
    SN# 1B853028 & Up
    CRANK, Shifter, 1/4 Pivot Pin
    SN# 1B853028 & Up
  • 4
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Spool
    NOT SOLD SEPARATE, Spool
  • 6
    18-469501 COTTER PIN
    COTTER PIN
  • 7
    NSS NOT SOLD SEPARATE, Sleeve Adjusting
    NOT SOLD SEPARATE, Sleeve Adjusting
  • 8
    43-892809A02 GEAR ASSEMBLY, Reverse
    (1.85:1)(200 thru 275)
    GEAR ASSEMBLY, Reverse
    (1.85:1)(200 thru 275)
  • 8
    43-880723A02 GEAR, Reverse
    (1.75:1)(300)
    GEAR, Reverse
    (1.75:1)(300)
  • 9
    31-884323T01 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 11
    53-8M0051043 RING, Retaining
    RING, Retaining
  • 12
    12-8M0053823 THRUST WASHER
    THRUST WASHER
  • 13
    31-884325T01 BEARING ASSEMBLY, Roller-Tappered
    BEARING ASSEMBLY, Roller-Tappered
  • 14
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 15
    15-8M0063270 SHIM SET
    SHIM SET
  • 16
    24-30893 SPRING
    SPRING
  • 17
    52-880714T CLUTCH
    CLUTCH
  • 18
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 19
    17-828356 PIN, Detent
    PIN, Detent
  • 20
    44-888530 PROPELLER SHAFT
    PROPELLER SHAFT
  • 21
    43-8M0142882 GEAR SET, Forward/Pinion
    (1.85:1)(200 thru 275)
    GEAR SET, Forward/Pinion
    (1.85:1)(200 thru 275)
  • 21
    43-8M0119539 GEAR KIT, Forward/Pinion
    (1.75:1)(300)
    GEAR KIT, Forward/Pinion
    (1.75:1)(300)
  • 22
    880699 THRUST RING
    THRUST RING
  • 23
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 24
    880696A10 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 25
    25-896524 O-RING, (3.850 x .210)
    O-RING, (3.850 x .210)
  • 26
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 27
    880728 ADAPTOR, Bearing
    ADAPTOR, Bearing
  • 28
    15-47397A1 SHIM SET
    SHIM SET
  • 29
    15-891936A01 SHIM SET
    SHIM SET
  • 30
    31-884330T01 BEARING ASSEMBLY, Tapered
    BEARING ASSEMBLY, Tapered
  • 31
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 32
    26-888483 SEAL, Oil
    SEAL, Oil
  • 33
    26-888483 SEAL, Oil
    SEAL, Oil
  • 34
    10-880717A01 SCREW/SEAL KIT
    SCREW/SEAL KIT
  • 35
    26-830749 SEAL
    SEAL
  • 36
    8M0053183 ADAPTOR
    ADAPTOR
  • 37
    23-891919001 SPACER, Thrust
    SPACER, Thrust
  • 38
    14-880697 KEYED WASHER
    KEYED WASHER
  • 39
    8M2000347 RETAINER
    RETAINER
  • 40
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • -
    26-830749A01 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
