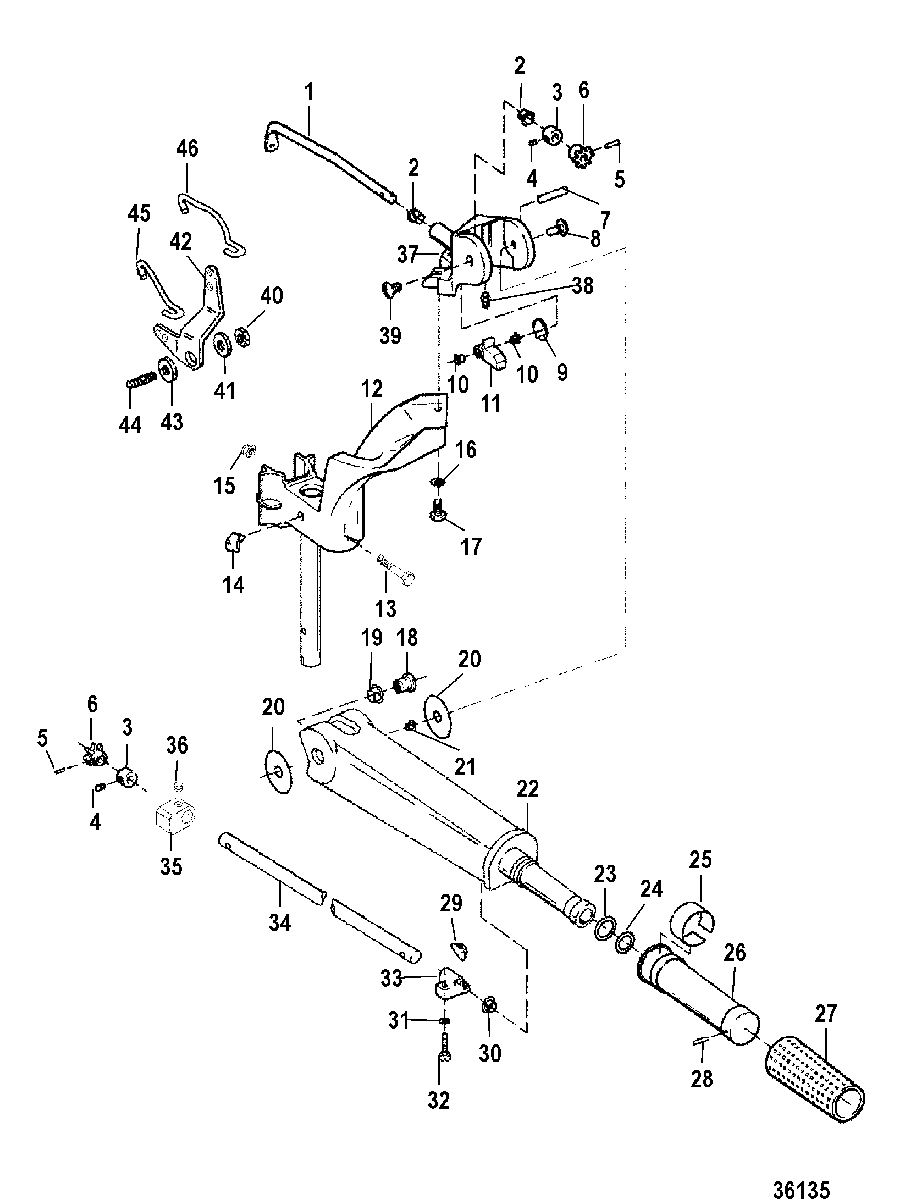

TILLER HANDLE/LINKAGE для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • 1
    851928 SHAFT, Throttle Control
    SHAFT, Throttle Control
  • 2
    23-26841 BUSHING
    BUSHING
  • 3
    FA343178 RETAINER KIT, Steering Shaft
    RETAINER KIT, Steering Shaft
  • 4
    10-832794 SET SCREW, (.250-28 X .250) (.250-28 X .250)
    SET SCREW, (.250-28 X .250) (.250-28 X .250)
  • 5
    17-29908 PIN
    PIN
  • 6
    43-8180091 GEAR, Steering Shaft
    GEAR, Steering Shaft
  • 7
    17-F1807 PIN, Groove
    PIN, Groove
  • 8
    10-823595 SCREW (SPECIAL)
    SCREW (SPECIAL)
  • 9
    24-F286868 SPRING, Steering Handle Stop
    SPRING, Steering Handle Stop
  • 10
    23-26856 BUSHING
    BUSHING
  • 11
    F286490T STOP, Steering Handle
    STOP, Steering Handle
  • 12
    835373A6 BRACKET ASSEMBLY, Steering Arm
    (MERCURY)
    BRACKET ASSEMBLY, Steering Arm
    (MERCURY)
  • 12
    835373A7 BRACKET ASSEMBLY, Steering Arm
    (MARINER)
    BRACKET ASSEMBLY, Steering Arm
    (MARINER)
  • 13
    10-828815 SCREW, (.250-20 x 1.750) (.250-20 X 1.750)
    SCREW, (.250-20 x 1.750) (.250-20 X 1.750)
  • 14
    19-F286539 BUMPER
    BUMPER
  • 15
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • 16
    13-72521 LOCKWASHER, Internal Tooth
    LOCKWASHER, Internal Tooth
  • 17
    10-38837 SCREW, (.312-18 x 1.12)
    SCREW, (.312-18 x 1.12)
  • 18
    F2862241 INSERT, Steering Handle Pivot
    INSERT, Steering Handle Pivot
  • 19
    23-812707 BUSHING
    BUSHING
  • 20
    12-F286220 WASHER, Steering Handle
    WASHER, Steering Handle
  • 21
    23-26856 BUSHING
    BUSHING
  • 22
    819279T1 HANDLE, Steering
    (MERCURY)
    HANDLE, Steering
    (MERCURY)
  • 22
    819279T2 HANDLE, Steering
    (MARINER)
    HANDLE, Steering
    (MARINER)
  • 23
    25-21836 O-RING, (.796 x .139) (LARGE)
    O-RING, (.796 x .139) (LARGE)
  • 24
    25-38101 O-RING, (.674 x .103) (SMALL)
    O-RING, (.674 x .103) (SMALL)
  • 25
    37-F712894 DECAL, Speed/Shift Indicator
    DECAL, Speed/Shift Indicator
  • 26
    828406A1 HANDLE/GRIP ASSEMBLY, Throttle
    HANDLE/GRIP ASSEMBLY, Throttle
  • 27
    828406 GRIP, Throttle/Steering Handle
    GRIP, Throttle/Steering Handle
  • 28
    17-72255 PIN, Roll
    PIN, Roll
  • 29
    819227 WEDGE, Steering Handle
    WEDGE, Steering Handle
  • 30
    23-97896 BUSHING
    BUSHING
  • 31
    13-F8058 LOCKWASHER, Internal (#10)
    LOCKWASHER, Internal (#10)
  • 32
    10-F1829 SCREW, (#10-24 x .875)
    SCREW, (#10-24 x .875)
  • 33
    F4878161 BEARING
    BEARING
  • 34
    819160 SHAFT, Steering Handle
    SHAFT, Steering Handle
  • 35
    832759 STOP, Throttle
    STOP, Throttle
  • 36
    10-832794 SET SCREW, (.250-28 X .250) (.250-28 X .250)
    SET SCREW, (.250-28 X .250) (.250-28 X .250)
  • 37
    817751A7 BRACKET ASSEMBLY, Steering
    (MERCURY)
    BRACKET ASSEMBLY, Steering
    (MERCURY)
  • 37
    817751A8 BRACKET ASSEMBLY, Steering
    (MARINER)
    BRACKET ASSEMBLY, Steering
    (MARINER)
  • 38
    22-F523274 FITTING, Grease
    FITTING, Grease
  • 39
    10-823594 SCREW (SPECIAL)-PIVOT
    SCREW (SPECIAL)-PIVOT
  • 40
    11-82670911 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 41
    12-F286282 WASHER (SPECIAL)
    WASHER (SPECIAL)
  • 42
    819148 LEVER, Magneto Control
    LEVER, Magneto Control
  • 43
    23-F183813 BEARING, Control Lever
    BEARING, Control Lever
  • 44
    16-834759 STUD, (.312-24 X 1.14) Special (.312-24 X 1.140)
    STUD, (.312-24 X 1.14) Special (.312-24 X 1.140)
  • 45
    826846 LINK, Throttle Shaft
    LINK, Throttle Shaft
  • 46
    824142T LINK, Throttle Cam
    LINK, Throttle Cam
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
