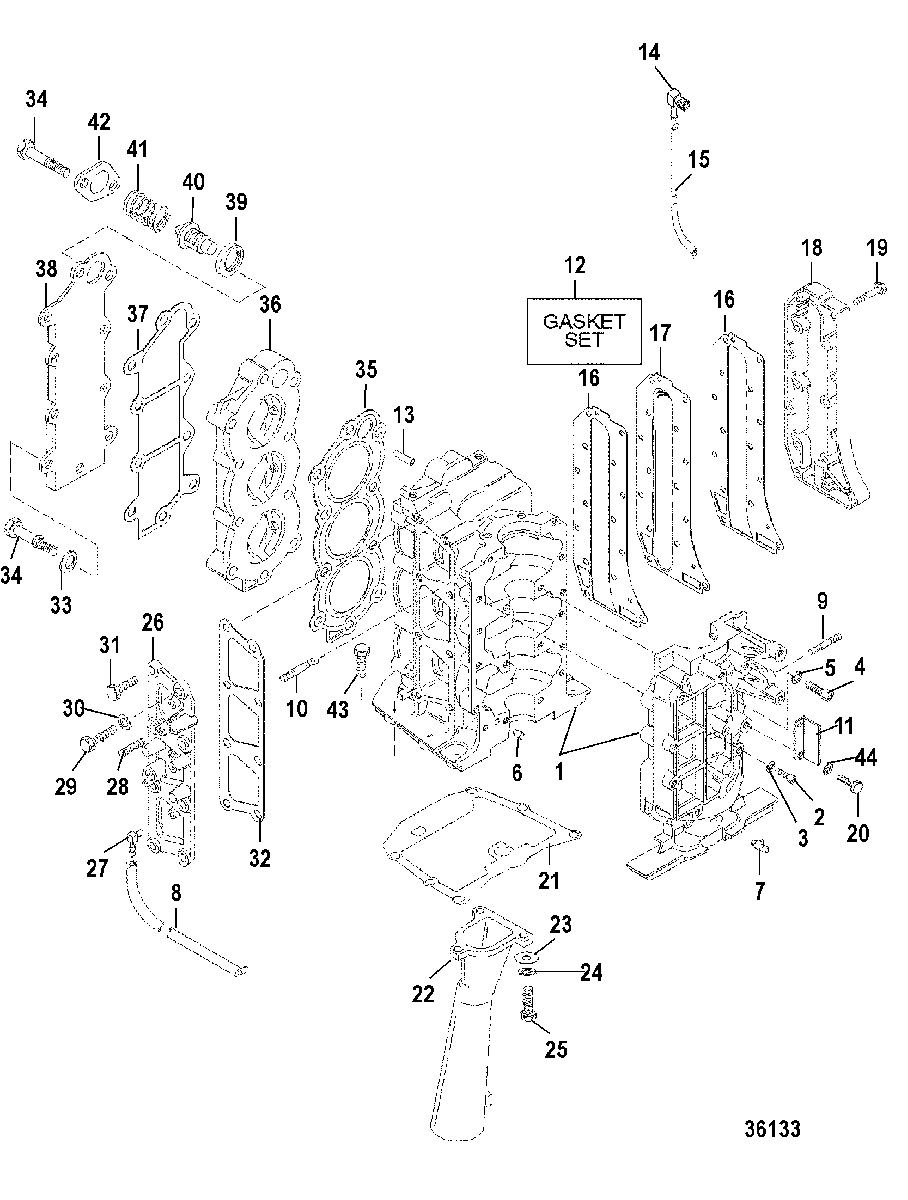

CYLINDER BLOCK ASSEMBLY для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • 1
    800-819240A6 POWERHEAD ASSEMBLY (COMPLETE)
    POWERHEAD ASSEMBLY (COMPLETE)
  • 1
    800-819240A5 CYLINDER ASSEMBLY
    CYLINDER ASSEMBLY
  • 2
    10-92160 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 3
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 4
    10-54523 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 5
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 6
    17-F8559 PIN
    PIN
  • 7
    21-426585 CHECK VALVE
    CHECK VALVE
  • 8
    32-892024122 TUBING, (20.00 Feet Bulk) (CUT 2 PCS-15.00 IN.)(CUT 1 PC-12.058 IN.)
    TUBING, (20.00 Feet Bulk) (CUT 2 PCS-15.00 IN.)(CUT 1 PC-12.058 IN.)
  • 9
    16-834759 STUD, (.312-24 X 1.14) Special
    STUD, (.312-24 X 1.14) Special
  • 10
    16-826590 STUD, (.250-20 x 1.690)
    STUD, (.250-20 x 1.690)
  • 11
    834753 BRACKET, Throttle Stop
    BRACKET, Throttle Stop
  • 12
    27-809516A1 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • 13
    32-819243 TUBE, Water Jacket
    TUBE, Water Jacket
  • 14
    22-887801 ELBOW, Tell-Tale Tubing
    ELBOW, Tell-Tale Tubing
  • 15
    32-5495025 HOSE (7.00 IN.)-TELL TALE
    HOSE (7.00 IN.)-TELL TALE
  • 16
    27-819140 GASKET, Exhaust Cover
    GASKET, Exhaust Cover
  • 17
    819152 PLATE, Exhaust
    PLATE, Exhaust
  • 18
    1000-819136T1 COVER, Exhaust
    COVER, Exhaust
  • 19
    10-819110125 SCREW, (.250-20 X 1.250)
    SCREW, (.250-20 X 1.250)
  • 20
    10-90192 SCREW, (.250-20 x .750) Stainless Steel, GROUND WIRE
    SCREW, (.250-20 x .750) Stainless Steel, GROUND WIRE
  • 21
    27-819498 GASKET, Cylinder Mount
    GASKET, Cylinder Mount
  • 22
    819157T1 TUBE, Exhaust
    TUBE, Exhaust
  • 23
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 24
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 25
    10-90192 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 26
    1000-819137T1 COVER ASSEMBLY, Transfer Port
    COVER ASSEMBLY, Transfer Port
  • 27
    22-15133 FITTING
    FITTING
  • 28
    16-F681134 STUD, Interlock Lever
    STUD, Interlock Lever
  • 29
    10-90192 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 30
    12-26907 WASHER
    WASHER
  • 31
    10-F1535 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    27-819143 GASKET, Transfer Port Cover
    GASKET, Transfer Port Cover
  • 33
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 34
    10-F1882 SCREW, (.312-18 x 2.125)
    SCREW, (.312-18 x 2.125)
  • 35
    27-8191382 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 36
    900-819145T2 CYLINDER HEAD
    CYLINDER HEAD
  • 37
    27-8191391 GASKET, Cylinder Head Cover
    GASKET, Cylinder Head Cover
  • 38
    819134T COVER, Cylinder Head
    COVER, Cylinder Head
  • 39
    12-F658504 WASHER
    WASHER
  • 40
    895338 THERMOSTAT, 54A°C (130A°F)
    THERMOSTAT, 54A°C (130A°F)
  • 41
    24-819161 SPRING, Thermostat
    SPRING, Thermostat
  • 42
    819439T COVER, Thermostat
    COVER, Thermostat
  • 43
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 44
    13-78968 LOCKWASHER, Internal (.250), GROUND SCREW
    LOCKWASHER, Internal (.250), GROUND SCREW
  • -
    27-809516A1 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
