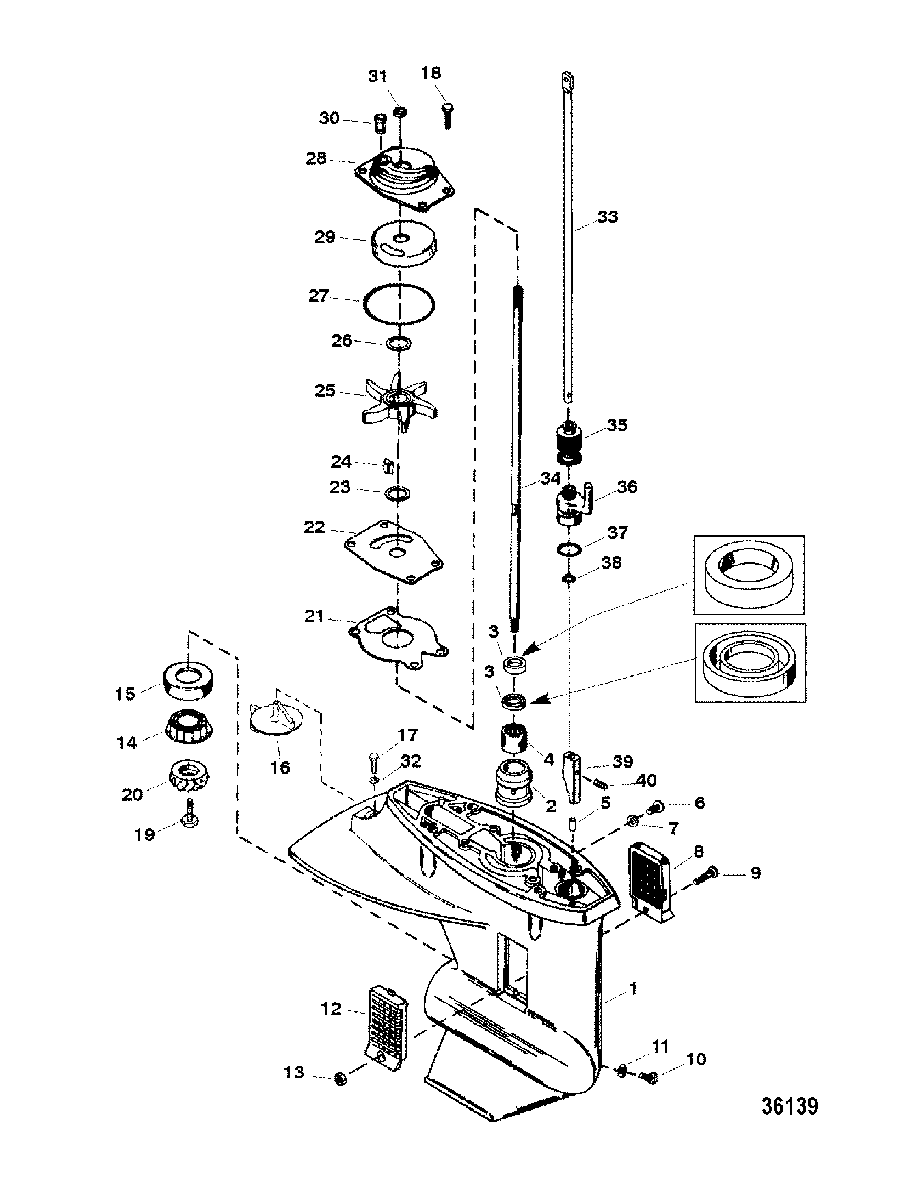

GEAR HOUSING ASSEMBLY, DRIVESHAFT для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • 1
    1665-8669A42 GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MERCURY)
    GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MERCURY)
  • 1
    1665-8669A43 GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MARINER)
    GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MARINER)
  • 1
    1665-8669A44 GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MERCURY)
    GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MERCURY)
  • 1
    1665-8669A45 GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MARINER)
    GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MARINER)
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
    GEAR HOUSING ASSEMBLY, Basic-Black
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Gray
    GEAR HOUSING ASSEMBLY, Basic-Gray
  • 2
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 3
    26-99325 SEAL
    SEAL
  • 4
    31-41326 BEARING, Roller
    BEARING, Roller
  • 5
    17-8M0084726 PIN, Dowel (.187 x .530)
    PIN, Dowel (.187 x .530)
  • 6
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 7
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 8
    35-41133 SCREEN, Water Inlet Port
    SCREEN, Water Inlet Port
  • 9
    10-40031112 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 10
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 11
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 12
    35-41134 SCREEN (STARBOARD)
    SCREEN (STARBOARD)
  • 13
    11-400263 NUT, (M5), SCREEN SCREW
    NUT, (M5), SCREEN SCREW
  • 14
    31-98294A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 15
    NSS NOT SOLD SEPARATE, Cup-roller Bearing
    NOT SOLD SEPARATE, Cup-roller Bearing
  • 16
    97-98432Q6 TRIM TAB
    TRIM TAB
  • 17
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 18
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 19
    10-49908 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 20
    43-98302 GEAR, Pinion
    GEAR, Pinion
  • 21
    27-993261 GASKET
    GASKET
  • 22
    85083 FACE PLATE
    FACE PLATE
  • 23
    12-866451 WASHER
    WASHER
  • 24
    28-8M0032838 KEY
    KEY
  • 25
    47-8508910 IMPELLER
    IMPELLER
  • 26
    12-866451 WASHER
    WASHER
  • 27
    25-69202 O-RING
    O-RING
  • 28
    46-99157A02 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 29
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 30
    26-85090001 SEAL
    SEAL
  • 31
    25-86203 O-RING
    O-RING
  • 32
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 33
    853939 ROD, Gear Shift
    (15 IN. SHORT MODELS)
    ROD, Gear Shift
    (15 IN. SHORT MODELS)
  • 33
    853940 ROD, Gear Shift
    (20 IN. LONG MODELS)
    ROD, Gear Shift
    (20 IN. LONG MODELS)
  • 34
    45-827024T DRIVESHAFT
    (15 IN. SHORT MODELS)
    DRIVESHAFT
    (15 IN. SHORT MODELS)
  • 34
    45-827025T DRIVESHAFT
    (20 IN. LONG MODELS)
    DRIVESHAFT
    (20 IN. LONG MODELS)
  • 35
    85552001 BOOT
    BOOT
  • 36
    93878 RETAINER
    RETAINER
  • 37
    25-35276 O-RING, (.734 x .139)
    O-RING, (.734 x .139)
  • 38
    25-85594 O-RING, (.239 x .174)
    O-RING, (.239 x .174)
  • 39
    85562A2 SHIFT CAM
    SHIFT CAM
  • 40
    17-85096 PIN, Drive
    PIN, Drive
  • -
    26-85090A2 SEAL KIT
    SEAL KIT
  • -
    46-99157T2 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
