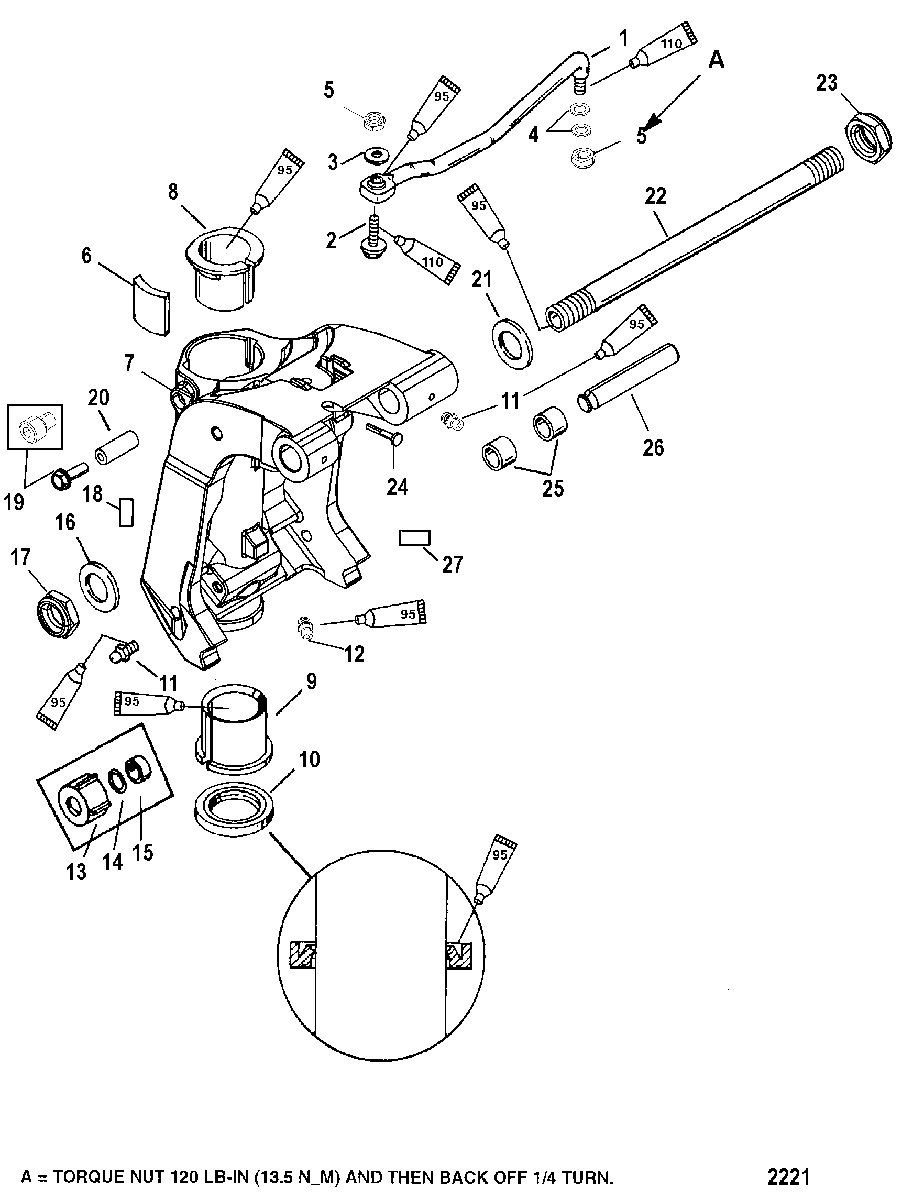

Swivel Bracket для Mariner - 25 (4-STROKE) 0T409000 THRU 1B344298

  • №
    Артикул
    Название
  • 1
    19608A14 ATTACHING KIT, Engine Steering
    (NON HANDLE)
    ATTACHING KIT, Engine Steering
    (NON HANDLE)
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    (NON HANDLE)
    SCREW, (.375-24 x 1.500)
    (NON HANDLE)
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    (NON HANDLE)
    WASHER, (.390 x .546 x .12)
    (NON HANDLE)
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    (NON HANDLE)
    WASHER, (.390 x .625 x .062) Stainless Steel
    (NON HANDLE)
  • 5
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (NON HANDLE)
    NUT, (.375-24) Stainless Steel
    (NON HANDLE)
  • 6
    822397 PUCK
    (ELECTRIC)
    PUCK
    (ELECTRIC)
  • 7
    3410-827402T5 SWIVEL BRACKET
    SN# USA-0T800999/BEL-0P267999 & Below
    SWIVEL BRACKET
    SN# USA-0T800999/BEL-0P267999 & Below
  • 7
    3410-827402T5 SWIVEL BRACKET
    SN# USA-0T801000/BEL-0P268000 & Up
    SWIVEL BRACKET
    SN# USA-0T801000/BEL-0P268000 & Up
  • 8
    23-8217711 BUSHING
    BUSHING
  • 9
    23-821777 BUSHING (LOWER)
    BUSHING (LOWER)
  • 10
    26-822404 SEAL
    SEAL
  • 11
    22-74036 FITTING, Grease
    FITTING, Grease
  • 12
    22-74036 FITTING, Grease
    (HANDLE)
    FITTING, Grease
    (HANDLE)
  • 13
    19624A1 SEAL KIT
    (NON HANDLE)
    SEAL KIT
    (NON HANDLE)
  • 14
    25-29619 O-RING, (.583 x .103)
    (NON HANDLE)
    O-RING, (.583 x .103)
    (NON HANDLE)
  • 15
    23-78861 SPACER
    (NON HANDLE)
    SPACER
    (NON HANDLE)
  • 16
    12-19619 WASHER
    WASHER
  • 17
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 18
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 19
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    (MANUAL HANDLE)
    SCREW, (M8 x 10) Stainless Steel
    (MANUAL HANDLE)
  • 19
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    (ELECTRIC)
    SCREW, (M8 x 25) Stainless Steel
    (ELECTRIC)
  • 20
    8282451 SEAL
    (ELECTRIC)
    SEAL
    (ELECTRIC)
  • 21
    12-19619 WASHER
    WASHER
  • 22
    8M0041938 TILT TUBE
    TILT TUBE
  • 23
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 24
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 25
    23-823507 BUSHING
    BUSHING
  • 26
    17-822480 PIN, Pivot (UPPER)
    PIN, Pivot (UPPER)
  • 27
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
