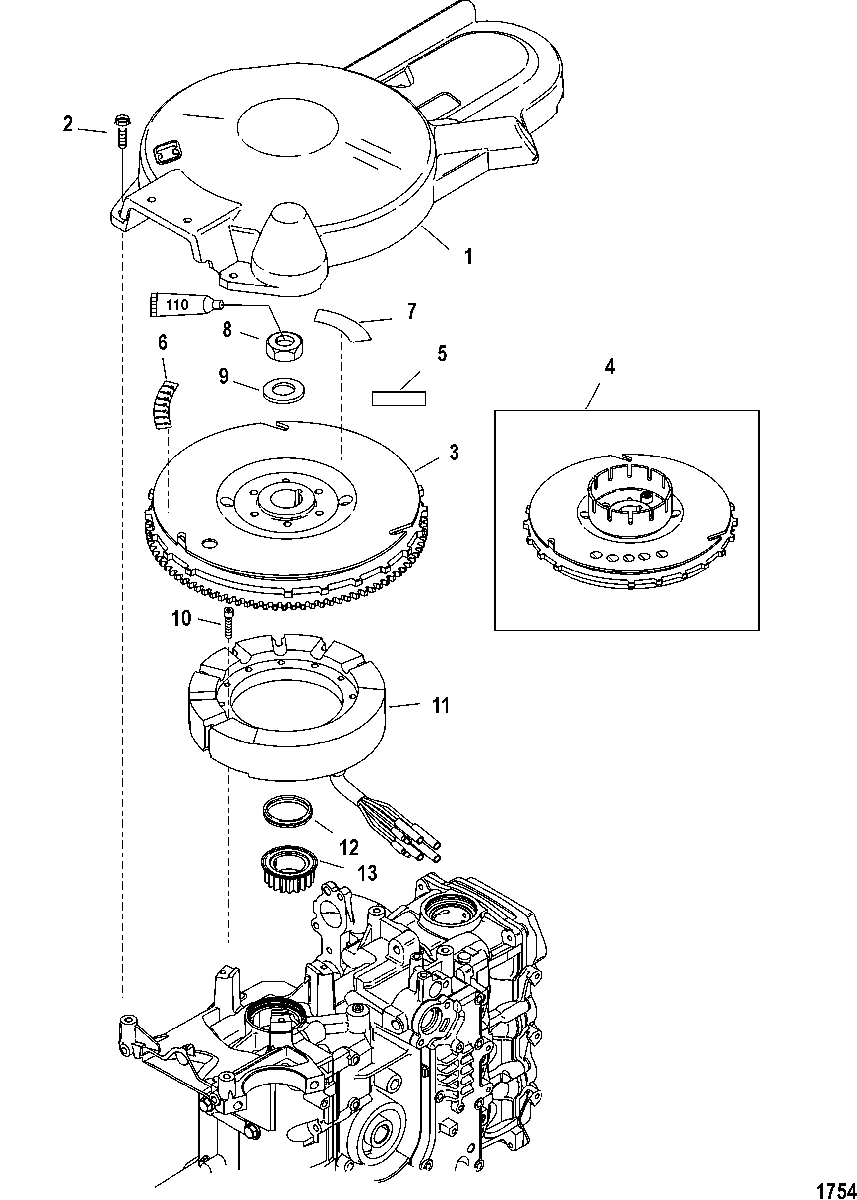

Flywheel для Mariner - 25 (4-STROKE) 0T409000 THRU 1B344298

  • №
    Артикул
    Название
  • 1
    859284T2 FLYWHEEL COVER
    (ELECTRIC)
    FLYWHEEL COVER
    (ELECTRIC)
  • 2
    10-8248326 SCREW, (M6 x 25 MM)
    (ELECTRIC)
    SCREW, (M6 x 25 MM)
    (ELECTRIC)
  • 3
    284-832010T32 FLYWHEEL
    (ELECTRIC)
    FLYWHEEL
    (ELECTRIC)
  • 4
    200-8M0118174 FLYWHEEL
    (MANUAL)
    FLYWHEEL
    (MANUAL)
  • 5
    NSS NOT SOLD SEPARATE, Decal-Warning-Spinning Flywheel
    NOT SOLD SEPARATE, Decal-Warning-Spinning Flywheel
  • 6
    NSS NOT SOLD SEPARATE, Decal-Timing Marks
    NOT SOLD SEPARATE, Decal-Timing Marks
  • 7
    NSS NOT SOLD SEPARATE, Decal-Warning-Neutral
    NOT SOLD SEPARATE, Decal-Warning-Neutral
  • 8
    11-893789 NUT
    NUT
  • 9
    12-893762 WASHER
    WASHER
  • 10
    10-4007325 SCREW, (M5 x 25)
    SCREW, (M5 x 25)
  • 10
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 11
    398-852386T6 STATOR
    (MANUAL)
    STATOR
    (MANUAL)
  • 11
    398-852387T7 STATOR
    (ELECTRIC)
    STATOR
    (ELECTRIC)
  • 12
    834838 LOAD RING
    LOAD RING
  • 13
    833102T GEAR, Drive
    GEAR, Drive
  • -
    61-854236T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
