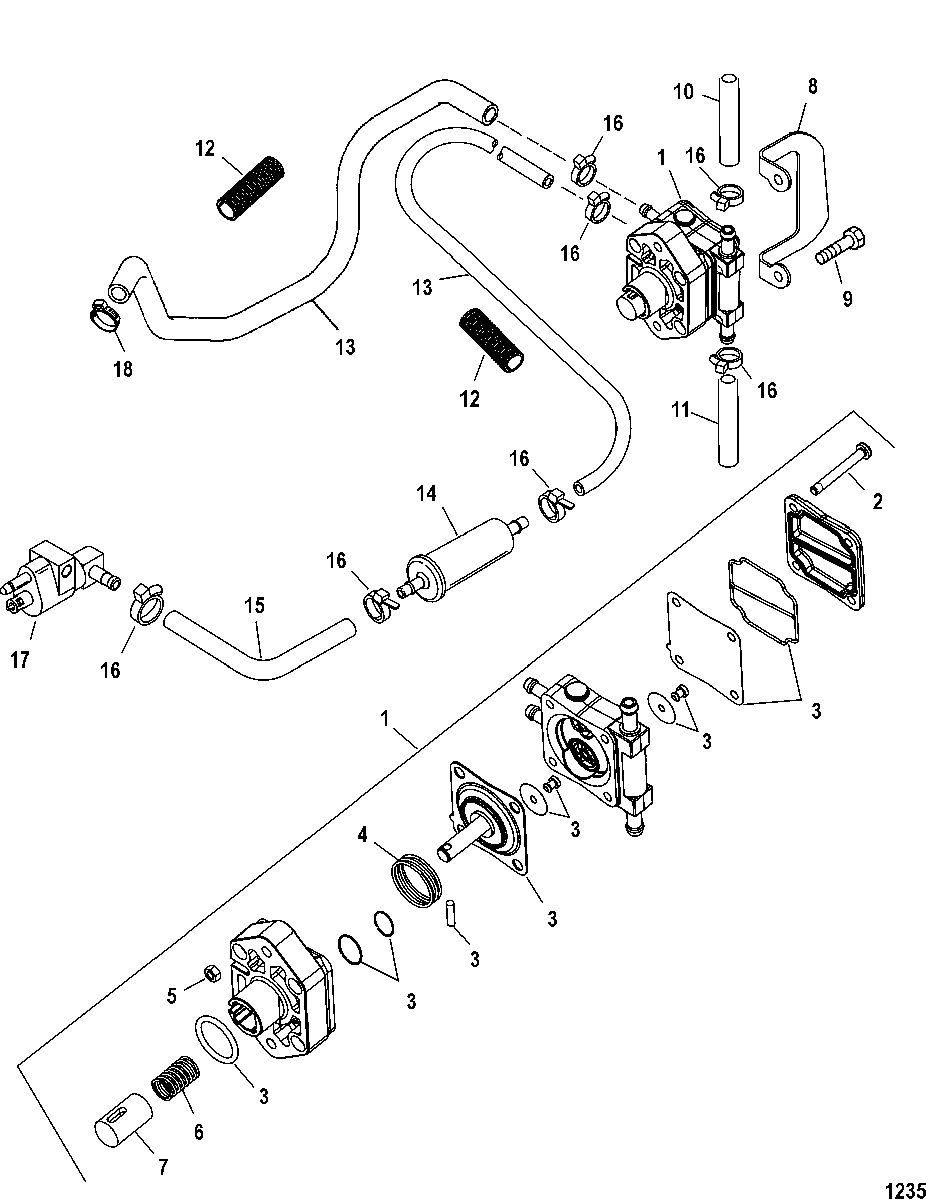

Fuel Pump для Mariner - 25 (4-STROKE) 0T409000 THRU 1B344298

  • №
    Артикул
    Название
  • 1
    8M0141844 PUMP, Fuel
    SN# USA-0T939654/BEL-0P301503 & Below
    PUMP, Fuel
    SN# USA-0T939654/BEL-0P301503 & Below
  • 1
    8M0141844 PUMP, Fuel
    SN# USA-0T939655/BEL-0P301504 & Up
    PUMP, Fuel
    SN# USA-0T939655/BEL-0P301504 & Up
  • 2
    10-883517 SCREW
    SCREW
  • 3
    883520A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    24-8835181 SPRING
    SPRING
  • 5
    11-883519 NUT
    NUT
  • 6
    24-883518A03 SPRING
    SN# USA-0T939654/BEL-0P301503 & Below
    SPRING
    SN# USA-0T939654/BEL-0P301503 & Below
  • 6
    24-883518A03 SPRING
    SN# USA-0T939655/BEL-0P301504 & Up
    SPRING
    SN# USA-0T939655/BEL-0P301504 & Up
  • 7
    24-883518A03 CAP
    SN# USA-0T939654/BEL-0P301503 & Below
    CAP
    SN# USA-0T939654/BEL-0P301503 & Below
  • 7
    NSS NOT SOLD SEPARATE, Cap
    SN# USA-0T939655/BEL-0P301504 & Up
    NOT SOLD SEPARATE, Cap
    SN# USA-0T939655/BEL-0P301504 & Up
  • 8
    8M0007776 DEFLECTOR, Cowl
    DEFLECTOR, Cowl
  • 9
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 10
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 13 Inches - To Block Exhaust Cover
    TUBING, (.312) (70.00 Inches Bulk), Cut to 13 Inches - To Block Exhaust Cover
  • 11
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 6 Inches - To Telltale
    TUBING, (.312) (70.00 Inches Bulk), Cut to 6 Inches - To Telltale
  • 12
    32-828547T1 CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (13 IN.)
    CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (13 IN.)
  • 13
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 19 Inches - to Float Bowl
    HOSE, (57.00 Inches Bulk), Cut to 19 Inches - to Float Bowl
  • 14
    35-877565T1 FILTER, Fuel
    FILTER, Fuel
  • 15
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 7 Inches
    HOSE, (57.00 Inches Bulk), Cut to 7 Inches
  • 16
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 17
    22-816856A5 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • -
    25-16524 O-RING, Fuel Connector
    O-RING, Fuel Connector
  • 18
    54-888441 CLAMP, Oetiker (12.8 mm)
    CLAMP, Oetiker (12.8 mm)
