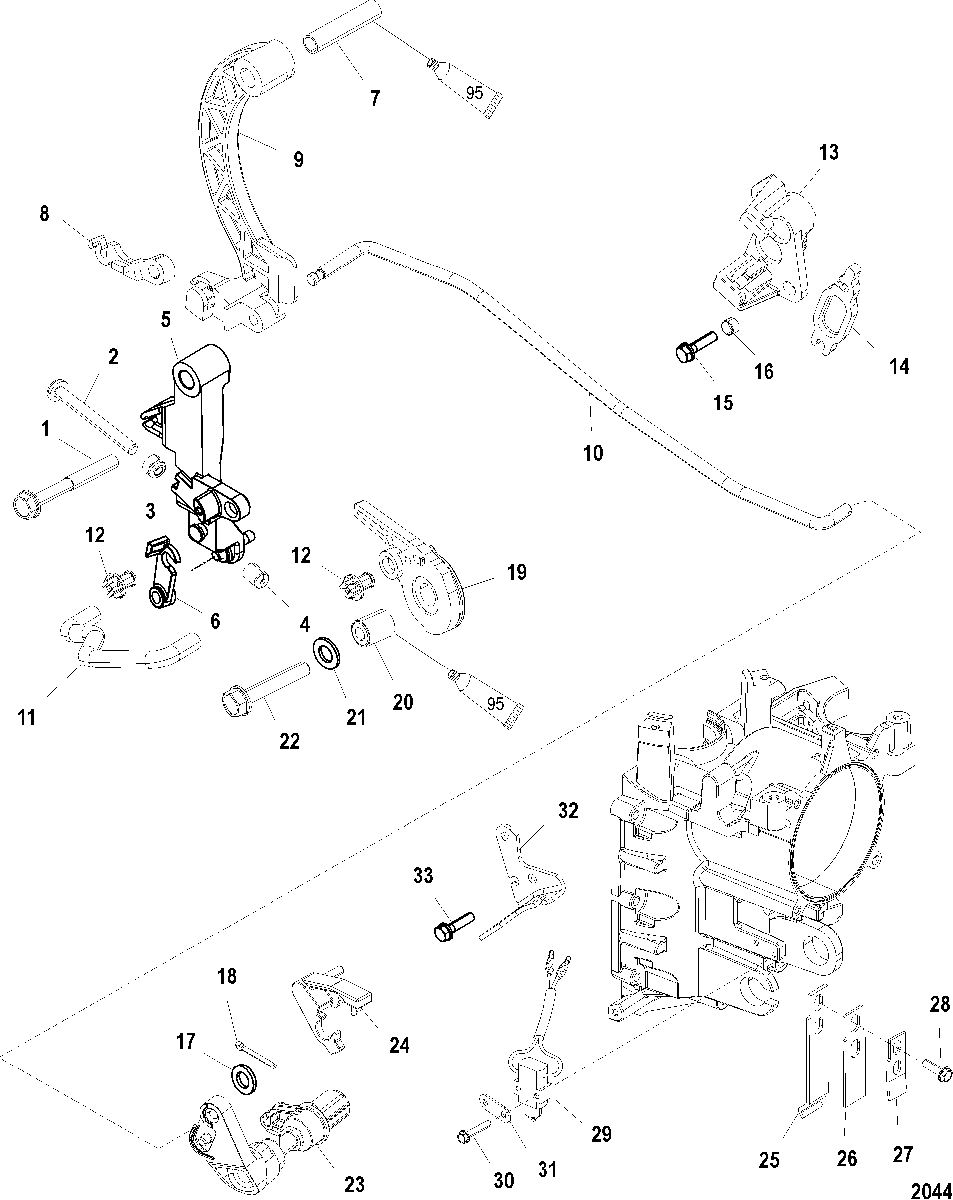

Linkage для Mariner - 25 (4-STROKE) 0P153500 THRU 0P388282

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    (ELECTRIC NON HANDLE)
    SCREW, (M8 x 70) Stainless Steel
    (ELECTRIC NON HANDLE)
  • 2
    10-8147763 SCREW, (M6 x 60)
    (ELECTRIC NON HANDLE)
    SCREW, (M6 x 60)
    (ELECTRIC NON HANDLE)
  • 3
    11-401196 NUT, (M6)
    (ELECTRIC NON HANDLE)
    NUT, (M6)
    (ELECTRIC NON HANDLE)
  • 4
    42942 CAP
    (ELECTRIC NON HANDLE)
    CAP
    (ELECTRIC NON HANDLE)
  • 5
    822682A4 LEVER ASSEMBLY, Throttle
    (ELECTRIC NON HANDLE)
    LEVER ASSEMBLY, Throttle
    (ELECTRIC NON HANDLE)
  • 6
    883160 RETAINER
    (ELECTRIC NON HANDLE)
    RETAINER
    (ELECTRIC NON HANDLE)
  • 7
    23-825078 BUSHING
    (ELECTRIC NON HANDLE)
    BUSHING
    (ELECTRIC NON HANDLE)
  • 8
    822459 RETAINER
    (ELECTRIC NON HANDLE)
    RETAINER
    (ELECTRIC NON HANDLE)
  • 9
    8259571 LEVER, Shift
    (ELECTRIC NON HANDLE)
    LEVER, Shift
    (ELECTRIC NON HANDLE)
  • 10
    882820 SHIFT ROD
    (ELECTRIC NON HANDLE)
    SHIFT ROD
    (ELECTRIC NON HANDLE)
  • 11
    830307 ROD, Throttle
    (ELECTRIC NON HANDLE)
    ROD, Throttle
    (ELECTRIC NON HANDLE)
  • 12
    23-932481 BUSHING
    (ELECTRIC NON HANDLE)
    BUSHING
    (ELECTRIC NON HANDLE)
  • 13
    827706A4 BRACKET
    (ELECTRIC NON HANDLE)
    BRACKET
    (ELECTRIC NON HANDLE)
  • 14
    98889 LATCH
    (ELECTRIC NON HANDLE)
    LATCH
    (ELECTRIC NON HANDLE)
  • 15
    10-8248324 SCREW, (M6 x 16)
    (ELECTRIC NON HANDLE)
    SCREW, (M6 x 16)
    (ELECTRIC NON HANDLE)
  • 16
    23-15885 SLEEVE
    (ELECTRIC NON HANDLE)
    SLEEVE
    (ELECTRIC NON HANDLE)
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    (ELECTRIC NON HANDLE)
    WASHER, (.281 x .500 x .060) Stainless Steel
    (ELECTRIC NON HANDLE)
  • 18
    18-210711 COTTER PIN
    (ELECTRIC NON HANDLE)
    COTTER PIN
    (ELECTRIC NON HANDLE)
  • 19
    830305 CAM, Throttle
    CAM, Throttle
  • 20
    23-822389 BUSHING
    BUSHING
  • 21
    12-4002316 WASHER
    WASHER
  • 22
    10-40011131 SCREW, (M6 x 35) Stainless Steel
    SCREW, (M6 x 35) Stainless Steel
  • 23
    826588A4 SHIFT SHAFT ASSEMBLY, Horizontal
    SHIFT SHAFT ASSEMBLY, Horizontal
  • 24
    8277071 RETAINER
    RETAINER
  • 25
    24-826077 SPRING, Detent
    SPRING, Detent
  • 26
    24-824993 SPRING, Backing
    SPRING, Backing
  • 27
    824994 SPRING, Plate
    SPRING, Plate
  • 28
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 29
    87-8M0052927 SWITCH
    (ELECTRIC HANDLE MODELS)
    SWITCH
    (ELECTRIC HANDLE MODELS)
  • 30
    10-88075020 SCREW, (M3 x 20)
    (ELECTRIC HANDLE MODELS)
    SCREW, (M3 x 20)
    (ELECTRIC HANDLE MODELS)
  • 31
    824923 PLATE
    (ELECTRIC HANDLE MODELS)
    PLATE
    (ELECTRIC HANDLE MODELS)
  • 32
    8214943 BRACKET
    (HANDLE MODELS)
    BRACKET
    (HANDLE MODELS)
  • 33
    10-8248324 SCREW, (M6 x 16)
    (HANDLE MODELS)
    SCREW, (M6 x 16)
    (HANDLE MODELS)
