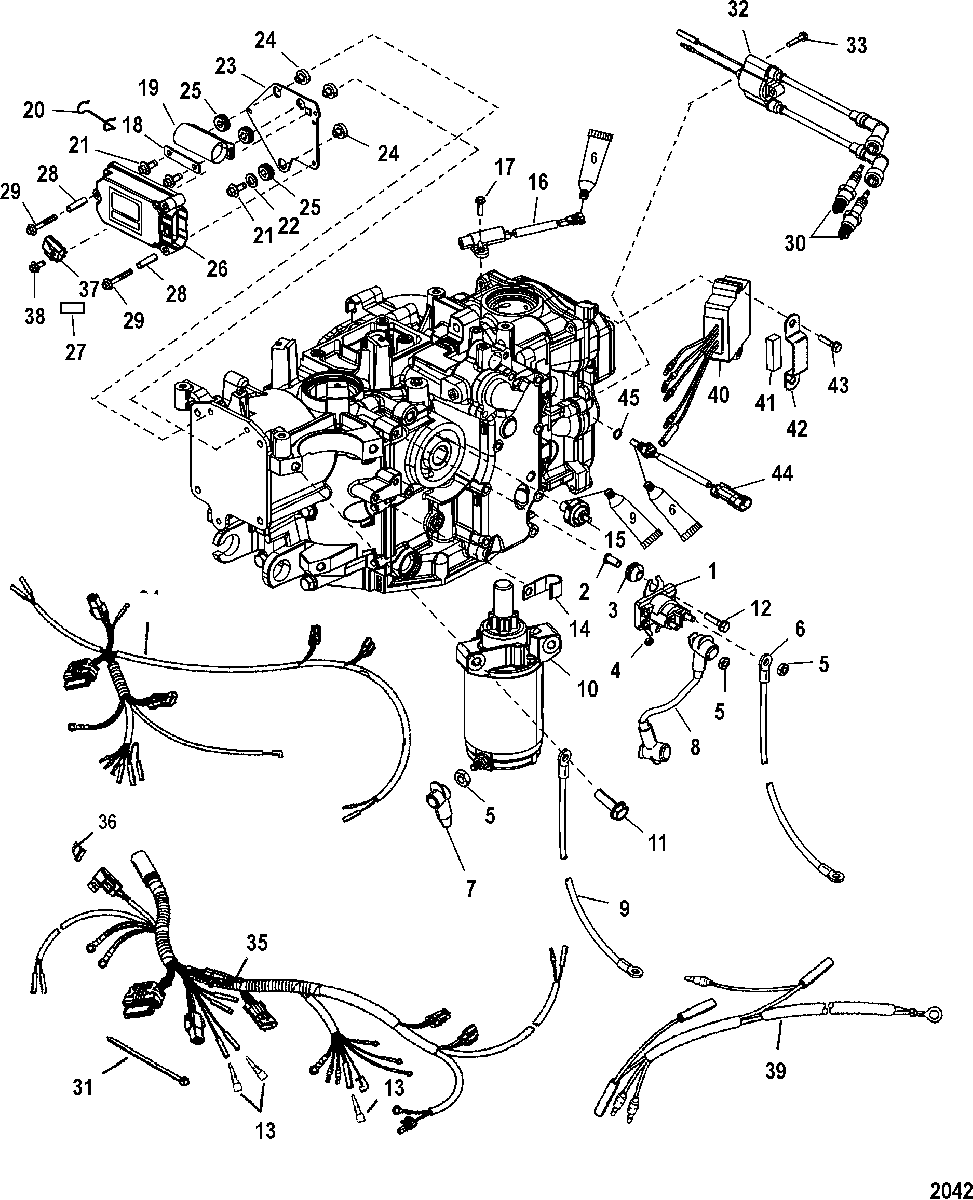

Electrical Components для Mariner - 25 (4-STROKE) 0P153500 THRU 0P388282

  • №
    Артикул
    Название
  • 1
    89-850187T1 SOLENOID ASSEMBLY (Electric)
    SOLENOID ASSEMBLY (Electric)
  • 2
    23-818968 BUSHING (Electric)
    BUSHING (Electric)
  • 3
    25-818967 GROMMET (Electric)
    GROMMET (Electric)
  • 4
    11-26419 NUT, (#8-32) Brass (Electric)
    NUT, (#8-32) Brass (Electric)
  • 5
    11-94330 NUT, (.250-20) Brass (Electric)
    NUT, (.250-20) Brass (Electric)
  • 6
    84-88439A9 CABLE ASSEMBLY, Battery - Positive (Electric)
    CABLE ASSEMBLY, Battery - Positive (Electric)
  • 7
    85-880786 BOOT, Insulator - Red (Electric)
    BOOT, Insulator - Red (Electric)
  • 8
    84-93388A16 CABLE ASSEMBLY, (8.50 Inches) (Electric)
    CABLE ASSEMBLY, (8.50 Inches) (Electric)
  • 9
    84-88439A4 CABLE ASSEMBLY, Battery - Negative (Electric)
    CABLE ASSEMBLY, Battery - Negative (Electric)
  • 10
    50-893886T STARTER MOTOR ASSEMBLY (Electric)
    SN# USA-0T800999/BEL-0P267999 & Below
    STARTER MOTOR ASSEMBLY (Electric)
    SN# USA-0T800999/BEL-0P267999 & Below
  • 10
    50-893886T STARTER MOTOR ASSEMBLY (Electric)
    SN# USA-0T801000/BEL-0P268000 THRU USA-1B226999/BEL-0P400999
    STARTER MOTOR ASSEMBLY (Electric)
    SN# USA-0T801000/BEL-0P268000 THRU USA-1B226999/BEL-0P400999
  • 10
    50-893886T STARTER MOTOR ASSEMBLY (Electric)
    SN# USA-1B227000 & Up
    STARTER MOTOR ASSEMBLY (Electric)
    SN# USA-1B227000 & Up
  • 11
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    (Electric)
    SCREW, (M8 x 45) Stainless Steel
    (Electric)
  • 11
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    (Manual)
    SCREW, (M8 x 25) Stainless Steel
    (Manual)
  • 12
    10-82684430 SCREW, (M6 x 30)
    (Electric)
    SCREW, (M6 x 30)
    (Electric)
  • 12
    10-8248324 SCREW, (M6 x 16)
    (Manual)
    SCREW, (M6 x 16)
    (Manual)
  • 13
    13541 PLUG, Male (Non Power Trim)
    PLUG, Male (Non Power Trim)
  • 14
    54-55098 J CLIP (Manual)
    J CLIP (Manual)
  • 15
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 16
    8M0082988 SENSOR
    SENSOR
  • 17
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 18
    856040 BRACKET (Electric)
    BRACKET (Electric)
  • 19
    856836001 RETAINER (Electric)
    SN# USA-0T979999/BEL-0P325499 & Below
    RETAINER (Electric)
    SN# USA-0T979999/BEL-0P325499 & Below
  • 19
    856836001 RETAINER (Electric)
    SN# USA-0T980000/BEL-0P325500 & Up
    RETAINER (Electric)
    SN# USA-0T980000/BEL-0P325500 & Up
  • 20
    92753 RETAINER (Electric)
    RETAINER (Electric)
  • 21
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 22
    12-4002316 WASHER
    WASHER
  • 23
    856837 PLATE
    PLATE
  • 24
    23-826618 BUSHING
    BUSHING
  • 25
    25-834985 GROMMET
    GROMMET
  • 26
    87843301S ECM, Engine Control Module
    ECM, Engine Control Module
  • 27
    37-881865 DECAL, Caution-Start in Gear
    DECAL, Caution-Start in Gear
  • 28
    23-8539201 BUSHING
    BUSHING
  • 29
    10-82129140 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 30
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 31
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 32
    339-859738T1 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 33
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 34
    84-859201T1 HARNESS ASSEMBLY, Engine Wiring (Manual)
    HARNESS ASSEMBLY, Engine Wiring (Manual)
  • 35
    84-859202T2 HARNESS ASSEMBLY, Engine Wiring (Electric)
    HARNESS ASSEMBLY, Engine Wiring (Electric)
  • 36
    88-812619 FUSE, Yellow - 20 Ampere (Electric)
    FUSE, Yellow - 20 Ampere (Electric)
  • 37
    828054 COVER, Fuse (Electric)
    COVER, Fuse (Electric)
  • 38
    10-82129110 SCREW, (M6 x 10) (Electric)
    SCREW, (M6 x 10) (Electric)
  • 39
    84-852375A6 HARNESS ASSEMBLY, Extension (Electric Handle)
    HARNESS ASSEMBLY, Extension (Electric Handle)
  • 40
    883071T1 REGULATOR, Voltage (Electric)
    REGULATOR, Voltage (Electric)
  • 41
    8308971 FOAM PAD (Electric)
    FOAM PAD (Electric)
  • 42
    893771 BRACKET (Electric)
    BRACKET (Electric)
  • 43
    10-8248329 SCREW, (M6 x 40) (Electric)
    SCREW, (M6 x 40) (Electric)
  • 44
    889575 SENSOR ASSEMBLY, Temperature
    SN# USA-0T979999/BEL-0P325499 & Below
    SENSOR ASSEMBLY, Temperature
    SN# USA-0T979999/BEL-0P325499 & Below
  • 44
    889575 SENSOR ASSEMBLY
    SN# USA-0T980000/BEL-0P325500 & Up
    SENSOR ASSEMBLY
    SN# USA-0T980000/BEL-0P325500 & Up
  • 45
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • -
    84-896539T50 HARNESS ASSEMBLY, Adaptor (8 to 14 Pin)
    HARNESS ASSEMBLY, Adaptor (8 to 14 Pin)
  • -
    54-633001 CLAMP, 14 Pin Connector to Flywheel Cover
    CLAMP, 14 Pin Connector to Flywheel Cover
  • -
    61-854236T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
