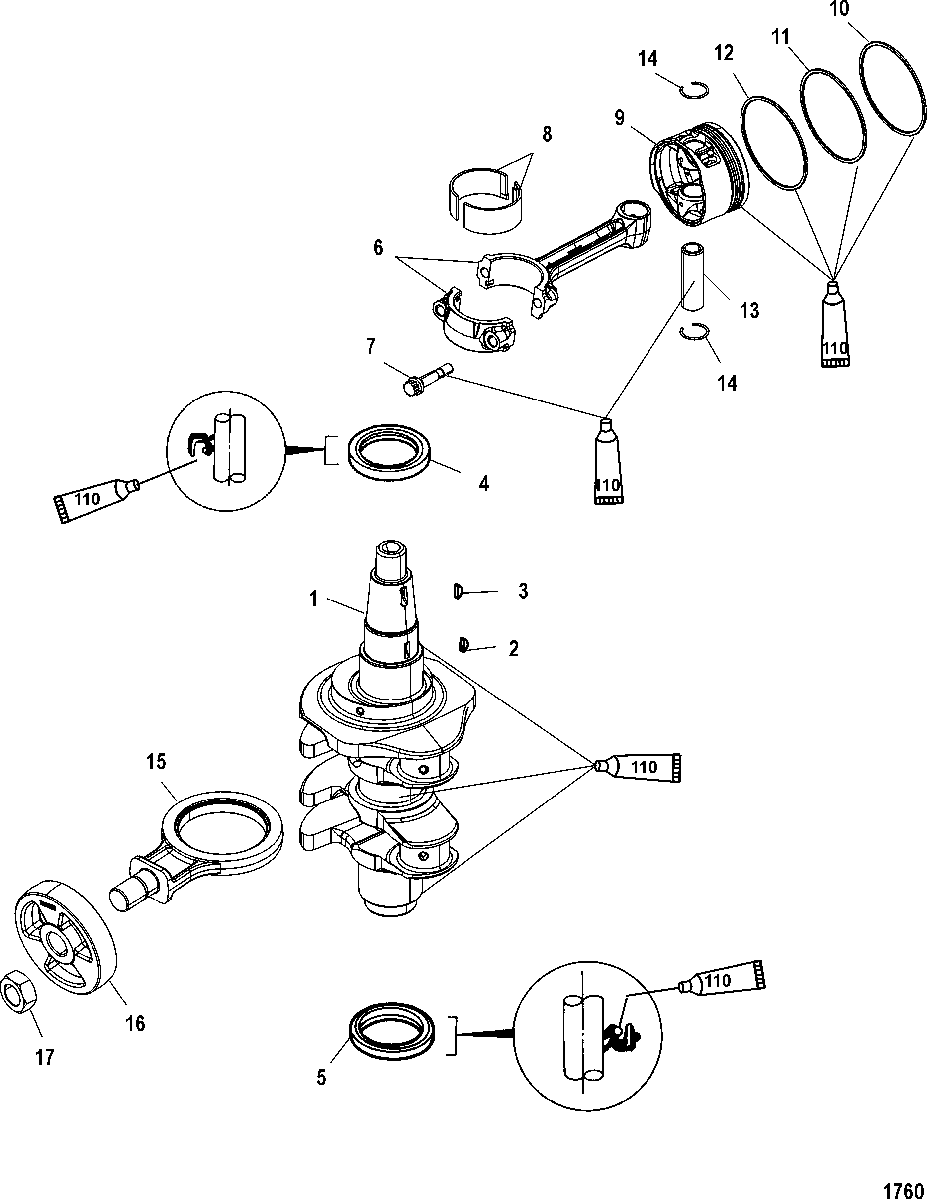

Crankshaft для Mariner - 25 (4-STROKE) 0P153500 THRU 0P388282

  • №
    Артикул
    Название
  • 1
    2400-8M0084517 CRANKSHAFT
    CRANKSHAFT
  • 2
    28-893761 KEY
    KEY
  • 3
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 4
    26-893949 SEAL
    SEAL
  • 5
    26-893948 SEAL
    SEAL
  • 6
    600-893530T01 CONNECTING ROD
    SN# USA-0T800999/BEL-0P267999 & Below
    CONNECTING ROD
    SN# USA-0T800999/BEL-0P267999 & Below
  • 6
    600-893530T01 CONNECTING ROD
    SN# USA-0T801000/BEL-0P268000 & Up
    CONNECTING ROD
    SN# USA-0T801000/BEL-0P268000 & Up
  • 7
    10-8M0049884 BOLT
    BOLT
  • 8
    23-893630 BEARING, Brown
    BEARING, Brown
  • 8
    23-893630001 BEARING, Black
    BEARING, Black
  • 8
    23-893630002 BEARING, Blue
    BEARING, Blue
  • 9
    700-893524T08 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 9
    700-8M0057775 PISTON
    (.25 Oversize)(Piston Only)
    PISTON
    (.25 Oversize)(Piston Only)
  • 9
    700-8M0057776 PISTON
    (.50 Oversize)(Piston Only)
    PISTON
    (.50 Oversize)(Piston Only)
  • 10
    39-893525A01 RING SET, Piston (TOP)
    (Standard)
    RING SET, Piston (TOP)
    (Standard)
  • 10
    39-893525A02 RING, Piston (TOP)
    (.25MM Oversize)
    RING, Piston (TOP)
    (.25MM Oversize)
  • 10
    39-893525A03 RING, Piston (TOP)
    (.50MM Oversize)
    RING, Piston (TOP)
    (.50MM Oversize)
  • 11
    NSS NOT SOLD SEPARATE, Piston Ring (2nd)
    (Standard)
    NOT SOLD SEPARATE, Piston Ring (2nd)
    (Standard)
  • 11
    NSS NOT SOLD SEPARATE, Piston Ring (2nd)
    (Oversize)
    NOT SOLD SEPARATE, Piston Ring (2nd)
    (Oversize)
  • 12
    39-893950 RING, Oil, Piston Oil Ring
    (Standard)
    RING, Oil, Piston Oil Ring
    (Standard)
  • 12
    NSS NOT SOLD SEPARATE, Piston Oil Ring
    (Oversize)
    NOT SOLD SEPARATE, Piston Oil Ring
    (Oversize)
  • 13
    41-893863 PIN, Piston
    PIN, Piston
  • 14
    40-893529 RETAINER
    RETAINER
  • 15
    652-831876A1 BALANCE ROD
    BALANCE ROD
  • 16
    701-831875T2 PISTON
    PISTON
  • 17
    11-893789 NUT
    NUT
  • -
    61-854236T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-830270A02 GASKET SET
    GASKET SET
