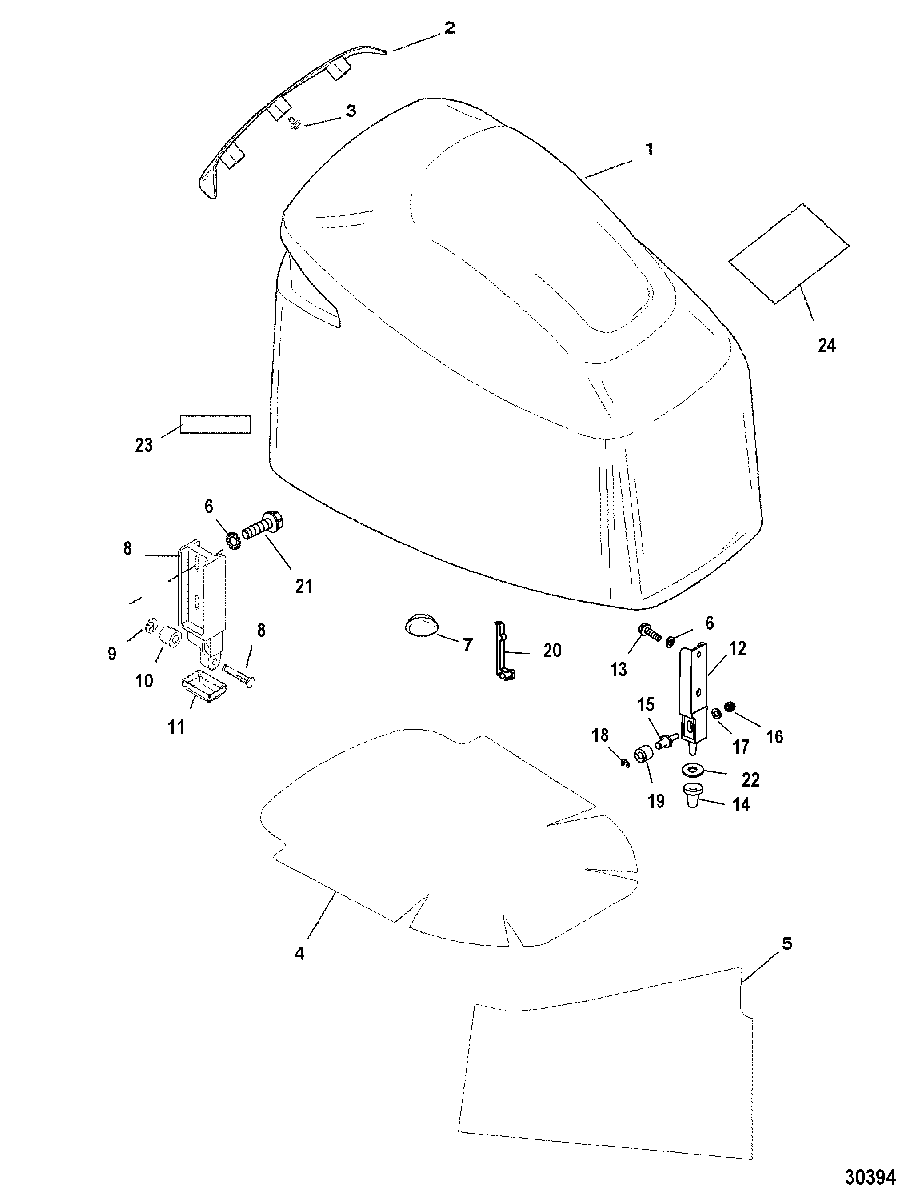

TOP COWL для Mariner - 225 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    112-850299T1 TOP COWL ASSEMBLY, Black
    TOP COWL ASSEMBLY, Black
  • 1
    112-850299T2 TOP COWL ASSEMBLY, Silver
    TOP COWL ASSEMBLY, Silver
  • 2
    850300F1 CAP
    CAP
  • 3
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 4
    854371A1 SOUND BLANKET, Top
    SOUND BLANKET, Top
  • 5
    NSS NOT SOLD SEPARATE, SOUND BLANKET, Side
    NOT SOLD SEPARATE, SOUND BLANKET, Side
  • 6
    13-93702 WASHER, (.250 External Star)
    WASHER, (.250 External Star)
  • 7
    19-823865 CAP PLUG
    CAP PLUG
  • 8
    850682A06 HOOK ASSEMBLY, Rear Latch
    HOOK ASSEMBLY, Rear Latch
  • 9
    53-8237951 RING, Retaining
    RING, Retaining
  • 10
    815263 ROLLER
    ROLLER
  • 11
    25-850685T02 GROMMET
    GROMMET
  • 12
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 13
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    815477 BUMPER, Latch
    BUMPER, Latch
  • 15
    8155381 PIN, Roll
    PIN, Roll
  • 16
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    53-8237951 RING, Retaining
    RING, Retaining
  • 19
    815263 ROLLER
    ROLLER
  • 20
    826639T COVER
    COVER
  • 21
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 22
    12-87161 WASHER
    WASHER
  • 23
    NSS NOT SOLD SEPARATE, DECAL, Counter Rotation
    (Left Hand)
    NOT SOLD SEPARATE, DECAL, Counter Rotation
    (Left Hand)
  • 23
    NSS NOT SOLD SEPARATE, DECAL, Counter Rotation
    (Right Hand)
    NOT SOLD SEPARATE, DECAL, Counter Rotation
    (Right Hand)
  • 24
    NSS NOT SOLD SEPARATE, DECAL, Break-in
    NOT SOLD SEPARATE, DECAL, Break-in
