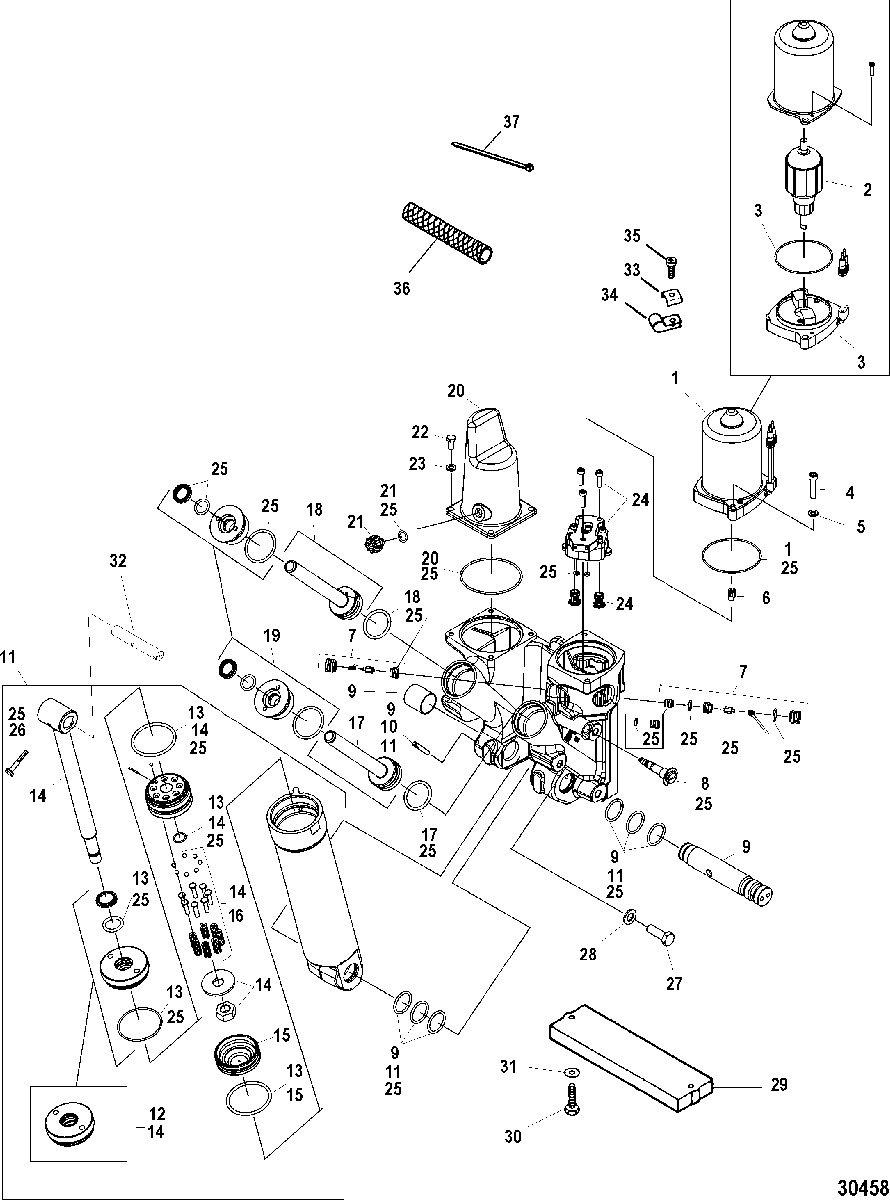

POWER TRIM COMPONENTS(CAST PUMP HOUSING) для Mariner - 225 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • -
    855998A11 POWER TRIM, Complete
    POWER TRIM, Complete
  • 1
    8M0031551 TRIM MOTOR
    TRIM MOTOR
  • 2
    NSS NOT SOLD SEPARATE, ARMATURE
    NOT SOLD SEPARATE, ARMATURE
  • 3
    NSS NOT SOLD SEPARATE, END FRAME
    NOT SOLD SEPARATE, END FRAME
  • 4
    10-82494830 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 5
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 6
    8M0090403 COUPLING
    COUPLING
  • 7
    878410A1 PO CHECK KIT
    PO CHECK KIT
  • 8
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 9
    878241A03 SHAFT KIT
    (Incls. Ref. #26)
    SHAFT KIT
    (Incls. Ref. #26)
  • 10
    17-878267 PIN
    PIN
  • 11
    898479A03 TILT CYLINDER ASSEMBLY
    TILT CYLINDER ASSEMBLY
  • 12
    8M0090322 GUIDE KIT
    (Incls. Ref. #26)
    GUIDE KIT
    (Incls. Ref. #26)
  • 13
    878409A1 O-RING KIT
    (Incls. Ref. #26)
    O-RING KIT
    (Incls. Ref. #26)
  • 14
    8M0090322 SHOCK ROD KIT
    (Incls. Ref. #26)
    SHOCK ROD KIT
    (Incls. Ref. #26)
  • 15
    878242A02 PISTON ASSEMBLY, Memory
    PISTON ASSEMBLY, Memory
  • 16
    8M0090322 REPAIR KIT, Check Valve
    (Incls. Ref. #26)
    REPAIR KIT, Check Valve
    (Incls. Ref. #26)
  • 17
    878414T01 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 18
    878413A1 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 19
    1100-8M0021648 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 20
    878264A1 RESERVOIR KIT
    RESERVOIR KIT
  • 21
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 22
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 23
    12-4002315 WASHER
    WASHER
  • 24
    892251A01 PUMP KIT
    PUMP KIT
  • 25
    878408A1 REPAIR KIT, Power Trim
    REPAIR KIT, Power Trim
  • 26
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 27
    10-858771 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 28
    12-4002319 WASHER
    WASHER
  • 29
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 30
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 31
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 32
    99625002 SHAFT
    SHAFT
  • 33
    8M0084613 C WASHER
    C WASHER
  • 34
    54-26550 CLAMP
    CLAMP
  • 35
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 36
    32-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
  • 37
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
