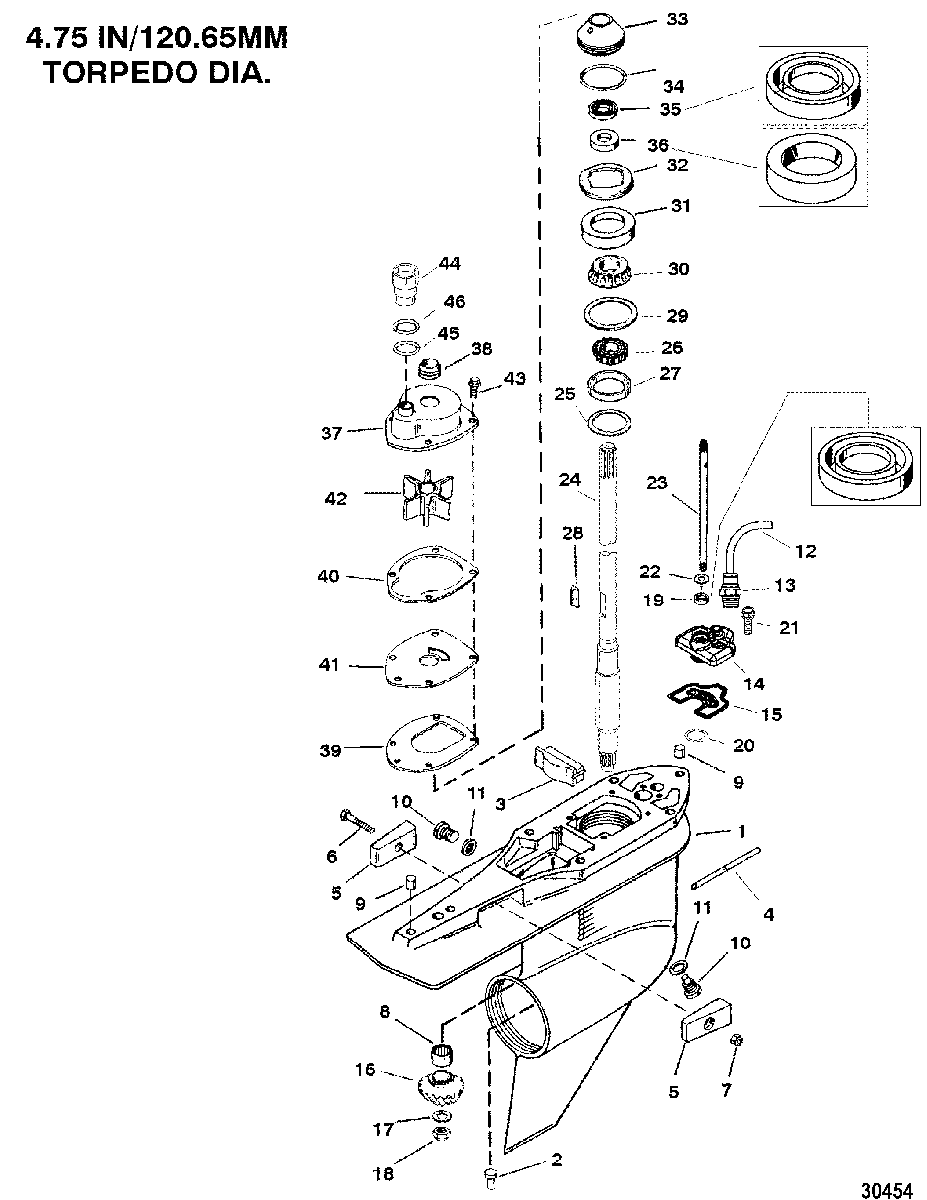

GEAR HOUSING(DRIVESHAFT)(STANDARD ROTATION) для Mariner - 225 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    1623-859399T18 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    17-379721 PIN
    PIN
  • 3
    821526001 FILLER BLOCK
    FILLER BLOCK
  • 4
    859402 PITOT TUBE
    PITOT TUBE
  • 5
    97-826134Q ANODE
    ANODE
  • 6
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 7
    11-401386 NUT, (M6)
    NUT, (M6)
  • 8
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 9
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 10
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 11
    12-191833 WASHER
    WASHER
  • 12
    32-85944975 TUBING, (72.00 Inches Bulk)
    (LONG - Cut to 7 inches)
    TUBING, (72.00 Inches Bulk)
    (LONG - Cut to 7 inches)
  • 12
    32-85944975 TUBING, (72.00 Inches Bulk)
    (X-LONG - Cut to 12 inches)
    TUBING, (72.00 Inches Bulk)
    (X-LONG - Cut to 12 inches)
  • 12
    32-85944975 TUBING, (72.00 Inches Bulk)
    (XX-LONG - Cut to 17 inches)
    TUBING, (72.00 Inches Bulk)
    (XX-LONG - Cut to 17 inches)
  • 13
    22-881866 FITTING
    FITTING
  • 14
    858934 COVER
    COVER
  • 15
    27-858935 GASKET
    GASKET
  • 16
    NSS NOT SOLD SEPARATE, PINION GEAR
    (1.75:1 - 12/21)(PART OF 43-859321A3)
    NOT SOLD SEPARATE, PINION GEAR
    (1.75:1 - 12/21)(PART OF 43-859321A3)
  • 17
    12-92721 WASHER
    WASHER
  • 18
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 19
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 20
    25-36318 O-RING, (.799)
    O-RING, (.799)
  • 21
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    12-77674 WASHER
    WASHER
  • 23
    824145 SHIFT SHAFT (LOWER)
    SHIFT SHAFT (LOWER)
  • 24
    45-881938 DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 24
    45-881942 DRIVESHAFT
    (X-LONG)
    DRIVESHAFT
    (X-LONG)
  • 24
    45-881943 DRIVESHAFT
    (XX-LONG)
    DRIVESHAFT
    (XX-LONG)
  • 25
    15-8M0063268 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 26
    31-48939A2 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 27
    NSS NOT SOLD SEPARATE, CUP
    NOT SOLD SEPARATE, CUP
  • 28
    28-8M0032833 KEY
    KEY
  • 29
    15-8M0063267 SHIM SET
    SHIM SET
  • 30
    31-36387A1 BEARING, Roller
    BEARING, Roller
  • 31
    NSS NOT SOLD SEPARATE, CUP
    NOT SOLD SEPARATE, CUP
  • 32
    8245191 RETAINER
    RETAINER
  • 33
    807929A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 34
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 35
    26-66302 SEAL, Oil
    SEAL, Oil
  • 36
    26-66302 SEAL, Oil
    SEAL, Oil
  • 37
    817275A1 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 38
    26-816575A2 SEAL KIT
    SEAL KIT
  • 39
    27-430331 GASKET
    GASKET
  • 40
    27-8172771 GASKET
    GASKET
  • 41
    8172761 FACEPLATE
    FACEPLATE
  • 42
    47-43026T2 IMPELLER
    IMPELLER
  • 43
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 44
    832942A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 45
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 46
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • -
    817275A5 REBUILD KIT, Water Pump
    REBUILD KIT, Water Pump
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    47-8M0100526 REPAIR KIT, Water Pump Impeller
    REPAIR KIT, Water Pump Impeller
