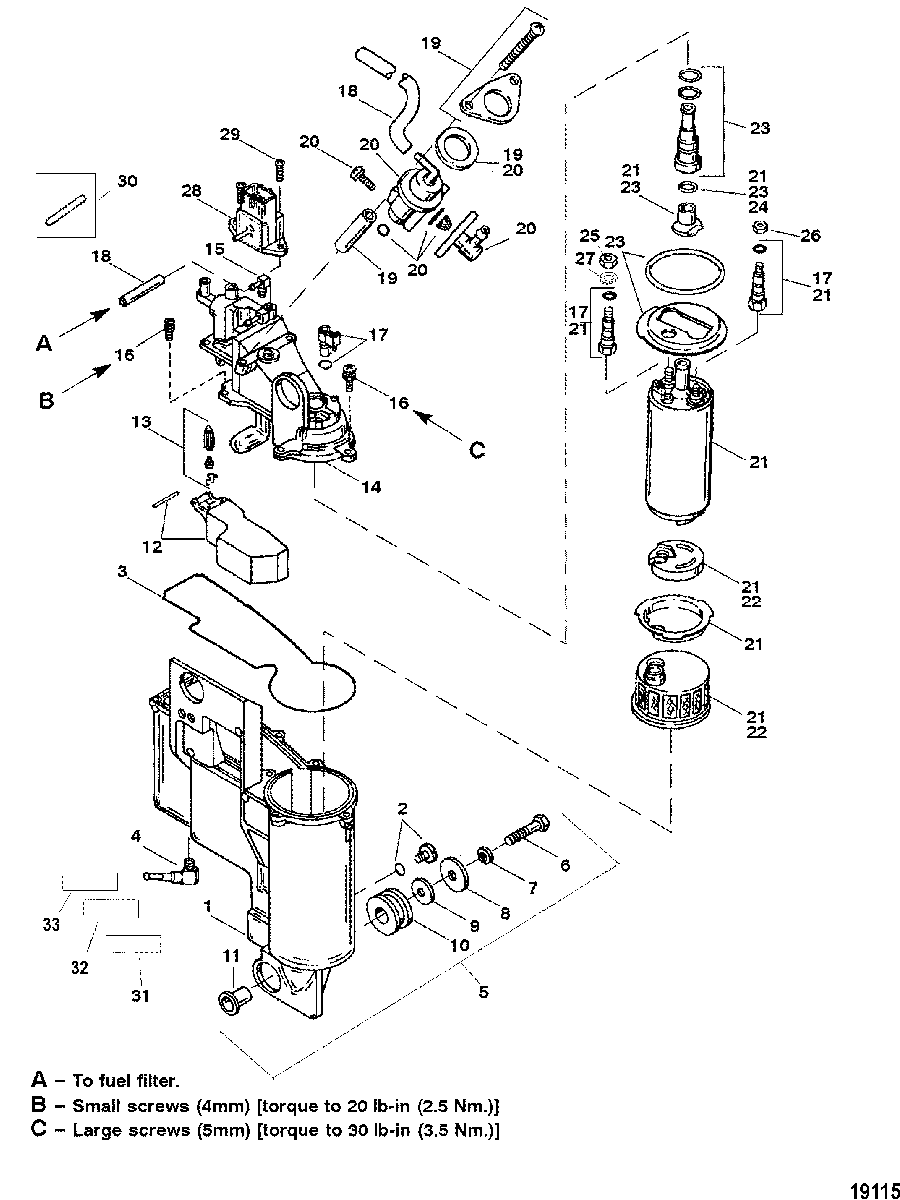

Vapor Seperator Components для Mariner - 225 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • -
    825818A14 MANAGEMENT ASSEMBLY, Fuel
    (250 - 4 Shutter)
    MANAGEMENT ASSEMBLY, Fuel
    (250 - 4 Shutter)
  • -
    825818A14 MANAGEMENT ASSEMBLY, Fuel
    (225 - 4 Shutter) SN# 0G960500 & Up
    MANAGEMENT ASSEMBLY, Fuel
    (225 - 4 Shutter) SN# 0G960500 & Up
  • -
    825818A12 MANAGEMENT ASSEMBLY, Fuel
    (225 - 2 Shutter) SN# 0G960499 & Below
    MANAGEMENT ASSEMBLY, Fuel
    (225 - 2 Shutter) SN# 0G960499 & Below
  • 1
    8140111 BODY KIT
    BODY KIT
  • 2
    10-809091 SCREW KIT
    SCREW KIT
  • 3
    809086 O-RING
    O-RING
  • 4
    21-424811 VALVE
    VALVE
  • 5
    809092 SCREW KIT, Mounting
    SCREW KIT, Mounting
  • 6
    10-809061 BOLT
    BOLT
  • 7
    13-400256 LOCKWASHER
    LOCKWASHER
  • 8
    12-8090621 WASHER
    WASHER
  • 9
    12-8090622 WASHER
    WASHER
  • 10
    25-88033 GROMMET
    GROMMET
  • 11
    23-809078 COLLAR
    COLLAR
  • 12
    15445 FLOAT KIT
    FLOAT KIT
  • 13
    15446 VALVE KIT, Float
    VALVE KIT, Float
  • 14
    8140101 COVER
    COVER
  • 15
    22-809085 ELBOW KIT
    ELBOW KIT
  • 16
    10-8140761 SCREW KIT
    SCREW KIT
  • 17
    809090 CONNECTION KIT, Electrical
    CONNECTION KIT, Electrical
  • 18
    32-897992A01 TUBING KIT
    TUBING KIT
  • 19
    809087 ATTACHING KIT
    ATTACHING KIT
  • 20
    814012T1 REGULATOR KIT, Fuel Pressure
    REGULATOR KIT, Fuel Pressure
  • 21
    808505T01 PUMP KIT, Fuel
    PUMP KIT, Fuel
  • 22
    808504T1 STRAINER KIT
    STRAINER KIT
  • 23
    809089 FITTING KIT, Fuel Pump
    FITTING KIT, Fuel Pump
  • 24
    150291 O-RING KIT
    O-RING KIT
  • 25
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 26
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 27
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 28
    825762 SENSOR, MAP
    SENSOR, MAP
  • 29
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 30
    22-15026 CAP
    CAP
  • 31
    37-856985A12 DECAL, EPA Label Information
    (1999)
    DECAL, EPA Label Information
    (1999)
  • 31
    37-804670A00 DECAL, EPA Label Information
    (2000)
    DECAL, EPA Label Information
    (2000)
  • 31
    37-804670A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 32
    NSS NOT SOLD SEPARATE, Decal-Caustion In-Gear Idle
    NOT SOLD SEPARATE, Decal-Caustion In-Gear Idle
  • 33
    37-881865 DECAL, Caution, Start In Gear
    DECAL, Caution, Start In Gear
