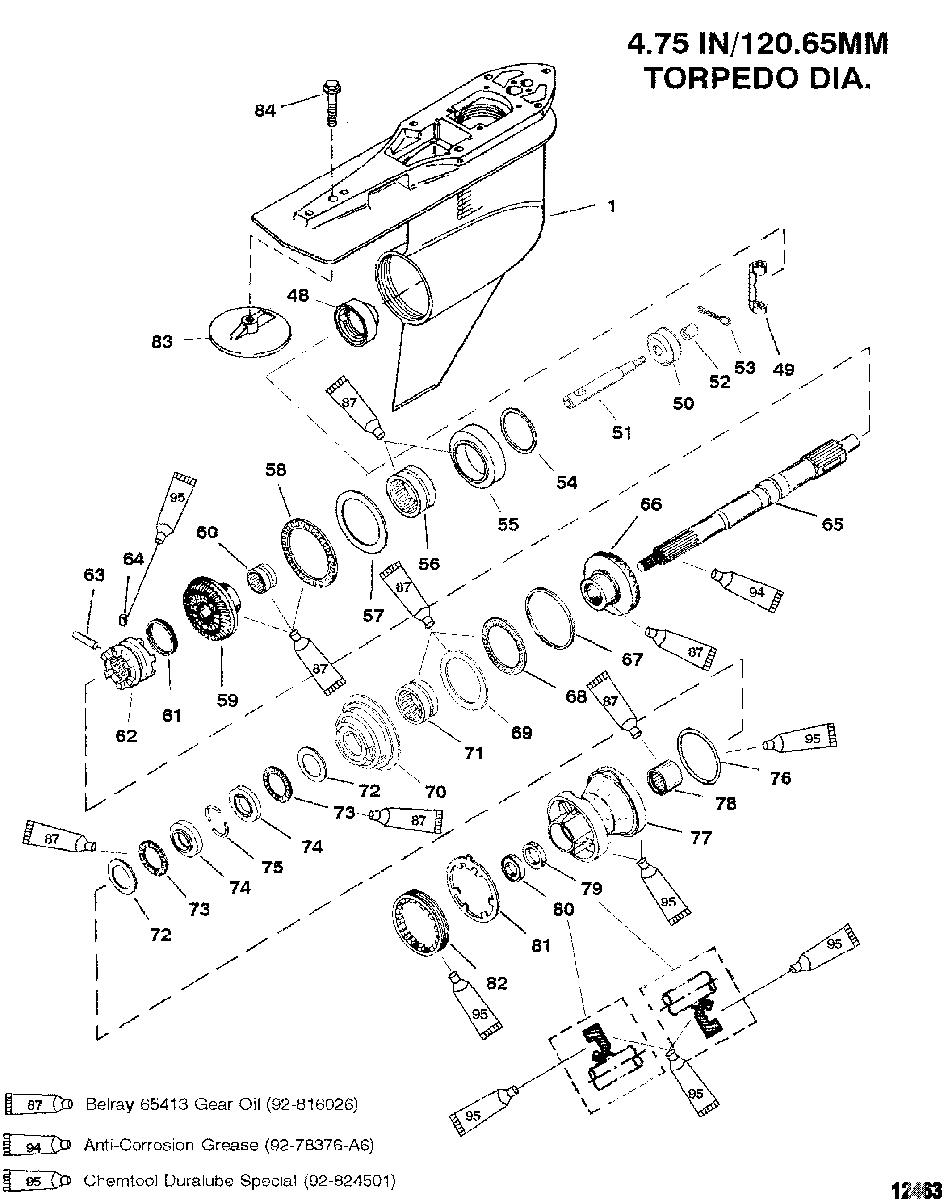

Gear Hsg(Propshaft)(C/R)(S/N-0G960500 & Up) для Mariner - 225 (3.0L EFI) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
11623-859399T18 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
4822-859403 PLUGPLUG
-
49823903 SHIFT CRANKSHIFT CRANK
-
5019755T7 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
51NSS NOT SOLD SEPARATE, SpoolNOT SOLD SEPARATE, Spool
-
52NSS NOT SOLD SEPARATE, SleeveNOT SOLD SEPARATE, Sleeve
-
5318-469501 COTTER PINCOTTER PIN
-
5415-8M0063266 SHIM SETSHIM SET
-
55828830A2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
5631-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
5712-815481 THRUST WASHERTHRUST WASHER
-
5831-815480 BEARING, ThrustBEARING, Thrust
-
5943-828696T2 GEAR, Reverse (12/21) (1.75:1)GEAR, Reverse (12/21) (1.75:1)
-
6031-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
6124-30893 SPRINGSPRING
-
6252-859340T CLUTCHCLUTCH
-
6317-8M0100263 PIN, CrossPIN, Cross
-
6417-828356 PIN, DetentPIN, Detent
-
6544-8M0140448 PROPELLER SHAFTPROPELLER SHAFT
-
6643-828695A1 GEAR SET, Forward/Pinion (12/21) (1.75:1)GEAR SET, Forward/Pinion (12/21) (1.75:1)
-
6723-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
6723-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
6723-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
6723-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
6723-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
6723-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
6723-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
6723-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
6723-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
6723-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
6723-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
6723-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
6723-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
-
6831-815480 BEARING, ThrustBEARING, Thrust
-
6912-815481 THRUST WASHERTHRUST WASHER
-
70828831A3 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
7131-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
7212-18448 THRUST WASHERTHRUST WASHER
-
7331-15842 BEARING, ThrustBEARING, Thrust
-
748182911 RACE, ThrustRACE, Thrust
-
75814605 KEEPERKEEPER
-
7625-31534 O-RINGO-RING
-
77818290T8 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7831-30956T BEARING, NeedleBEARING, Needle
-
7926-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
8026-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
8114-18323 TAB WASHERTAB WASHER
-
828M2000347 RETAINERRETAINER
-
8397-76214Q5 ANODE KITANODE KIT
-
8410-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
-26-816575A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
