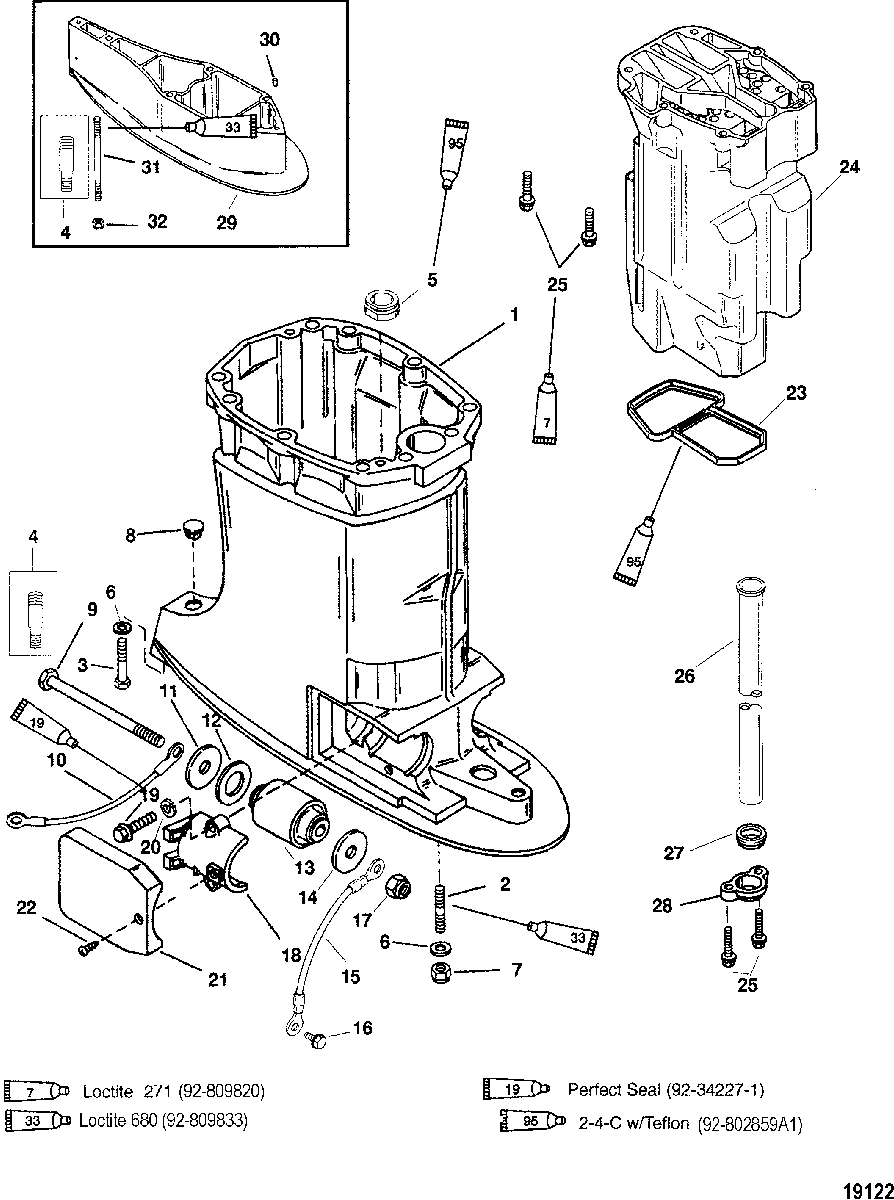

Driveshaft Housing and Exhaust Tube для Mariner - 225 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    3518-832937A06 HOUSING ASSEMBLY, Driveshaft
    (LONG)
    HOUSING ASSEMBLY, Driveshaft
    (LONG)
  • 1
    3519-832938A06 HOUSING ASSEMBLY, Driveshaft
    (X/XX-LONG)
    HOUSING ASSEMBLY, Driveshaft
    (X/XX-LONG)
  • 2
    16-8M0070951 STUD, (M12 x 52)
    (LONG/X-LONG)
    STUD, (M12 x 52)
    (LONG/X-LONG)
  • 3
    10-82130130 SCREW, (M10 x 30)
    (LONG/X-LONG) SN# 0G871322 & Below
    SCREW, (M10 x 30)
    (LONG/X-LONG) SN# 0G871322 & Below
  • 3
    10-857136 SCREW, (M12 x 35)
    (LONG/X-LONG) SN# 0G871323 & Up
    SCREW, (M12 x 35)
    (LONG/X-LONG) SN# 0G871323 & Up
  • 4
    16-8M0036404 STEPPED STUD (54MM X 10/12)
    STEPPED STUD (54MM X 10/12)
  • 4
    16-858570 STEPPED STUD (175MM X 10/12)
    STEPPED STUD (175MM X 10/12)
  • 5
    25-8331231 GROMMET
    GROMMET
  • 6
    12-856982 WASHER, (.500 x .810 x .090) Stainless Steel
    WASHER, (.500 x .810 x .090) Stainless Steel
  • 7
    11-896895 NUT, (M12 x 1.75)
    NUT, (M12 x 1.75)
  • 8
    19-64649 PLUG
    PLUG
  • 9
    10-898834 SCREW, (M14 x 178)
    SCREW, (M14 x 178)
  • 10
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 11
    12-815432 WASHER, (.562 x 2.00 x .125)
    WASHER, (.562 x 2.00 x .125)
  • 12
    12-8154331 WASHER, (1.25 x 2.00 x .19)
    WASHER, (1.25 x 2.00 x .19)
  • 13
    8137711 MOUNT
    MOUNT
  • 14
    12-825190 WASHER
    WASHER
  • 15
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 16
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 17
    11-896602 NUT
    NUT
  • 18
    879150A90 CLAMP
    CLAMP
  • 19
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 20
    13-72521 LOCKWASHER, Internal Tooth
    LOCKWASHER, Internal Tooth
  • 21
    879150A90 COVER, Black
    (BLACK)
    COVER, Black
    (BLACK)
  • 22
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 23
    8329321 SEAL
    SEAL
  • 24
    833116A7 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • -
    NSS NOT SOLD SEPARATE, Strainer
    NOT SOLD SEPARATE, Strainer
  • 25
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 26
    32-8M0042785 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 26
    32-8M0042786 TUBE, Water
    (X-LONG)
    TUBE, Water
    (X-LONG)
  • 26
    32-8M0042787 TUBE, Water
    (XX-LONG)
    TUBE, Water
    (XX-LONG)
  • 27
    832940001 SEAL
    SEAL
  • 28
    8329391 CLAMP
    CLAMP
  • 29
    8M0105088 SPACER
    (BLACK)(XX-LONG)
    SPACER
    (BLACK)(XX-LONG)
  • 30
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    (XX-LONG)
    PIN, Dowel - Without Hole (.375 x .625)
    (XX-LONG)
  • 31
    16-8M0008047 STUD, (M12 x 179)
    (XX-LONG)
    STUD, (M12 x 179)
    (XX-LONG)
  • 31
    16-824118 STUD (M10 X 1.5 X 173)
    (XX-LONG)
    STUD (M10 X 1.5 X 173)
    (XX-LONG)
  • 32
    11-400636 NUT (M10 X 1.5)
    (XX-LONG)
    NUT (M10 X 1.5)
    (XX-LONG)
