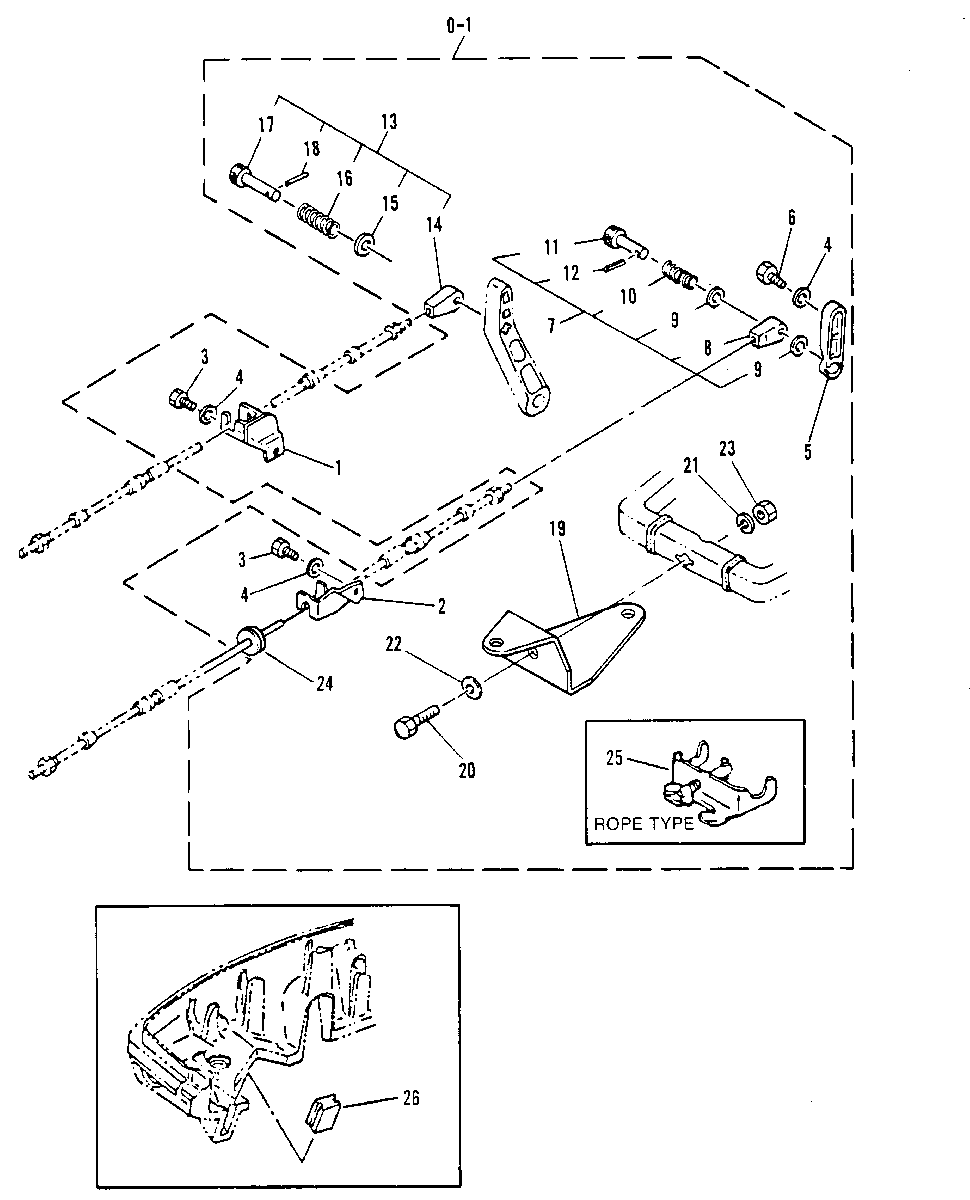

REMOTE CONTROL ATTACHING KIT для Mariner - 20C (THRU PROP. EXHAUST) 6A9-250101 THRU 250819
-
№АртикулНазвание
-
0-143991A1 ATTACHING KIT, BALL POST TYPEATTACHING KIT, BALL POST TYPE
-
184221M BRACKET, GEAR SHIFTBRACKET, GEAR SHIFT
-
283717M BRACKET, THROTTLEBRACKET, THROTTLE
-
310-826957M BOLTBOLT
-
412-82214M WASHERWASHER
-
584222M THROTTLE LEVERTHROTTLE LEVER
-
610-91772M BOLTBOLT
-
783933M CANLE END ASS'Y, THROTTLECANLE END ASS'Y, THROTTLE
-
883934M CABLE ENDCABLE END
-
912-82216M WASHERWASHER
-
1024-83725M SPRINGSPRING
-
1117-814499M HOOKHOOK
-
1217-82146M PIN, ROLLPIN, ROLL
-
1383719M CABLE END ASS'Y, SHIFTCABLE END ASS'Y, SHIFT
-
1483720M CABLE ENDCABLE END
-
1512-82216M WASHERWASHER
-
1624-83721M SPRINGSPRING
-
1717-814499M HOOKHOOK
-
1817-82146M PIN, ROLLPIN, ROLL
-
1991635M BRACKET, STEEERING (BALL POST TYPE)BRACKET, STEEERING (BALL POST TYPE)
-
2010-91636M BOLT
SERIAL 00008216-09999999BOLT
SERIAL 00008216-09999999 -
2010-91636M BOL
SERIAL 00000000-00008215BOL
SERIAL 00000000-00008215 -
2113-82218M WASHER,LOCKWASHER,LOCK
-
2212-82220M WASHERWASHER
-
2311-81785M LOCKNUT
SERIAL 00002351-09999999LOCKNUT
SERIAL 00002351-09999999 -
2311-82395M NUT
SERIAL 00000000-00002350NUT
SERIAL 00000000-00002350 -
2425-97031M GROMMET
SERIAL 00008216-09999999GROMMET
SERIAL 00008216-09999999 -
2583727M STEERING HOOK ASS'Y, (ROPE TYPE)
SERIAL 00008216-09999999STEERING HOOK ASS'Y, (ROPE TYPE)
SERIAL 00008216-09999999 -
2625-83728M GROMMET, (OPTIONAL)
SERIAL 00008216-09999999GROMMET, (OPTIONAL)
SERIAL 00008216-09999999
