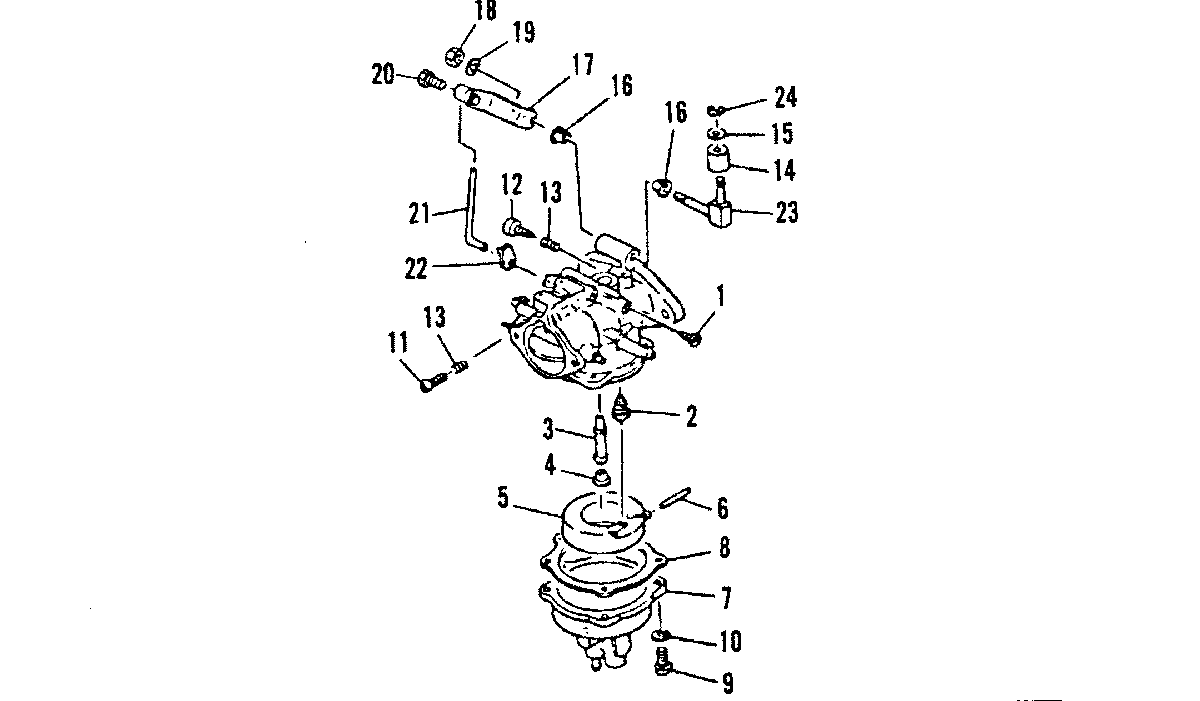

CARBURETOR для Mariner - 20C (THRU PROP. EXHAUST) 6A9-250101 THRU 250819

  • №
    Артикул
    Название
  • 0-1
    1383-9515M CARBURETOR ASS'Y
    CARBURETOR ASS'Y
  • 1
    41886M JET, LOW SPEED(#62)
    SERIAL 00002351-09999999
    JET, LOW SPEED(#62)
    SERIAL 00002351-09999999
  • 1
    80578M JET, LOW SPEED (#60)
    SERIAL 00000000-00002350
    JET, LOW SPEED (#60)
    SERIAL 00000000-00002350
  • 2
    80593M INLET VALVE AND SEAT
    INLET VALVE AND SEAT
  • 3
    96377M NOZZLE, MAIN
    NOZZLE, MAIN
  • 4
    41887M JET, MAIN (#133)
    SERIAL 00002351-09999999
    JET, MAIN (#133)
    SERIAL 00002351-09999999
  • 4
    84689M JET, MIAN (#130)
    SERIAL 00000000-00002350
    JET, MIAN (#130)
    SERIAL 00000000-00002350
  • 5
    80591M FLOAT
    FLOAT
  • 6
    17-11794M PIN, FLOAT
    PIN, FLOAT
  • 7
    83200M FLOAT BOWL
    SERIAL 00002351-09999999
    FLOAT BOWL
    SERIAL 00002351-09999999
  • 7
    84764M FLOAT BOWL
    SERIAL 00000000-00002350
    FLOAT BOWL
    SERIAL 00000000-00002350
  • #8
    27-80590M GASKET, FLOAT BOWL
    GASKET, FLOAT BOWL
  • 9
    10-82515M SCREW
    SCREW
  • 10
    13-82206M WASHER, LOCK
    WASHER, LOCK
  • 11
    10-83509M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 12
    10-80573M SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 13
    24-814460M SPRING
    SPRING
  • 14
    23-84454M BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 15
    12-82209M WASHER
    WASHER
  • 16
    23-81941M BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 17
    80622M LEVER, THROTTLE
    LEVER, THROTTLE
  • 18
    11-83763M NUT
    NUT
  • 19
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 20
    10-83112M SET SCREW, THROTTLE LEVER
    SERIAL 00002351-09999999
    SET SCREW, THROTTLE LEVER
    SERIAL 00002351-09999999
  • 20
    10-83112M SET SCREW, THROTTLE LEVER
    SERIAL 00000000-00002350
    SET SCREW, THROTTLE LEVER
    SERIAL 00000000-00002350
  • 21
    83160M LINK ROD T HROTTLE LEVER
    LINK ROD T HROTTLE LEVER
  • 22
    16333 JOINT
    JOINT
  • 23
    811037M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 24
    92-823287 SNAP RING
    SNAP RING
  • 24
    811038M REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS
    REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS
