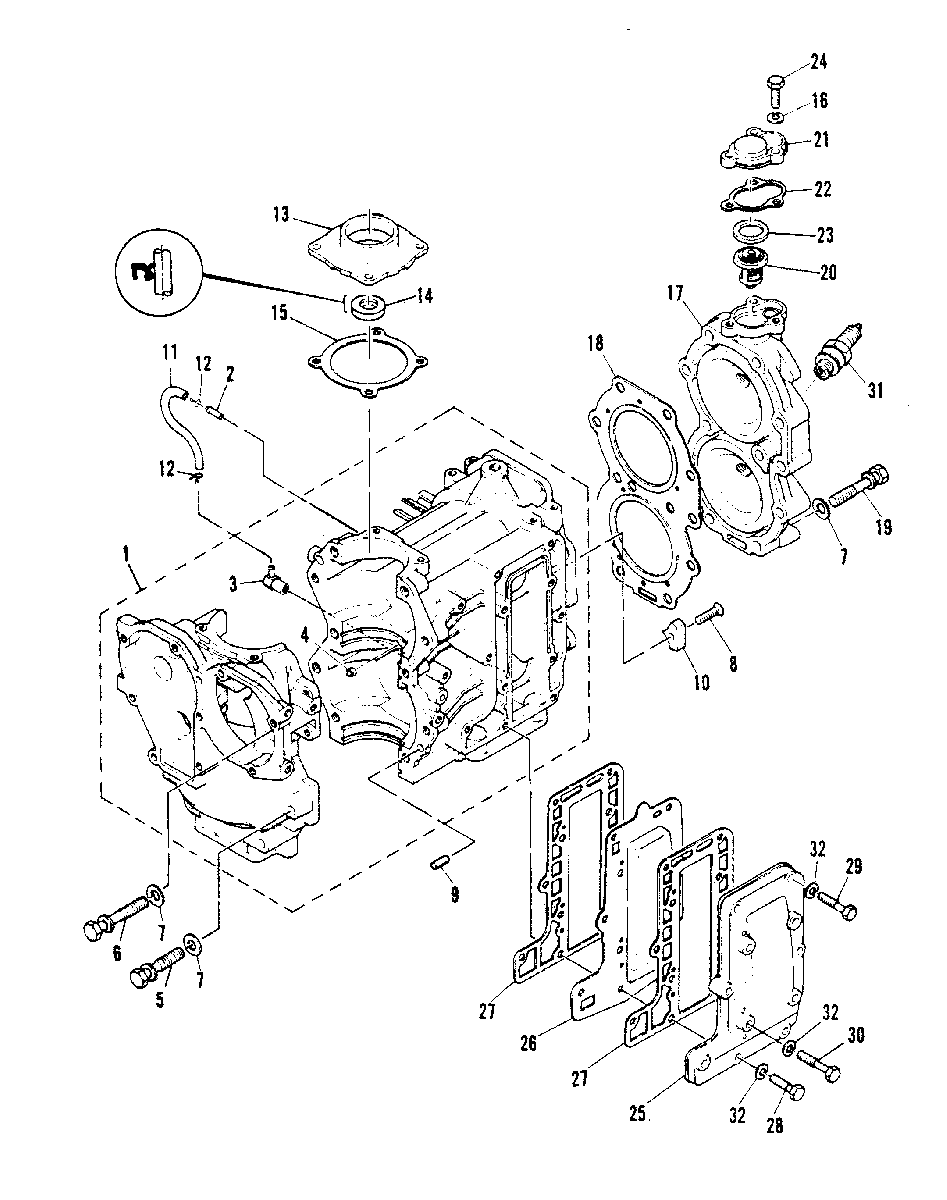

CRANKCASE AND CYLINDER HEAD для Mariner - 20C (THRU PROP. EXHAUST) 6A9-250101 THRU 250819

  • №
    Артикул
    Название
  • 1
    870-9359M CRANKCASE ASS'Y
    CRANKCASE ASS'Y
  • 2
    22-80122M FITTING, CRANKCASE DRAIN
    FITTING, CRANKCASE DRAIN
  • 3
    21-80727M CHECK VALVE ASS'Y
    CHECK VALVE ASS'Y
  • 4
    21-80107M (#21-80107M)
    (#21-80107M)
  • 5
    10-8M0101617 BOLT W/WASHER
    SERIAL 00005811-09999999
    BOLT W/WASHER
    SERIAL 00005811-09999999
  • 5
    10-82408M BOLT
    SERIAL 00000000-00005810
    BOLT
    SERIAL 00000000-00005810
  • 6
    10-41885M BOLT W/WASHER
    SERIAL 00005811-09999999
    BOLT W/WASHER
    SERIAL 00005811-09999999
  • 6
    10-82406M BOLT
    SERIAL 00000000-00005810
    BOLT
    SERIAL 00000000-00005810
  • 7
    12-80564M WASHER
    SERIAL 00000000-00005810
    WASHER
    SERIAL 00000000-00005810
  • 8
    10-95209M SCREW
    SERIAL 00008216-09999999
    SCREW
    SERIAL 00008216-09999999
  • 8
    10-95209M SCREW
    SERIAL 00000000-00008215
    SCREW
    SERIAL 00000000-00008215
  • 9
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 10
    97-84732M ANODE
    ANODE
  • 11
    32-811045M HOSE
    HOSE
  • 12
    54-82046M CLAMP, HOSE
    CLAMP, HOSE
  • 13
    81564M HOUSING, OIL SEAL (UPPER)
    HOUSING, OIL SEAL (UPPER)
  • 14
    26-82245M OIL SEAL, CRANKSHAFT (UPPER)
    OIL SEAL, CRANKSHAFT (UPPER)
  • 15
    27-81565M GASKET, OIL SEAL HOUSING
    GASKET, OIL SEAL HOUSING
  • 16
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 17
    968-8374M HEAD, CYLINDER
    HEAD, CYLINDER
  • 18
    27-81555 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 19
    10-41885M BOLT W/WASHER
    SERIAL 00005811-09999999
    BOLT W/WASHER
    SERIAL 00005811-09999999
  • 19
    10-82407M BOLT
    SERIAL 00000000-00005810
    BOLT
    SERIAL 00000000-00005810
  • 20
    99080M THERMOSTATE
    THERMOSTATE
  • 21
    81030M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 22
    27-81031 GASKET, THERMOSAT COVER
    GASKET, THERMOSAT COVER
  • 23
    12-81835M WASHER
    WASHER
  • 24
    10-84058M BOLT
    BOLT
  • 25
    81569M COVER,EXHAUST-OUTER
    COVER,EXHAUST-OUTER
  • 26
    81568M COVER, EXHAUST-INNER
    COVER, EXHAUST-INNER
  • 27
    27-81570 GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 28
    10-82405M BOLT
    BOLT
  • 29
    10-83285M BOLT
    SERIAL 00002351-09999999
    BOLT
    SERIAL 00002351-09999999
  • 29
    10-83285M BOLT
    SERIAL 00000000-00002350
    BOLT
    SERIAL 00000000-00002350
  • 30
    10-83285M BOLT
    SERIAL 00008216-09999999
    BOLT
    SERIAL 00008216-09999999
  • 30
    10-83285M BOLT
    SERIAL 00005811-00008215
    BOLT
    SERIAL 00005811-00008215
  • 30
    10-83285M BOLT
    SERIAL 00000000-00002350
    BOLT
    SERIAL 00000000-00002350
  • 31
    33-8M0114739 SPARK PLUG, B-7HS(NGK)
    SPARK PLUG, B-7HS(NGK)
  • 32
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 32
    14233M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS
    POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS
  • 32
    27-92575M GASKET SET. POWERHEAD
    REPLACEMENT PARTS
    GASKET SET. POWERHEAD
    REPLACEMENT PARTS
