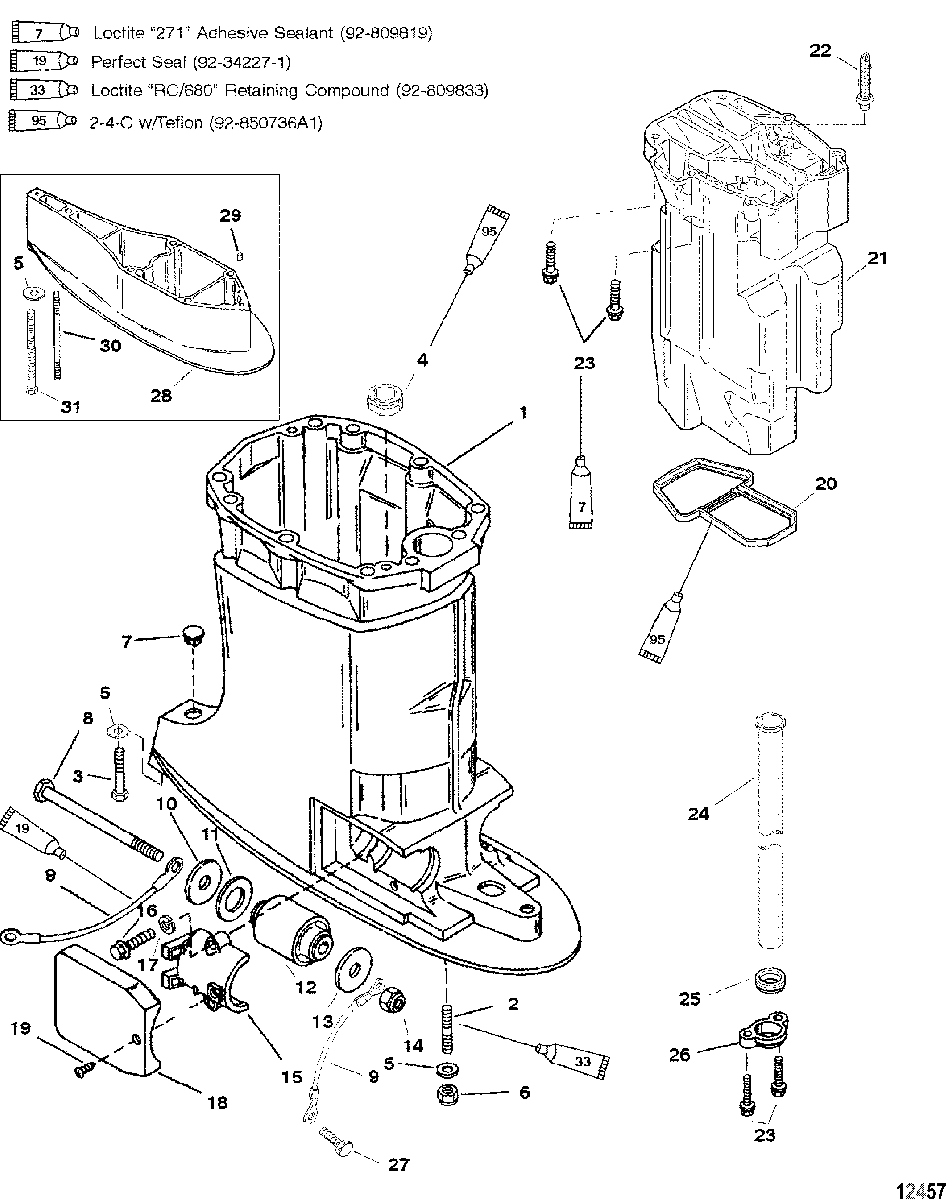

DRIVESHAFT HOUSING & EXHAUST TUBE для Mariner - 200 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(LONG)HOUSING ASSEMBLY, Driveshaft
(LONG) -
13519-832938A06 HOUSING ASSEMBLY, Driveshaft
(X/XX-LONG)HOUSING ASSEMBLY, Driveshaft
(X/XX-LONG) -
216-8M0070951 STUD, (M12 x 52)
(LONG/X-LONG)STUD, (M12 x 52)
(LONG/X-LONG) -
310-857136 SCREW, (M12 x 35)
(LONG/X-LONG)SCREW, (M12 x 35)
(LONG/X-LONG) -
425-8331231 GROMMETGROMMET
-
512-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
611-896895 NUT, (M12 x 1.75)NUT, (M12 x 1.75)
-
719-64649 PLUGPLUG
-
810-898834 SCREW, (M14 x 178)SCREW, (M14 x 178)
-
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1112-8154331 WASHER, (1.25 x 2.00 x .19)WASHER, (1.25 x 2.00 x .19)
-
128137711 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUTNUT
-
15879150A90 CLAMPCLAMP
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
18879150A90 COVER, BlackCOVER, Black
-
1910-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
208329321 SEALSEAL
-
21833116A4 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
22NSS NOT SOLD SEPARATE, STRAINERNOT SOLD SEPARATE, STRAINER
-
2310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2432-8M0042785 TUBE, Water
(LONG)TUBE, Water
(LONG) -
2432-8M0042786 TUBE, Water
(X-LONG)TUBE, Water
(X-LONG) -
2432-8M0042787 TUBE, Water
(XX-LONG)TUBE, Water
(XX-LONG) -
25832940001 SEALSEAL
-
268329391 CLAMPCLAMP
-
2710-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
288M0105088 SPACER
(XX-LONG)SPACER
(XX-LONG) -
2917-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-LONG)PIN, Dowel - Without Hole (.375 x .625)
(XX-LONG) -
3016-8M0008047 STUD, (M12 x 179)
(XX-LONG)STUD, (M12 x 179)
(XX-LONG) -
3110-857137 SCREW, (M12 x 160)
(XX-LONG)SCREW, (M12 x 160)
(XX-LONG)
