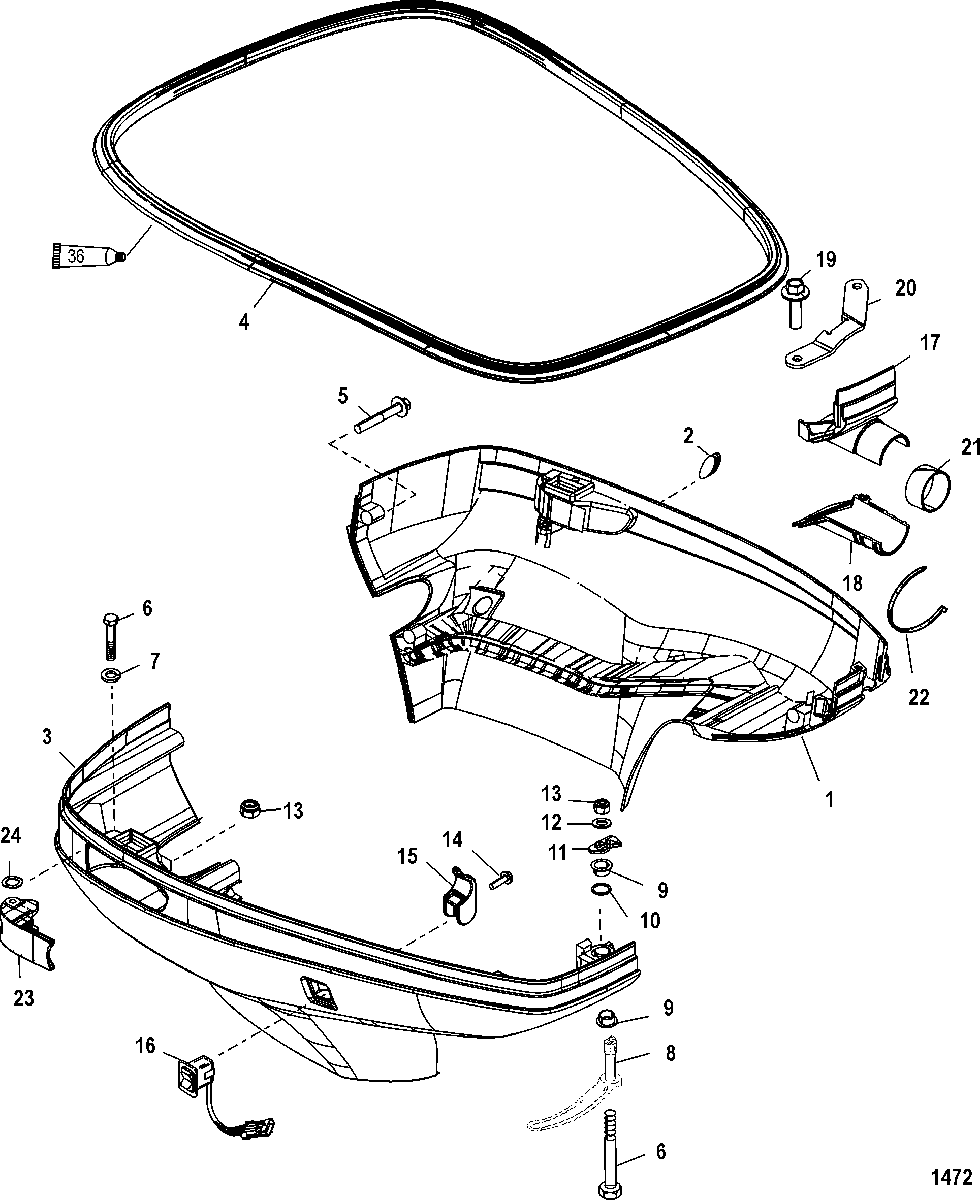

BOTTOM COWL для Mariner - 200 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    100-8M0122314 BOTTOM COWL, Port
    BOTTOM COWL, Port
  • 2
    854367001 PLUG
    PLUG
  • 3
    100-8M0122313 BOTTOM COWL, Starboard
    BOTTOM COWL, Starboard
  • 4
    8M0109218 SEAL, (44.00 Inches)
    SEAL, (44.00 Inches)
  • 5
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 6
    10-824868 SCREW, (M6 x 75)
    SCREW, (M6 x 75)
  • 7
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 8
    8M0053903 FRONT HANDLE
    FRONT HANDLE
  • 9
    23-335891 BUSHING
    BUSHING
  • 10
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 11
    8219423 PAWL
    PAWL
  • 12
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 13
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 15
    54-822873 CLIP
    CLIP
  • 16
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 17
    8M8027677 RIGGING KIT (UPPER)
    RIGGING KIT (UPPER)
  • 18
    NSS NOT SOLD SEPARATE, CLAMP (LOWER)
    NOT SOLD SEPARATE, CLAMP (LOWER)
  • 19
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 20
    NSS NOT SOLD SEPARATE, STRAP
    NOT SOLD SEPARATE, STRAP
  • 21
    859343 FOAM
    FOAM
  • 22
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • 23
    850682A06 HANDLE, Cowl
    HANDLE, Cowl
  • 24
    13-29402 WAVE WASHER
    WAVE WASHER
