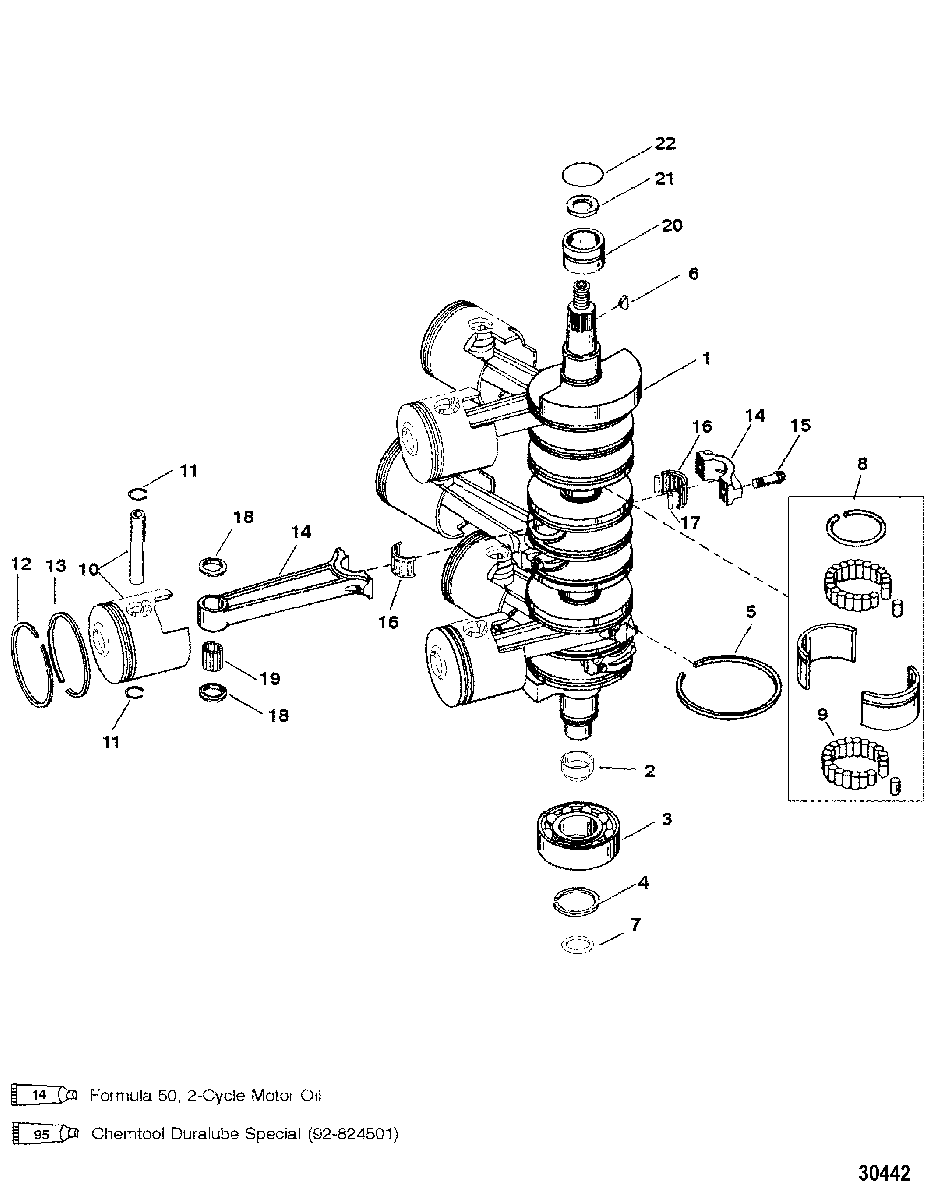

CRANKSHAFT, PISTONS - AND CONNECTING RODS для Mariner - 200 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    482-9784A11 CRANKSHAFT
    SN# 0T325116 & Below
    CRANKSHAFT
    SN# 0T325116 & Below
  • 1
    482-9784A11 CRANKSHAFT ASSEMBLY
    SN# 0T325117 & Up
    CRANKSHAFT ASSEMBLY
    SN# 0T325117 & Up
  • 2
    NSS NOT SOLD SEPARATE, WEAR SLEEVE
    NOT SOLD SEPARATE, WEAR SLEEVE
  • 3
    30-67923T BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 4
    53-67446 RING
    RING
  • 5
    39-843198T01 RING
    RING
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 8
    31-88270A02 RACE ASSEMBLY
    SN# 0T325117 & Up
    RACE ASSEMBLY
    SN# 0T325117 & Up
  • 9
    NSS NOT SOLD SEPARATE, NEEDLE BEERING
    SN# 0T325117 & Up
    NOT SOLD SEPARATE, NEEDLE BEERING
    SN# 0T325117 & Up
  • 8
    8M0113288 RACE ASSEMBLY, Bearing
    SN# 0T325116 & Below
    RACE ASSEMBLY, Bearing
    SN# 0T325116 & Below
  • 9
    NSS NOT SOLD SEPARATE, NEEDLE ROLLER
    SN# 0T325116 & Below
    NOT SOLD SEPARATE, NEEDLE ROLLER
    SN# 0T325116 & Below
  • 10
    2720-859297T2 PISTON
    (STBD-STANDARD)
    PISTON
    (STBD-STANDARD)
  • 10
    2720-859444A2 PISTON ASSEMBLY
    (STBD - .015 O.S)
    PISTON ASSEMBLY
    (STBD - .015 O.S)
  • 10
    2720-859446A2 PISTON ASSEMBLY
    (STBD - .030 O.S)
    PISTON ASSEMBLY
    (STBD - .030 O.S)
  • 10
    2720-859296T2 PISTON
    (PORT-STANDARD)
    PISTON
    (PORT-STANDARD)
  • 10
    2720-859443A2 PISTON ASSEMBLY
    (PORT - .015 O.S)
    PISTON ASSEMBLY
    (PORT - .015 O.S)
  • 10
    2720-859445A2 PISTON ASSEMBLY
    (PORT - .030 O.S)
    PISTON ASSEMBLY
    (PORT - .030 O.S)
  • 11
    53-8320811 LOCK RING
    LOCK RING
  • 12
    39-858772A12 RING SET, Piston
    (STANDARD)
    RING SET, Piston
    (STANDARD)
  • 12
    39-875252A12 RING SET, Piston
    (.015 O/S)
    RING SET, Piston
    (.015 O/S)
  • 12
    39-875257A12 RING SET, Piston
    (.030 O/S)
    RING SET, Piston
    (.030 O/S)
  • 13
    NSS NOT SOLD SEPARATE, PISTON RING (LOWER)
    NOT SOLD SEPARATE, PISTON RING (LOWER)
  • 14
    600-8M0125869 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 16
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 17
    NSS NOT SOLD SEPARATE, NEEDLE ROLLER BEARING
    NOT SOLD SEPARATE, NEEDLE ROLLER BEARING
  • 18
    12-88263 THRUST WASHER
    THRUST WASHER
  • 19
    29-88258001 NEEDLE, Roller Bearing
    NEEDLE, Roller Bearing
  • 20
    31-816773A2 BEARING ASSEMBLY (UPPER)
    BEARING ASSEMBLY (UPPER)
  • 21
    26-859093 SEAL
    SEAL
  • 22
    25-823683 O-RING, (1.989 x .070)
    O-RING, (1.989 x .070)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    877869A01 POWERHEAD ASSEMBLY
    (225)
    POWERHEAD ASSEMBLY
    (225)
  • -
    854198R01 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
