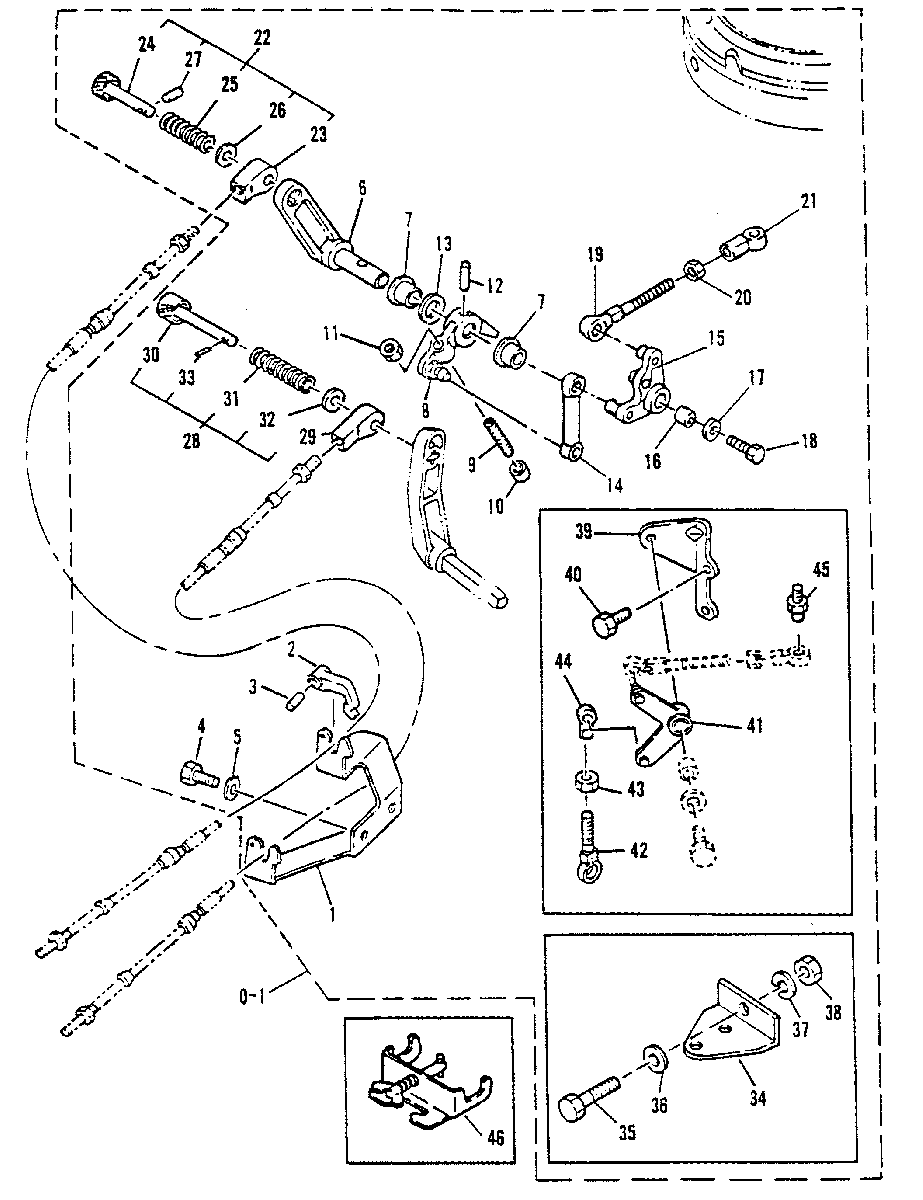

REMOTE CONTROL ATTACHMENT KIT для Mariner - 15C E-684-250101 AND UP
-
№АртикулНазвание
-
0-143989A1 R/C ATTACHMENT KIT (SEE NOTE #1)R/C ATTACHMENT KIT (SEE NOTE #1)
-
0-143988A1 R/C ATTACHMENT KIT (SEE NOTE #2)R/C ATTACHMENT KIT (SEE NOTE #2)
-
194629M BRACKETBRACKET
-
254-84113M CLAMPCLAMP
-
317-82146M ROLL PINROLL PIN
-
410-826957M BOLTBOLT
-
512-82214M WASHERWASHER
-
684103M HANDLEHANDLE
-
723-81946M BUSHINGBUSHING
-
884104M LEVERLEVER
-
916-84347M STUDSTUD
-
1081415M CAPCAP
-
1111-82390M NUTNUT
-
1217-82156M ROLL PINROLL PIN
-
1312-81846M WASHERWASHER
-
1494630M JOINT (SEE NOTE #1)JOINT (SEE NOTE #1)
-
1594631M LEVER (SEE NOTE #1)LEVER (SEE NOTE #1)
-
1623-83310M COLLARCOLLAR
-
1712-81969M WASHERWASHER
-
1810-84058M BOLTBOLT
-
1984101M LINKLINK
-
2011-83763M NUTNUT
-
2184100M JOINTJOINT
-
2284109M CABLE END (THROTTLE)CABLE END (THROTTLE)
-
2384110M CABLE ENDCABLE END
-
2417-814499M HOOKHOOK
-
2524-83725M SPRINGSPRING
-
2612-82217M WASHERWASHER
-
2717-82146M ROLL PINROLL PIN
-
2884106M CABLE END (SHIFT)CABLE END (SHIFT)
-
2984107M CABLE ENDCABLE END
-
3017-814500M HOOKHOOK
-
3124-83721M SPRINGSPRING
-
3212-82217M WASHERWASHER
-
3317-82146M ROLL PINROLL PIN
-
3411670T STEERING BRKT.(BALL POST TYPE - SEE NOTE #3)STEERING BRKT.(BALL POST TYPE - SEE NOTE #3)
-
3483698M STEERING BRKT.(BALL POST TYPE - SEE NOTE #4)STEERING BRKT.(BALL POST TYPE - SEE NOTE #4)
-
3510-91636M BOLTBOLT
-
3613-82218M LOCKWASHERLOCKWASHER
-
3712-82220M WASHERWASHER
-
3811-81785M NUTNUT
-
3984112M BRACKET - SEE NOTE #2BRACKET - SEE NOTE #2
-
4010-826957M BOLT - SEE NOTE #2BOLT - SEE NOTE #2
-
4184105M LEVER - SEE NOTE #2LEVER - SEE NOTE #2
-
42NLA JOINT - SEE NOTE #2JOINT - SEE NOTE #2
-
4311-83763M NUT - SEE NOTE #2NUT - SEE NOTE #2
-
4416715M JOINT - SEE NOTE #2JOINT - SEE NOTE #2
-
4584108M JOINT - SEE NOTE #2JOINT - SEE NOTE #2
-
4683727M STEERING BRACKET (ROPE TYPE)STEERING BRACKET (ROPE TYPE)
