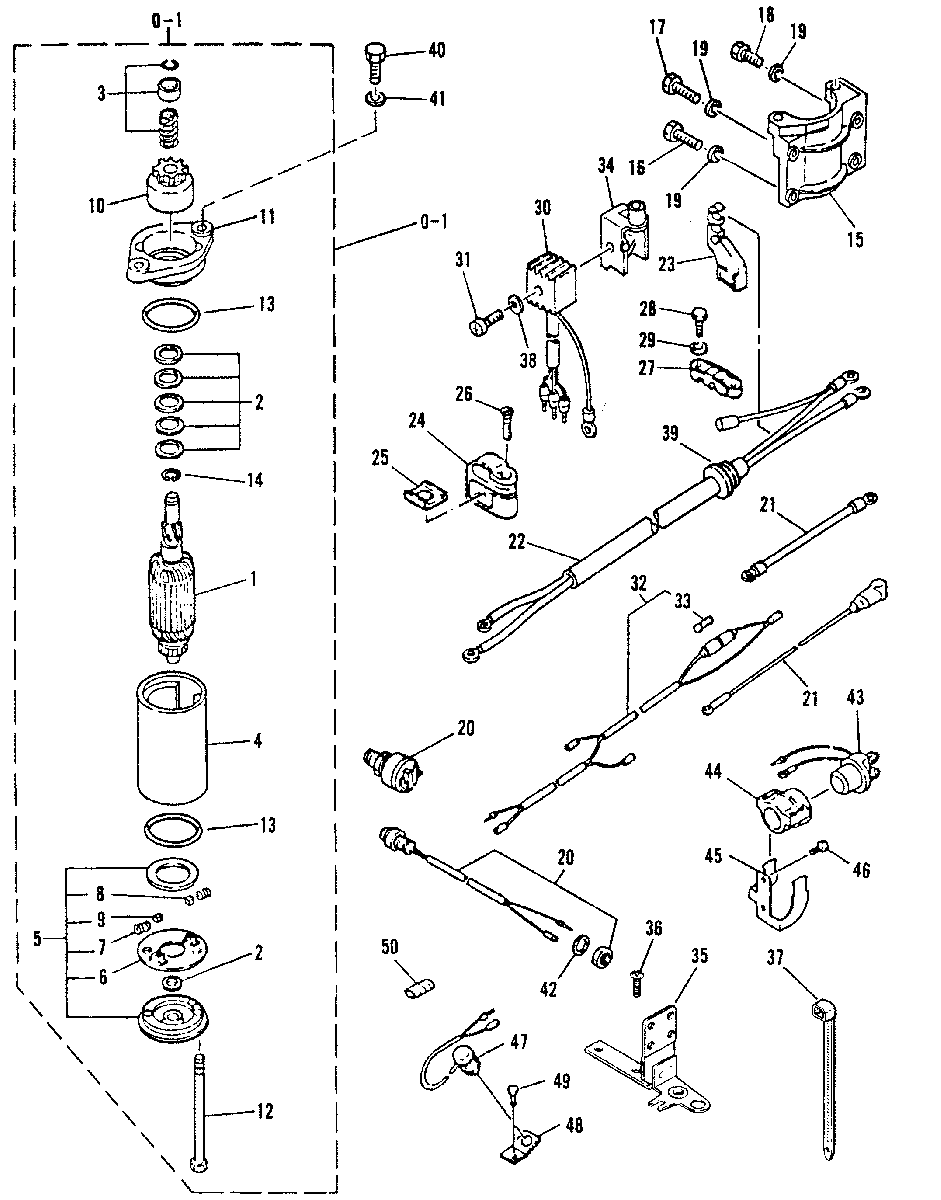

ELECTRIC START для Mariner - 15C E-684-250101 AND UP

  • №
    Артикул
    Название
  • 0-1
    50-98982M STARTER MOTOR
    STARTER MOTOR
  • 1
    84330M ARMATURE
    ARMATURE
  • 2
    12-84331M WASHER KIT
    WASHER KIT
  • 3
    84332M PINION STOPPER SET
    PINION STOPPER SET
  • 4
    98983M FIELD (682-81800-11/ OR -12 ONLY)
    FIELD (682-81800-11/ OR -12 ONLY)
  • 4
    NLA FIELD (ALL OTHERS)
    FIELD (ALL OTHERS)
  • 5
    84334M COVER ASSEMBLY
    COVER ASSEMBLY
  • 6
    84335M BRUSH HOLDER
    BRUSH HOLDER
  • 7
    24-84336M SPRING
    SPRING
  • 8
    84337M BRUSH (+)
    BRUSH (+)
  • 9
    84338M BRUSH (-)
    BRUSH (-)
  • 10
    43-84339M PINION GEAR
    PINION GEAR
  • 11
    84340M COVER
    COVER
  • 12
    10-84341M THRU BOLT
    THRU BOLT
  • 13
    25-14258M O-RING - NEW DESIGN
    O-RING - NEW DESIGN
  • 14
    53-14752M SNAP RING - NEW DESIGN
    SNAP RING - NEW DESIGN
  • 15
    14215M BRACKET
    (E-250236 EL-550596 & Up)
    BRACKET
    (E-250236 EL-550596 & Up)
  • 15
    84095M BRACKET
    (E-250235 EL-550595 & Below)
    BRACKET
    (E-250235 EL-550595 & Below)
  • 16
    10-84058M BOLT
    BOLT
  • 17
    10-83285M BOLT
    BOLT
  • 18
    10-82405M BOLT
    (E-250236 EL-550596 & Up)
    BOLT
    (E-250236 EL-550596 & Up)
  • 18
    10-84058M BOLT
    (E-250235 EL-550595 & Below)
    BOLT
    (E-250235 EL-550595 & Below)
  • 19
    12-82214M WASHER
    WASHER
  • 20
    87-18930M STARTER SWITCH
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    STARTER SWITCH
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 21
    84-18931M LEAD WIRE
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    LEAD WIRE
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 20
    87-84096M STARTER SWITCH
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    STARTER SWITCH
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 21
    84-98985M LEAD WIRE
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    LEAD WIRE
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 22
    84-18932M HARNESS
    HARNESS
  • 23
    98987M RETAINER
    RETAINER
  • 24
    99062M RETAINER
    RETAINER
  • 25
    84708M PLATE
    PLATE
  • 26
    10-84709M SCREW
    SCREW
  • 27
    54-41876M CLAMP
    CLAMP
  • 28
    10-826957M BOLT
    BOLT
  • 29
    12-82214M WASHER
    WASHER
  • 30
    8M0091976 RECTIFIER
    RECTIFIER
  • 31
    10-83108M SCREW
    SCREW
  • 32
    18933M FUSE HOLDER (DOUBLE WIRE - 30")
    FUSE HOLDER (DOUBLE WIRE - 30")
  • 32
    98988M FUSE HOLDER (SINGLE WIRE - 12")
    FUSE HOLDER (SINGLE WIRE - 12")
  • 33
    88-81522M FUSE (12V-20A)
    FUSE (12V-20A)
  • 34
    811998M BRACKET
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    BRACKET
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 34
    84091M BRACKET
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    BRACKET
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 35
    94798M BRACKET
    BRACKET
  • 36
    10-14232M SCREW
    SCREW
  • 37
    25-82060M STA-STRAP
    STA-STRAP
  • 38
    12-82211M WASHER
    WASHER
  • 39
    25-84092M GROMMET
    GROMMET
  • 40
    10-84342M BOLT
    BOLT
  • 41
    12-82217M WASHER
    WASHER
  • 42
    12-18934M WASHER
    WASHER
  • 43
    89-8M0098898 STARTER RELAY
    STARTER RELAY
  • 44
    8M0010250 BRACKET
    BRACKET
  • 45
    18935M PLATE
    PLATE
  • 46
    10-84211M BOLT
    BOLT
  • 47
    87-97684M NEUTRAL SWITCH
    NEUTRAL SWITCH
  • 48
    94790M BRACKET
    BRACKET
  • 49
    10-91772M BOLT
    BOLT
  • 50
    32-18936M HOSE
    HOSE
