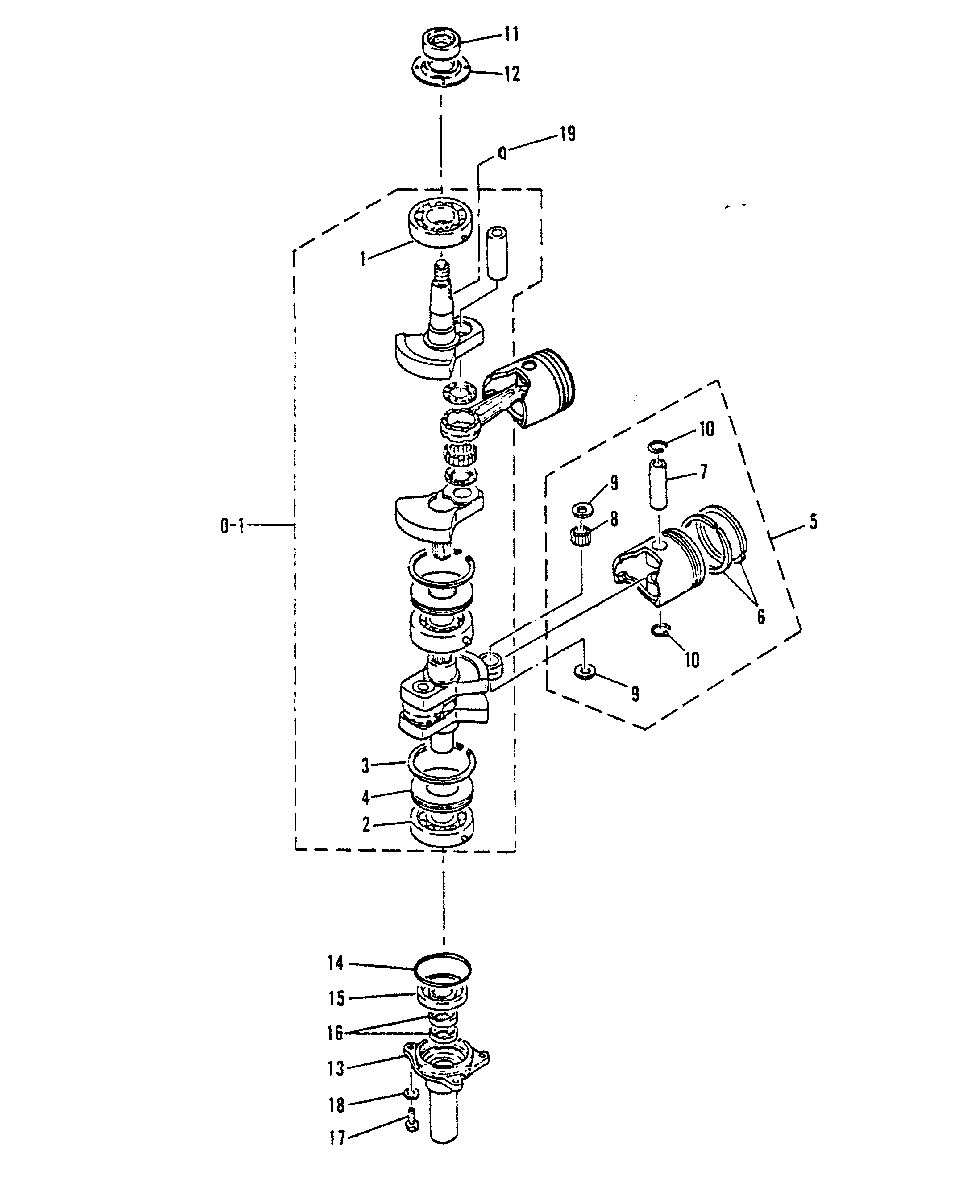

CRANKSHAFT AND PISTON для Mariner - 15C E-684-250101 AND UP

  • №
    Артикул
    Название
  • 0-1
    463-9854M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 1
    30-82303T BEARING (UPPER)
    BEARING (UPPER)
  • 2
    30-83938T BEARING (LOWER)
    BEARING (LOWER)
  • 3
    53-94555M SNAP RING
    SNAP RING
  • 4
    26-84244M SEAL
    SEAL
  • 5
    761-7982T PISTON (STANDARD)
    PISTON (STANDARD)
  • 5
    761-8022T PISTON (1ST O.S. 56.25MM)
    PISTON (1ST O.S. 56.25MM)
  • 5
    761-8022T PISTON (2ND O.S. 56.50MM)
    PISTON (2ND O.S. 56.50MM)
  • 6
    39-15320T PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 6
    39-18939T PISTON RING SET (1ST O.S. 56.25MM)
    PISTON RING SET (1ST O.S. 56.25MM)
  • 6
    39-15322T PISTON RING SET (2ND O.S. 56.50MM)
    PISTON RING SET (2ND O.S. 56.50MM)
  • 7
    41-80272M PISTON PIN
    PISTON PIN
  • 8
    29-82349M NEEDLE BEARING
    NEEDLE BEARING
  • 9
    12-81823M WASHER
    WASHER
  • 10
    53-82343M CLIP
    CLIP
  • 11
    26-83936M OIL SEAL (UPPER)
    OIL SEAL (UPPER)
  • 12
    23-84243M SPACER
    SPACER
  • 13
    18940M HOUSING
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    HOUSING
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 13
    83945T HOUSING
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    HOUSING
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 14
    25-83930M O-RING
    O-RING
  • 15
    26-18843M OIL SEAL (LOWER)
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    OIL SEAL (LOWER)
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 15
    26-96605M OIL SEAL(LOWER)
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    OIL SEAL(LOWER)
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 16
    26-96606M OIL SEAL (LOWER)
    OIL SEAL (LOWER)
  • 17
    10-826957M BOLT
    BOLT
  • 18
    12-82214M WASHER
    WASHER
  • 19
    28-8M0057164 KEY
    KEY
  • -
    27-96604M ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
    ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
  • -
    27-18938M ENGINE GASKET SET
    (M-062459, ML-336234, E-252704, EL-553589 & UP)
    ENGINE GASKET SET
    (M-062459, ML-336234, E-252704, EL-553589 & UP)
