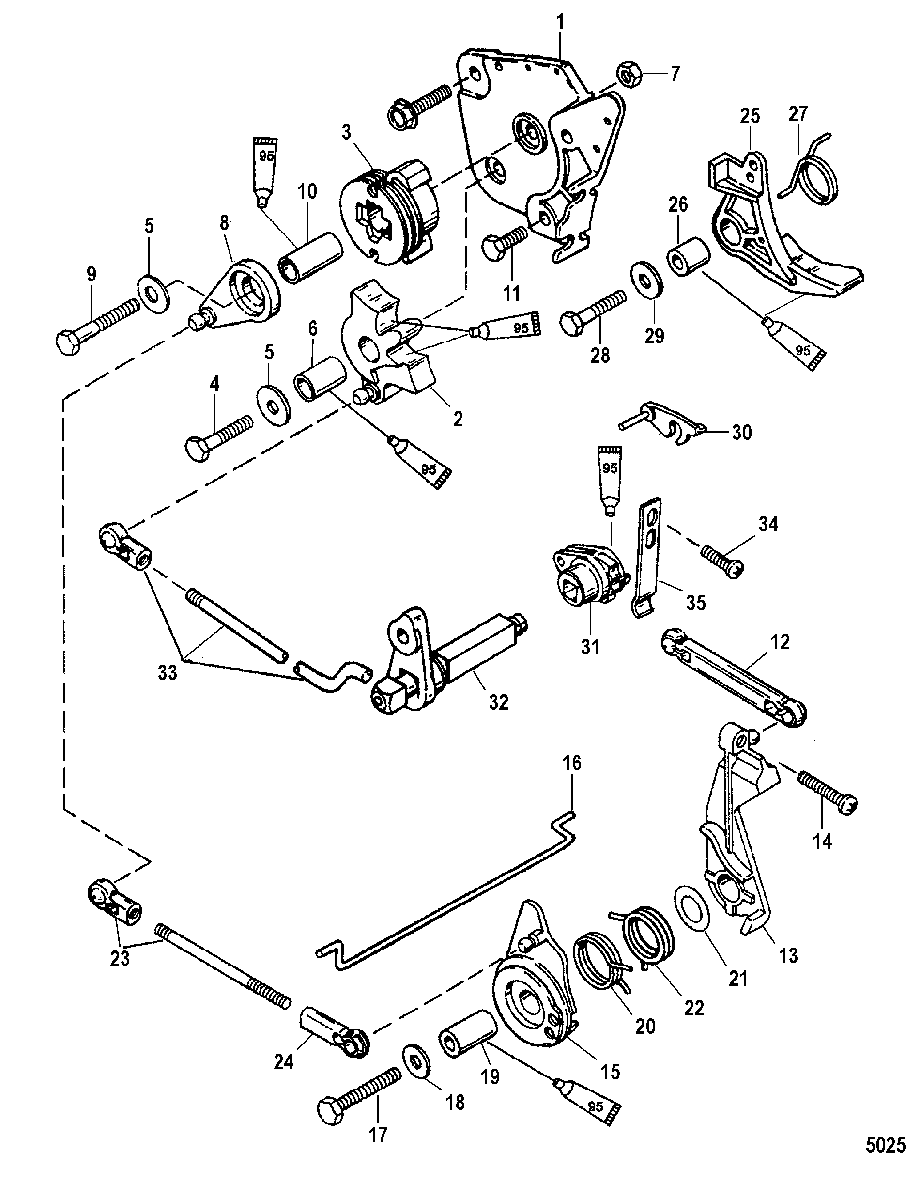

Throttle and Shift Linkage(Tiller Handle) для Mariner - 15 MARATHON 0P325500 & Up
-
№АртикулНазвание
-
18M0047593 CONTROL PLATFORMCONTROL PLATFORM
-
294085A1 GEARGEAR
-
3NSS NOT SOLD SEPARATE, GearNOT SOLD SEPARATE, Gear
-
410-826650 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
512-4002316 WASHERWASHER
-
623-856737 SPACER (Short)SPACER (Short)
-
711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
842151 LEVER, PrimaryLEVER, Primary
-
910-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1023-856738 SPACER (Long)SPACER (Long)
-
1110-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
12421671 TIMING LINKTIMING LINK
-
13421631 LEVER, ControlLEVER, Control
-
1410-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
15421662 ACTUATORACTUATOR
-
1642161 LINK INTERLOCKLINK INTERLOCK
-
1710-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1812-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1923-421621 BUSHINGBUSHING
-
2024-42164 SPRINGSPRING
-
2113-69708 WAVE WASHERWAVE WASHER
-
2224-13676 SPRINGSPRING
-
238M0084745 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
248M0084742 SOCKETSOCKET
-
25421592 LEVERLEVER
-
2623-421581 BUSHINGBUSHING
-
2724-42160 SPRINGSPRING
-
2810-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2912-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3042156 LEVERLEVER
-
3142153 LEVERLEVER
-
328155501 SHIFT SHAFTSHIFT SHAFT
-
33815567T02 SHIFT LINKSHIFT LINK
-
3410-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
3524-39627 SPRINGSPRING
