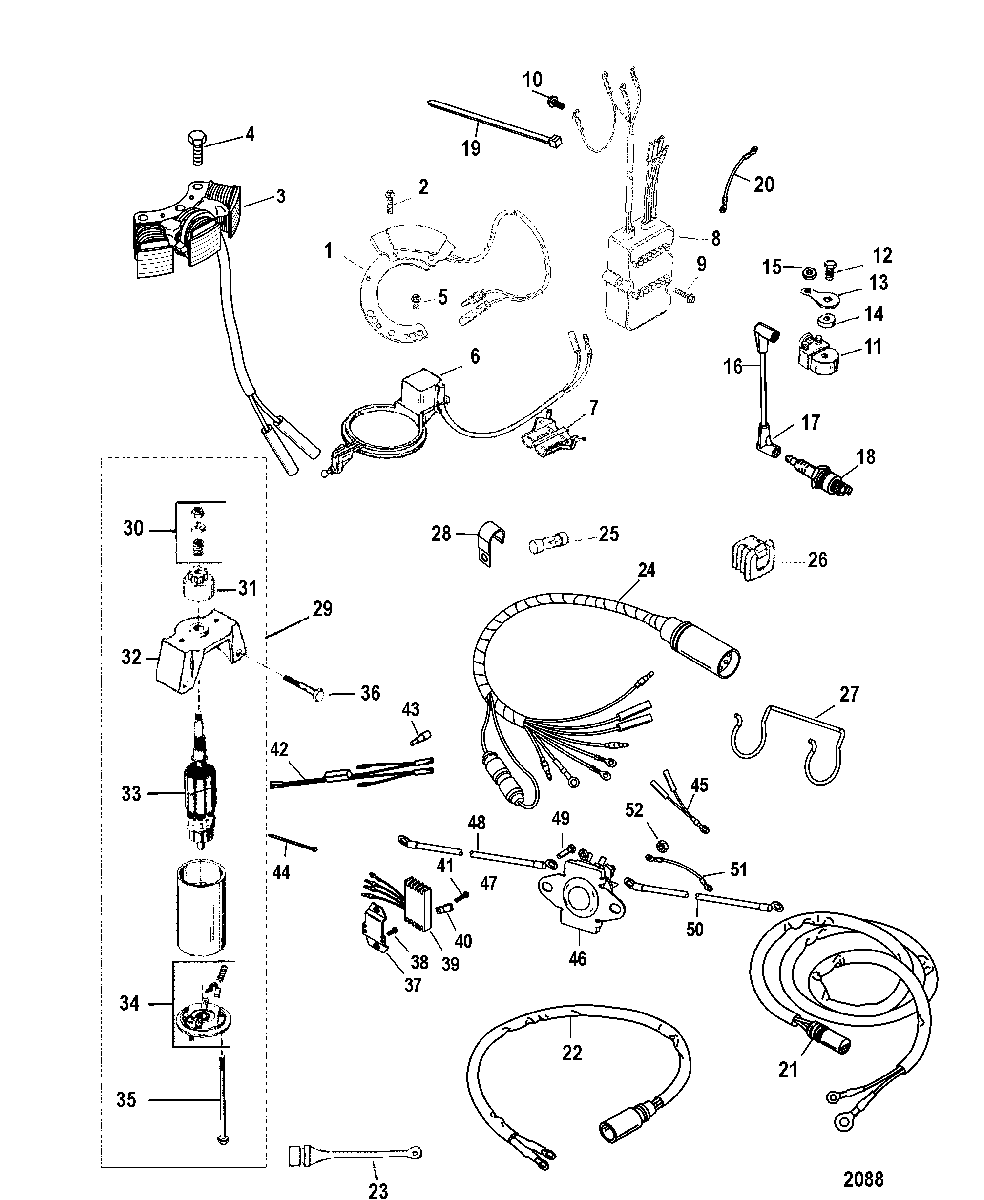

Electrical Components для Mariner - 15 MARATHON 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    855721T8 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 2
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 3
    86704T11 STATOR AUXILIARY
    (Seapro/Marathon/Viking)
    STATOR AUXILIARY
    (Seapro/Marathon/Viking)
  • 4
    10-4013930 SCREW, (M5 x 30)
    (Seapro/Marathon/Viking)
    SCREW, (M5 x 30)
    (Seapro/Marathon/Viking)
  • 5
    10-4013910 SCREW, (M5 x 10)
    (Short)
    SCREW, (M5 x 10)
    (Short)
  • 6
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 7
    11100 CLIP
    CLIP
  • 8
    855713A3 SWITCHBOX ASSEMBLY
    (Seapro/Marathon)
    SWITCHBOX ASSEMBLY
    (Seapro/Marathon)
  • 8
    855713A4 SWITCHBOX ASSEMBLY
    (XR/Magnum/Viking)
    SWITCHBOX ASSEMBLY
    (XR/Magnum/Viking)
  • 9
    10-40019111 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 10
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 11
    339-832757A4 COIL KIT
    COIL KIT
  • 12
    10-40112 SCREW, (M6 x 45)
    SCREW, (M6 x 45)
  • 13
    88173 TAB WASHER
    TAB WASHER
  • 14
    23-88171 BUSHING
    BUSHING
  • 15
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 16
    84-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)
    CABLE SET, High Tension (5 and 8.25 Inch)
  • 16
    NSS NOT SOLD SEPARATE, Lead Assembly-High Tension
    (8.25 Inch)
    NOT SOLD SEPARATE, Lead Assembly-High Tension
    (8.25 Inch)
  • 17
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 18
    33-8M0114746 SPARK PLUG (NGK#BP8HS-15)
    SPARK PLUG (NGK#BP8HS-15)
  • 18
    33-14814568 SPARK PLUG (NGK#BPZ-8HS-15)
    SPARK PLUG (NGK#BPZ-8HS-15)
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 19
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 20
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 21
    84-65017A10 HARNESS ASSEMBLY, Battery End (62 Inches - Black/Red)
    (Sailpower)
    HARNESS ASSEMBLY, Battery End (62 Inches - Black/Red)
    (Sailpower)
  • 22
    84-74725A2 HARNESS ASSEMBLY (20 Inches - Black/Red)
    (Sailpower)
    HARNESS ASSEMBLY (20 Inches - Black/Red)
    (Sailpower)
  • 23
    71663 PLUG
    (Sailpower)
    PLUG
    (Sailpower)
  • 24
    84-12334A4 HARNESS ASSEMBLY, Engine Wiring
    (Electric)
    HARNESS ASSEMBLY, Engine Wiring
    (Electric)
  • 25
    88-79091 FUSE, 20 Ampere
    (Electric)
    FUSE, 20 Ampere
    (Electric)
  • 26
    12152 RETAINER
    (Electric)
    RETAINER
    (Electric)
  • 27
    92753 RETAINER
    (Electric)
    RETAINER
    (Electric)
  • 28
    54-55098 J CLIP
    (Electric)
    J CLIP
    (Electric)
  • 29
    50-8M0033984 STARTER MOTOR ASSEMBLY
    (Electric)
    STARTER MOTOR ASSEMBLY
    (Electric)
  • 29
    50-8M0033984 STARTER MOTOR ASSEMBLY
    (Electric)
    STARTER MOTOR ASSEMBLY
    (Electric)
  • 30
    96561 DRIVE KIT
    (Electric)
    DRIVE KIT
    (Electric)
  • 31
    96562 DRIVE
    (Electric)
    DRIVE
    (Electric)
  • 32
    96563T END CAP
    (Electric)
    END CAP
    (Electric)
  • 33
    96565 ARMATURE
    (Electric)
    ARMATURE
    (Electric)
  • 34
    96564T END CAP
    (Electric)
    END CAP
    (Electric)
  • 35
    10-96566 THRU BOLT
    (Electric)
    THRU BOLT
    (Electric)
  • 36
    10-421251 SCREW, (M8 x 55)
    (Electric)
    SCREW, (M8 x 55)
    (Electric)
  • 37
    883073 PLATE, Mounting
    PLATE, Mounting
  • 38
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 39
    853358T1 RECTIFIER
    RECTIFIER
  • 40
    54-54457 J CLIP
    J CLIP
  • 41
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 42
    17461T11 MODULE KIT, Tachometer Adaptor
    MODULE KIT, Tachometer Adaptor
  • 43
    13541 PLUG, Male
    PLUG, Male
  • 44
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 45
    84-11149A54 HARNESS ASSEMBLY, Adaptor
    HARNESS ASSEMBLY, Adaptor
  • 46
    89-850189T SOLENOID, Starter
    (Electric)
    SOLENOID, Starter
    (Electric)
  • 47
    84-88439A28 CABLE ASSEMBLY, Battery - Black (Negative)
    (Electric)
    CABLE ASSEMBLY, Battery - Black (Negative)
    (Electric)
  • 48
    10-4000328 SCREW, (M6 x 16)
    (Electric)
    SCREW, (M6 x 16)
    (Electric)
  • 49
    11-26419 NUT, (#8-32) Brass
    (Electric)
    NUT, (#8-32) Brass
    (Electric)
  • 50
    84-88439A27 CABLE ASSEMBLY, Red - Battery (Positive)
    (Electric)
    CABLE ASSEMBLY, Red - Battery (Positive)
    (Electric)
  • 51
    84-88809A5 WIRE ASSEMBLY (Yellow)
    (Electric)
    WIRE ASSEMBLY (Yellow)
    (Electric)
  • 52
    11-64015 NUT, (.250-20)
    (Electric)
    NUT, (.250-20)
    (Electric)
