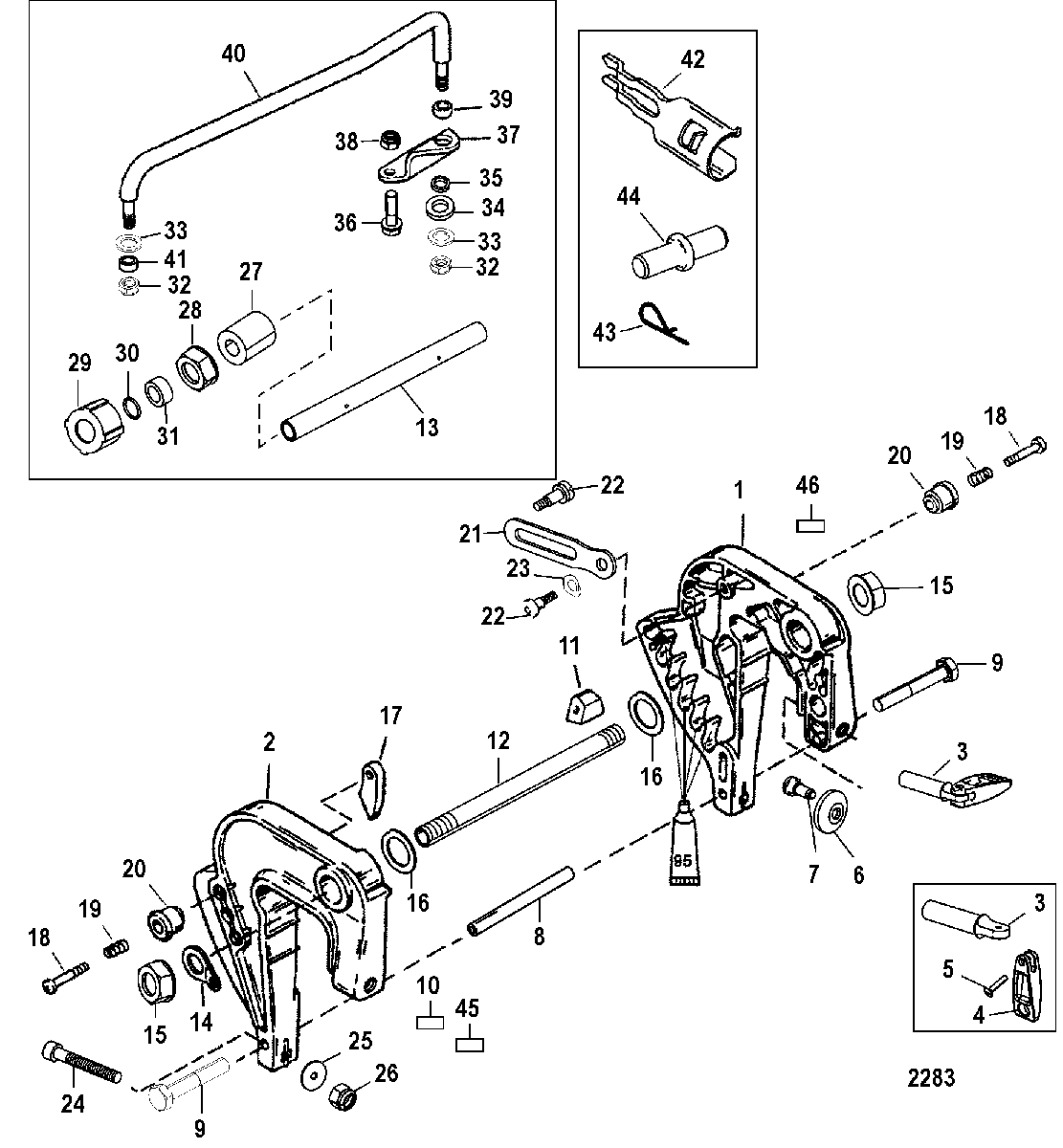

Clamp Bracket для Mariner - 15 MARATHON 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    3404-8894A8 CLAMP BRACKET ASSEMBLY
    (Port) (Black)
    CLAMP BRACKET ASSEMBLY
    (Port) (Black)
  • 2
    3403-8892A6 CLAMP BRACKET ASSEMBLY
    (Starboard) (Black)
    CLAMP BRACKET ASSEMBLY
    (Starboard) (Black)
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
    THUMB SCREW ASSEMBLY, (16 mm)
  • 4
    NSS NOT SOLD SEPARATE, Handle
    NOT SOLD SEPARATE, Handle
  • 5
    NSS NOT SOLD SEPARATE, Rivet
    NOT SOLD SEPARATE, Rivet
  • 6
    12-818884 WASHER
    WASHER
  • 7
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
  • 8
    23-8M0084719 SPACER
    SPACER
  • 9
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 10
    37-12869 DECAL, Tilt Position
    DECAL, Tilt Position
  • 11
    814427 SHUTTLE
    SHUTTLE
  • 12
    42078 TILT TUBE
    (Handle Models)
    TILT TUBE
    (Handle Models)
  • 13
    8M0041936 TILT TUBE
    (RC Models)
    TILT TUBE
    (RC Models)
  • 14
    54-8M0085928 CLIP
    CLIP
  • 15
    11-93164 NUT, (.875)
    NUT, (.875)
  • 16
    12-71421 WASHER, Nylon
    WASHER, Nylon
  • 17
    42390A1 LEVER ASSEMBLY, Tilt Return
    LEVER ASSEMBLY, Tilt Return
  • 18
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 19
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 20
    NSS NOT SOLD SEPARATE, Knob
    NOT SOLD SEPARATE, Knob
  • 21
    90901 STRAP, Port Side
    STRAP, Port Side
  • 22
    10-42498 SCREW, (M6 x 1.0)
    SCREW, (M6 x 1.0)
  • 23
    13-31030 WAVE WASHER
    WAVE WASHER
  • 24
    10-43216 BOLT, (.250-20 x 3.50)
    BOLT, (.250-20 x 3.50)
  • 25
    12-67983 WASHER
    WASHER
  • 26
    11-8267118 NUT, (.250-20)
    NUT, (.250-20)
  • 27
    23-113841 SPACER
    (RC Models)
    SPACER
    (RC Models)
  • 28
    11-93164 NUT, (.875)
    (RC Models)
    NUT, (.875)
    (RC Models)
  • 29
    19624A1 SEAL KIT
    (RC Models)
    SEAL KIT
    (RC Models)
  • 30
    25-29619 O-RING, (.583 x .103)
    (RC Models)
    O-RING, (.583 x .103)
    (RC Models)
  • 31
    23-78861 SPACER
    (RC Models)
    SPACER
    (RC Models)
  • 32
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (RC Models)
    NUT, (.375-24) Stainless Steel
    (RC Models)
  • 33
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    (RC Models)
    WASHER, (.390 x .625 x .062) Stainless Steel
    (RC Models)
  • 34
    12-30521 WASHER, (.97 x .56 x .19)
    (RC Models)
    WASHER, (.97 x .56 x .19)
    (RC Models)
  • 35
    12-8M0109680 WASHER, (.390 x .546 x .12)
    (RC Models)
    WASHER, (.390 x .546 x .12)
    (RC Models)
  • 36
    10-8240717 SCREW, (M8 x 30)
    (RC Models)
    SCREW, (M8 x 30)
    (RC Models)
  • 37
    11607 BRACKET
    (RC Models)
    BRACKET
    (RC Models)
  • 38
    11-401388 NUT, (M8) Stainless Steel
    (RC Models)
    NUT, (M8) Stainless Steel
    (RC Models)
  • 39
    29698 BALL JOINT
    (RC Models)
    BALL JOINT
    (RC Models)
  • 40
    11606A1 ATTACHING KIT, Starboard
    (RC Models)
    ATTACHING KIT, Starboard
    (RC Models)
  • 41
    23-66751 SPACER, (.250 x .390 x .630) Stainless Steel
    (RC Models)
    SPACER, (.250 x .390 x .630) Stainless Steel
    (RC Models)
  • 42
    424291 RETAINER
    (RC Models)
    RETAINER
    (RC Models)
  • 43
    54-11372 CLIP
    (RC Models)
    CLIP
    (RC Models)
  • 44
    15822001 PLUG
    (RC Models)
    PLUG
    (RC Models)
  • 45
    NSS NOT SOLD SEPARATE, Decal-Lower Tilt Limit
    NOT SOLD SEPARATE, Decal-Lower Tilt Limit
  • 46
    NSS NOT SOLD SEPARATE, Decal-Tilt Lock
    NOT SOLD SEPARATE, Decal-Tilt Lock
