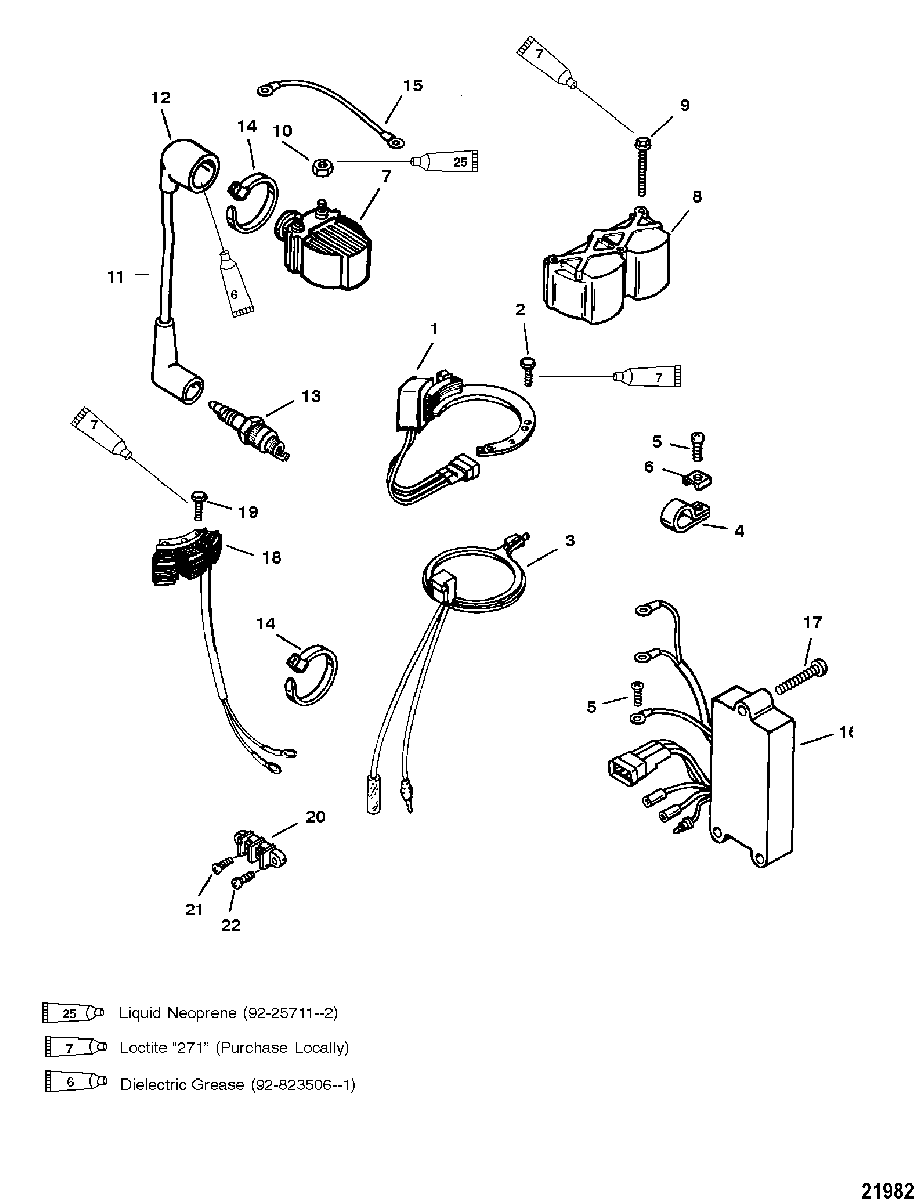

Ignition/Electrical Components для Mariner - 15 MARATHON 0G044365 THRU 0G437999

  • №
    Артикул
    Название
  • 1
    86617A17 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 2
    10-4000120 SCREW, (M5 x 25)
    SCREW, (M5 x 25)
  • 3
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 4
    54-22740 CLIP
    CLIP
  • 5
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 6
    8M0084613 C WASHER
    C WASHER
  • 7
    339-832757A4 IGNITION COIL
    IGNITION COIL
  • 8
    997621 COVER
    COVER
  • 9
    10-1994155 SCREW, (M5 x 55)
    SCREW, (M5 x 55)
  • 10
    11-45076 NUT, (#10-32)
    NUT, (#10-32)
  • 11
    84-813715A2 LEAD CABLE SET, High Tension (5 and 8.25 Inch)
    LEAD CABLE SET, High Tension (5 and 8.25 Inch)
  • 12
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 13
    33-816737Q SPARK PLUG (NGK #BP8H-N-10)
    SPARK PLUG (NGK #BP8H-N-10)
  • 13
    33-816837Q SPARK PLUG (NGK #BPZ8H-N-10)
    SPARK PLUG (NGK #BPZ8H-N-10)
  • 14
    54-816311T CABLE TIE, (8.00 Inches)
    CABLE TIE, (8.00 Inches)
  • 15
    84-88807A10 WIRE ASSEMBLY, Ground
    WIRE ASSEMBLY, Ground
  • 16
    18495A30 SWITCH BOX
    SWITCH BOX
  • 17
    10-40011111 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 18
    86704A10 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 19
    10-4000123 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 20
    86-638131 TERMINAL BLOCK
    TERMINAL BLOCK
  • 21
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 22
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
