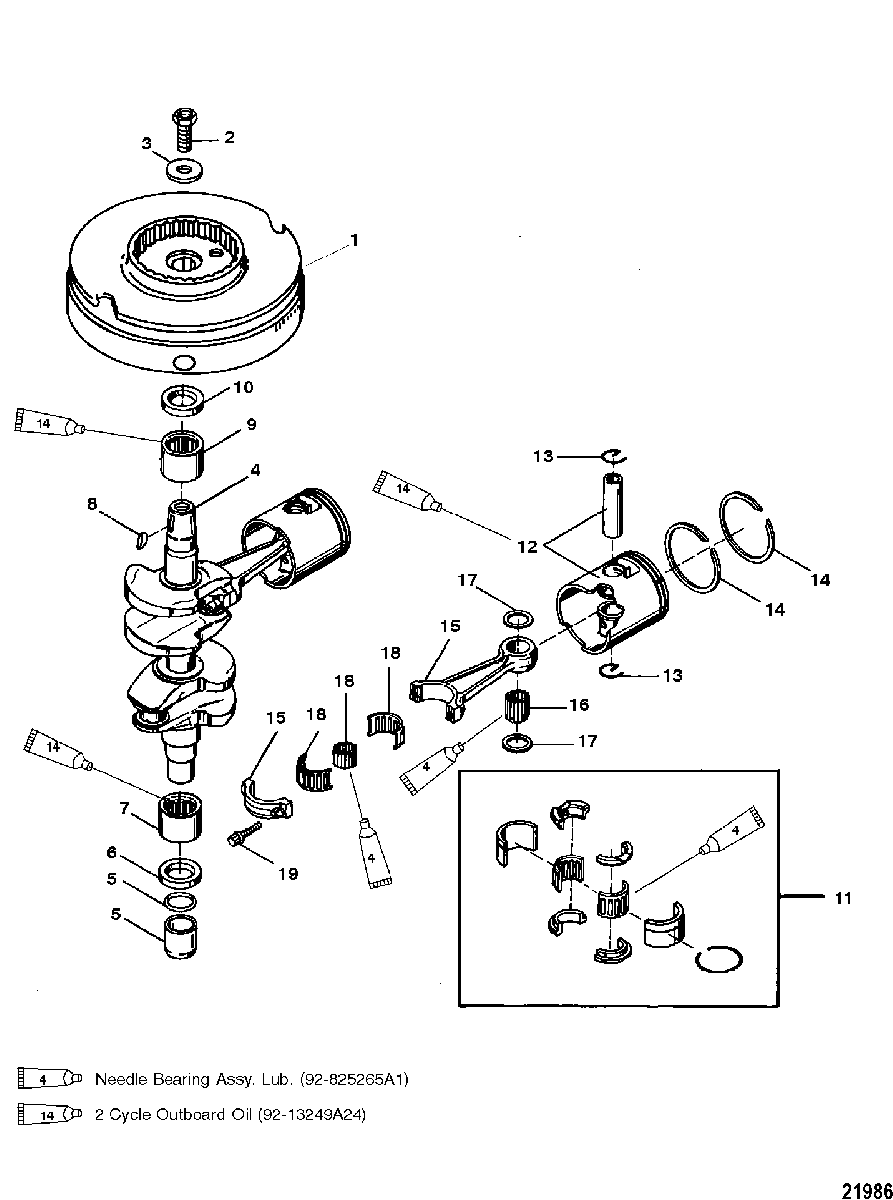

Crankshaft, Pistons and Flywheel для Mariner - 15 MARATHON 0G044365 THRU 0G437999

  • №
    Артикул
    Название
  • 1
    258-859232T15 FLYWHEEL
    FLYWHEEL
  • 2
    10-97359A1 SCREW ASSEMBLY, Flywheel to Crankshaft
    SCREW ASSEMBLY, Flywheel to Crankshaft
  • 3
    12-86496 WASHER, Flywheel Screw
    WASHER, Flywheel Screw
  • 4
    497-823105T1 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 5
    822445A2 WEAR SLEEVE
    WEAR SLEEVE
  • 6
    26-85107 OIL SEAL, Crankshaft - Lower
    OIL SEAL, Crankshaft - Lower
  • 7
    31-85113T ROLLER BEARING, Lower
    ROLLER BEARING, Lower
  • 8
    28-20094 KEY, Woodruff, Flywheel Drive
    KEY, Woodruff, Flywheel Drive
  • 9
    31-85114T ROLLER BEARING, Upper
    ROLLER BEARING, Upper
  • 10
    26-859741 OIL SEAL, Crankshaft-Upper
    OIL SEAL, Crankshaft-Upper
  • 11
    8M0113968 BEARING ASSEMBLY, Center Main
    BEARING ASSEMBLY, Center Main
  • 12
    767-9104T19 PISTON AND PIN ASSEMBLY
    SN# 0G202749 & Below
    PISTON AND PIN ASSEMBLY
    SN# 0G202749 & Below
  • 12
    767-879878T5 PISTON AND PIN ASSEMBLY
    SN# 0G202750 & Up
    PISTON AND PIN ASSEMBLY
    SN# 0G202750 & Up
  • 13
    40-828119 LOCK RING
    LOCK RING
  • 14
    39-827491A12 PISTON RING
    PISTON RING
  • 15
    630-8835A4 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    29-98295 NEEDLE BEARING, Piston End
    NEEDLE BEARING, Piston End
  • 17
    12-8M0012294 BEARING, Locating - Needle Bearing
    BEARING, Locating - Needle Bearing
  • 18
    31-879877A1 ROLLER BEARING ASSEMBLY
    ROLLER BEARING ASSEMBLY
  • 19
    10-91012 SCREW, (.250-28 Special)
    SCREW, (.250-28 Special)
  • -
    27-41670A94 GASKET SET
    GASKET SET
  • -
    879731T97 POWERHEAD
    SN# 0G202749 & Below
    POWERHEAD
    SN# 0G202749 & Below
  • -
    879731T97 POWERHEAD
    SN# 0G202750 & Up
    POWERHEAD
    SN# 0G202750 & Up
