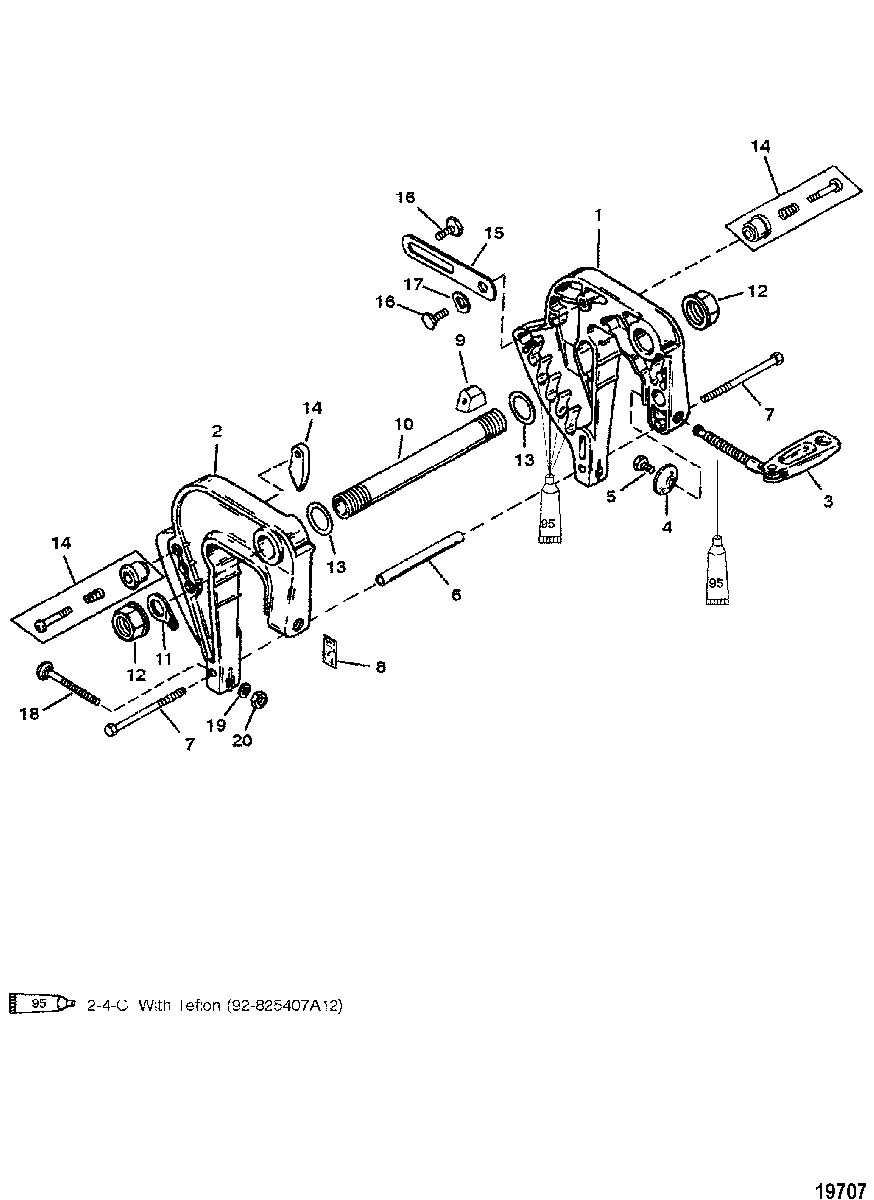

Clamp Bracket Assembly для Mariner - 15 MARATHON 0G044365 THRU 0G437999

  • №
    Артикул
    Название
  • 1
    3404-8894A8 CLAMP BRACKET
    (PORT - BLACK)
    CLAMP BRACKET
    (PORT - BLACK)
  • 1
    3404-8894A8 CLAMP BRACKET
    (PORT - GRAY)
    CLAMP BRACKET
    (PORT - GRAY)
  • 2
    3403-8892A6 CLAMP BRACKET
    (STBD. - BLACK)
    CLAMP BRACKET
    (STBD. - BLACK)
  • 2
    3403-8892A6 CLAMP BRACKET
    (STBD. - GRAY)
    CLAMP BRACKET
    (STBD. - GRAY)
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
    THUMB SCREW ASSEMBLY, (16 mm)
  • 4
    12-818884 WASHER, Thumb Screw
    WASHER, Thumb Screw
  • 5
    10-768042 SCREW, Hex Shoulder
    SCREW, Hex Shoulder
  • 6
    23-8M0084719 SPACER
    SPACER
  • 7
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 8
    37-12869 DECAL (TILT)
    DECAL (TILT)
  • 9
    814427 SHUTTLE, Tilt Lock
    SHUTTLE, Tilt Lock
  • 10
    42078 TILT TUBE
    TILT TUBE
  • 11
    54-8M0085928 CLIP, Safety
    CLIP, Safety
  • 12
    11-93164 NUT, (.875), Tilt Tube
    NUT, (.875), Tilt Tube
  • 13
    12-71421 WASHER, Nylon, Tilt Tube
    WASHER, Nylon, Tilt Tube
  • 14
    42390A1 LEVER ASSEMBLY, Tilt Return
    LEVER ASSEMBLY, Tilt Return
  • 15
    90901 STRAP, Tilt Stop - Port Side
    STRAP, Tilt Stop - Port Side
  • 16
    10-42498 SCREW, (M6 x 1.0), Strap to Clamp Bracket
    SCREW, (M6 x 1.0), Strap to Clamp Bracket
  • 17
    13-31030 WAVE WASHER, , Tilt Stop Strap Screw
    WAVE WASHER, , Tilt Stop Strap Screw
  • 18
    10-43216 BOLT, (.250-20 x 3.50), Clamp Bracket to Transom
    BOLT, (.250-20 x 3.50), Clamp Bracket to Transom
  • 19
    12-67983 WASHER, Clamp Bracket Bolt
    WASHER, Clamp Bracket Bolt
  • 20
    11-8267118 NUT, (.250-20), Clamp Bracket Bolt
    NUT, (.250-20), Clamp Bracket Bolt
