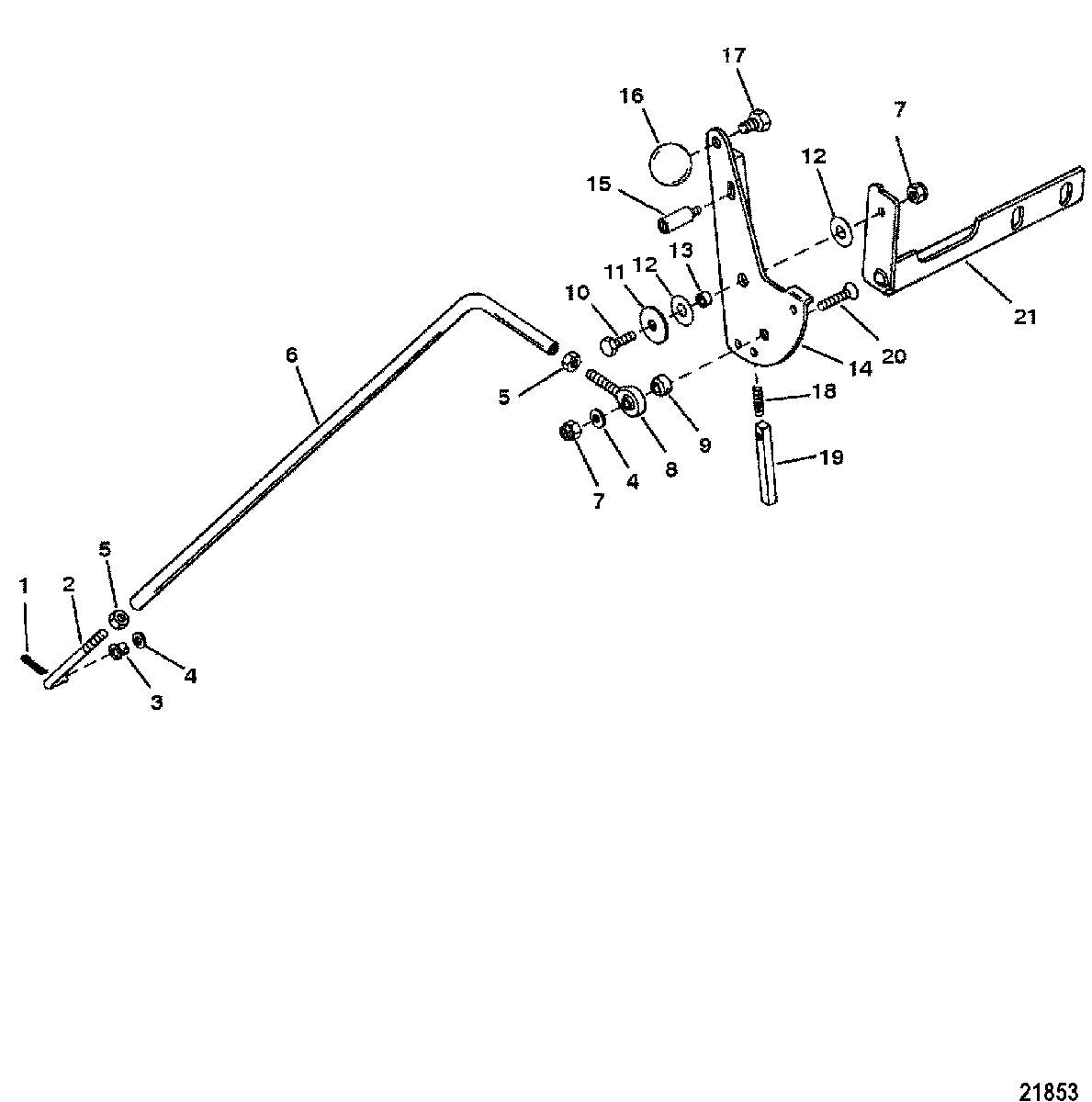

Jet Linkage(S/N 0G157845 & Below) для Mariner - 15 MARATHON XD 9927000 THRU 0P016999
-
№АртикулНазвание
-
118-210711 COTTER PINCOTTER PIN
-
2801428 ROD ENDROD END
-
323-90770 BUSHINGBUSHING
-
412-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
511-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
6801429 SHIFT RODSHIFT ROD
-
711-8267098 NUT, (.250-20)NUT, (.250-20)
-
8801426 ROD ENDROD END
-
923-801425 SPACERSPACER
-
1010-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1112-801422 WASHERWASHER
-
1212-801421 WASHERWASHER
-
1323-801420 BUSHINGBUSHING
-
14801423 LEVER ASSEMBLYLEVER ASSEMBLY
-
1510-827369 SCREWSCREW
-
16801424 KNOBKNOB
-
1710-88743 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
1824-78810 SPRINGSPRING
-
19827370 SHAFTSHAFT
-
2010-821035 SCREW (1/4-20 X 1-1/4)SCREW (1/4-20 X 1-1/4)
-
21801419 LEVER MOUNTLEVER MOUNT
