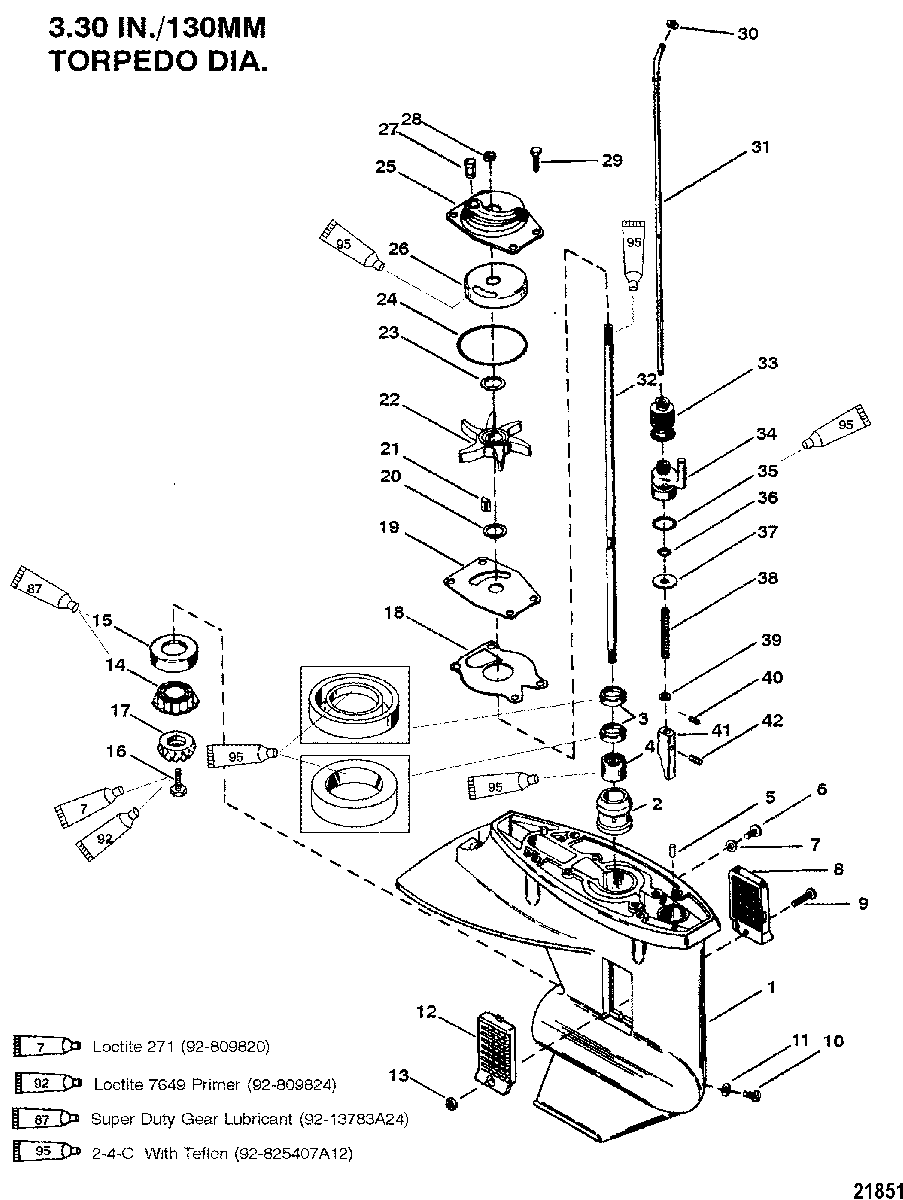

Gear Housing(Driveshaft)(2.25:1 Gear Ratio) для Mariner - 15 MARATHON XD 9927000 THRU 0P016999
-
№АртикулНазвание
-
-1665-8669T26 GEAR HOUSING ASSEMBLY
(SHORT - BLACK)GEAR HOUSING ASSEMBLY
(SHORT - BLACK) -
-1665-8669T28 GEAR HOUSING ASSEMBLY
(LONG - BLACK)GEAR HOUSING ASSEMBLY
(LONG - BLACK) -
-1665-8669T26 GEAR HOUSING ASSEMBLY
(SHORT - GRAY)GEAR HOUSING ASSEMBLY
(SHORT - GRAY) -
-1665-8669T28 GEAR HOUSING ASSEMBLY
(LONG - GRAY)GEAR HOUSING ASSEMBLY
(LONG - GRAY) -
-1665-8669A30 GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK)GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY)GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY) -
11665-8669A39 GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY) -
2NSS NOT SOLD SEPARATE, SleeveNOT SOLD SEPARATE, Sleeve
-
326-99325 SEALSEAL
-
431-41326 BEARING, RollerBEARING, Roller
-
517-8M0084726 PIN, Dowel (.187 x .530)PIN, Dowel (.187 x .530)
-
610-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
712-191833 WASHER, FiberWASHER, Fiber
-
835-41133 SCREEN, Water Inlet PortSCREEN, Water Inlet Port
-
910-40031112 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1022-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1112-191833 WASHER, FiberWASHER, Fiber
-
1235-41134 SCREENSCREEN
-
1311-400263 NUT, (M5)NUT, (M5)
-
1431-98294A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
15NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1610-49908 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
1743-98302 GEAR, Pinion (12 TEETH)GEAR, Pinion (12 TEETH)
-
1827-993261 GASKETGASKET
-
1985083 FACE PLATEFACE PLATE
-
2012-866451 WASHERWASHER
-
2128-8M0032838 KEYKEY
-
2247-8508910 IMPELLERIMPELLER
-
2312-866451 WASHERWASHER
-
2425-69202 O-RINGO-RING
-
2546-99157A02 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
26NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
2726-85090001 SEALSEAL
-
2825-86203 O-RING, RUBBERO-RING, RUBBER
-
2910-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
3012-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3167-851263 SHIFT SHAFT
(SHORT SHAFT)SHIFT SHAFT
(SHORT SHAFT) -
31862933 SHIFT SHAFT
(LONG SHAFT)SHIFT SHAFT
(LONG SHAFT) -
3245-99199 DRIVESHAFT
(SHORT SHAFT)DRIVESHAFT
(SHORT SHAFT) -
3245-99198 DRIVESHAFT
(LONG SHAFT)DRIVESHAFT
(LONG SHAFT) -
3385552001 BOOTBOOT
-
3493878 RETAINERRETAINER
-
3525-35276 O-RING, (.734 x .139)O-RING, (.734 x .139)
-
3625-85594 O-RING, (.239 x .174)O-RING, (.239 x .174)
-
3712-85091 WASHERWASHER
-
3824-93007 SPRINGSPRING
-
3912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4017-85593 PIN, (.078 x .437)PIN, (.078 x .437)
-
4185562A2 SHIFT CAMSHIFT CAM
-
4217-85096 PIN, DrivePIN, Drive
-
-27-41499A88 GASKET SETGASKET SET
-
-26-85090A2 SEAL KITSEAL KIT
-
-46-99157T2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
