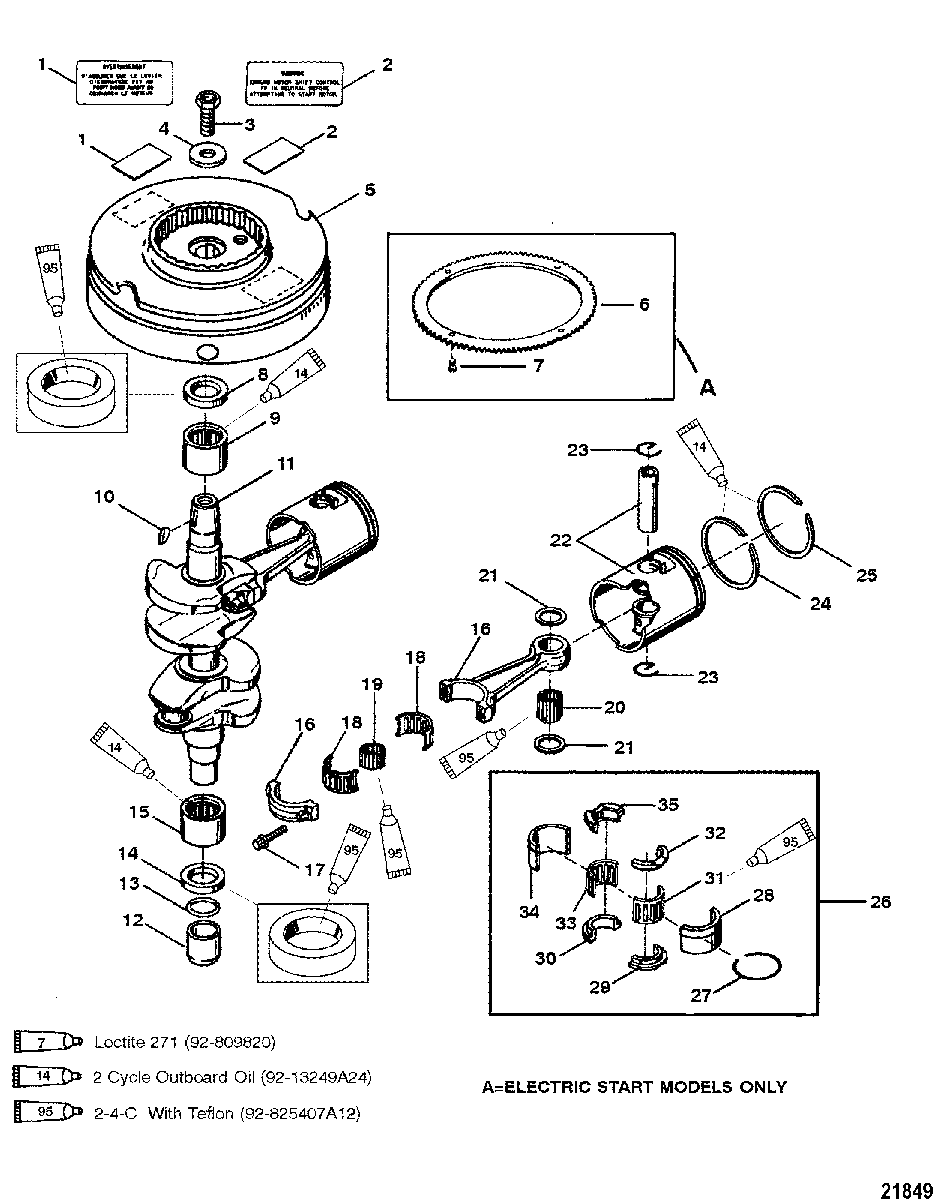

Crankshaft, Pistons and Flywheel для Mariner - 15 MARATHON XD 9927000 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Decal-Warning
    NOT SOLD SEPARATE, Decal-Warning
  • 2
    NSS NOT SOLD SEPARATE, Decal-Warning
    NOT SOLD SEPARATE, Decal-Warning
  • 3
    10-97359A1 SCREW ASSEMBLY
    SCREW ASSEMBLY
  • 4
    12-86496 WASHER
    WASHER
  • 5
    258-859232T15 FLYWHEEL
    FLYWHEEL
  • 6
    43-99301 RING GEAR
    ELECTRIC
    RING GEAR
    ELECTRIC
  • 7
    10-88190313 SCREW, (M5 x 13)
    ELECTRIC
    SCREW, (M5 x 13)
    ELECTRIC
  • 8
    26-859741 SEAL, Oil (QTY. OF 2 USED ON ELECTRIC RC)
    SEAL, Oil (QTY. OF 2 USED ON ELECTRIC RC)
  • 9
    31-85114T BEARING, Roller - Upper
    BEARING, Roller - Upper
  • 10
    28-20094 KEY, Woodruff
    KEY, Woodruff
  • 11
    464-8978T2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 12
    822445A1 WEAR SLEEVE
    WEAR SLEEVE
  • 13
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 14
    26-85107 SEAL, Oil, LOWER
    SEAL, Oil, LOWER
  • 15
    31-85113T BEARING, Roller
    BEARING, Roller
  • 16
    630-8835A4 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 17
    10-91012 SCREW, (.250-28 Special)
    SCREW, (.250-28 Special)
  • 18
    31-879877A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 19
    NSS NOT SOLD SEPARATE, Roller
    NOT SOLD SEPARATE, Roller
  • 20
    29-98295 BEARING, Needle
    BEARING, Needle
  • 21
    12-8M0012294 BEARING
    BEARING
  • 22
    767-9104T19 PISTON ASSEMBLY
    SN# USA-0G202749/BEL-9855586 & Below
    PISTON ASSEMBLY
    SN# USA-0G202749/BEL-9855586 & Below
  • 22
    767-879878T5 PISTON ASSEMBLY
    (Standard) SN# USA-0G202750/BEL-9855587 & Up
    PISTON ASSEMBLY
    (Standard) SN# USA-0G202750/BEL-9855587 & Up
  • 22
    767-879878A6 PISTON ASSEMBLY
    (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up
    PISTON ASSEMBLY
    (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up
  • 23
    40-828119 LOCK RING, Piston Pin
    SN# USA-0G202749/BEL-9855586 & Below
    LOCK RING, Piston Pin
    SN# USA-0G202749/BEL-9855586 & Below
  • 23
    40-828119 LOCK RING, Piston Pin
    SN# USA-0G202750/BEL-9855587 & Up
    LOCK RING, Piston Pin
    SN# USA-0G202750/BEL-9855587 & Up
  • 24
    39-827491A12 RING SET, Piston
    SN# USA-0G202749/BEL-9855586 & Below
    RING SET, Piston
    SN# USA-0G202749/BEL-9855586 & Below
  • 24
    39-827491A12 RING SET, Piston
    (Standard) SN# USA-0G202750/BEL-9855587 & Up
    RING SET, Piston
    (Standard) SN# USA-0G202750/BEL-9855587 & Up
  • 24
    39-18652A2 RING SET, Piston
    (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up
    RING SET, Piston
    (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up
  • 25
    NSS NOT SOLD SEPARATE, Piston Ring
    NOT SOLD SEPARATE, Piston Ring
  • 26
    8M0113968 BEARING ASSEMBLY, Center Main
    BEARING ASSEMBLY, Center Main
  • 27
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 28
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 29
    NSS NOT SOLD SEPARATE, Thrust Washer
    NOT SOLD SEPARATE, Thrust Washer
  • 30
    NSS NOT SOLD SEPARATE, Thrust Washer
    NOT SOLD SEPARATE, Thrust Washer
  • 31
    NSS NOT SOLD SEPARATE, Needle Roller
    NOT SOLD SEPARATE, Needle Roller
  • 32
    NSS NOT SOLD SEPARATE, Thrust Washer
    NOT SOLD SEPARATE, Thrust Washer
  • 33
    NSS NOT SOLD SEPARATE, Needle Roller
    NOT SOLD SEPARATE, Needle Roller
  • 34
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 35
    NSS NOT SOLD SEPARATE, Thrust Washer
    NOT SOLD SEPARATE, Thrust Washer
  • -
    27-41499A88 GASKET SET
    GASKET SET
  • -
    804946T01 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
