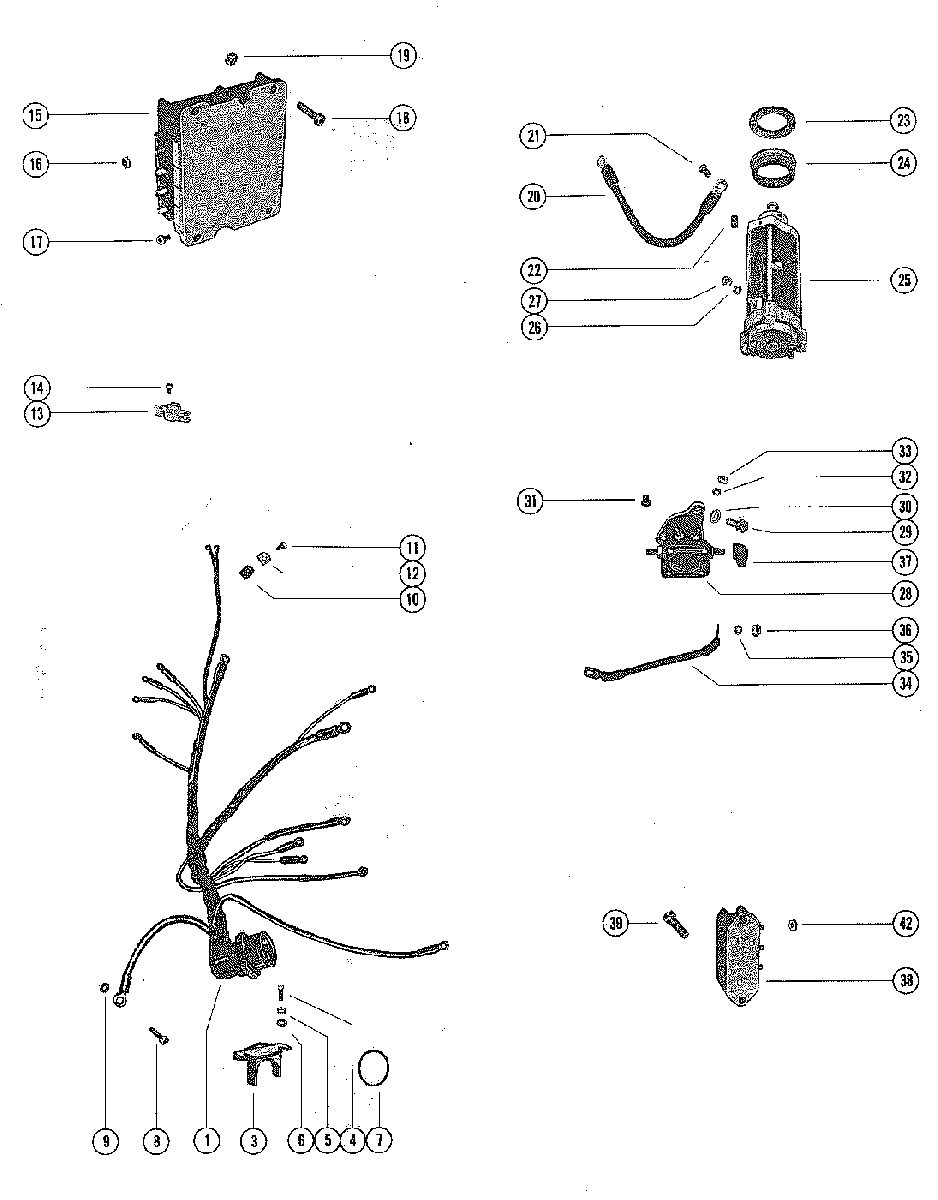

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mariner - 140 5088444 THRU 5443029

  • №
    Артикул
    Название
  • 1
    84-69236A1 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 3
    54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL
    CLAMP, WIRING HARNESS TO BOTTOM COWL
  • 4
    10-690201 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 5
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 6
    12-30164 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 7
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 8
    10-98256 SCREW, GROUND WIRE TO BOTTOM COWL
    SCREW, GROUND WIRE TO BOTTOM COWL
  • 9
    13-26992 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 10
    54-648552 CLIP, STATOR LEADS TO BLOCK (1/8")
    CLIP, STATOR LEADS TO BLOCK (1/8")
  • 11
    10-62568 SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")
    SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")
  • 12
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW 1
    "D" WASHER, WIRING HARNESS CLIP SCREW 1
  • 13
    45559 TERMINAL BLOCK, STATOR LEADS
    TERMINAL BLOCK, STATOR LEADS
  • 14
    10-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
    SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
  • 15
    332-2986A21 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 16
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 17
    10-29794 SCREW, SWITCH BOX (3/8")
    SCREW, SWITCH BOX (3/8")
  • 18
    10-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")
    SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")
  • 19
    11-20184 NUT, SWITCH BOX SCREW
    NUT, SWITCH BOX SCREW
  • 20
    84-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
    CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
  • 21
    10-69035 SCREW, WIRE CABLE TO STARTER MOTOR
    SCREW, WIRE CABLE TO STARTER MOTOR
  • 22
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 23
    23-56774 SPACER, COLLAR TO TOP MOUNTING CAP
    SPACER, COLLAR TO TOP MOUNTING CAP
  • 24
    23-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNT
    COLLAR, RUBBER - STARTER MOTOR MOUNT
  • 25
    50-898265010 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 26
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 27
    11-64015 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 28
    89-853654A1 SOLENIOD, STARTER
    SOLENIOD, STARTER
  • 29
    10-38601 SCREW, SOLENOID TO BOTTOM COWL (5/8")
    SCREW, SOLENOID TO BOTTOM COWL (5/8")
  • 30
    13-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREW
    LOCKWASHER, STARTER SOLENOID FASTENING SCREW
  • 31
    269011 BUMPER, RUBBER - STARTER SOLENOID
    BUMPER, RUBBER - STARTER SOLENOID
  • 32
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 33
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 34
    84-93388A8 CABLE, WIRE - STARTER MOTOR TO SOLENOID
    CABLE, WIRE - STARTER MOTOR TO SOLENOID
  • 35
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 36
    11-68292 NUT, SOLENOID TERMINAL (5/16")
    NUT, SOLENOID TERMINAL (5/16")
  • 37
    46265 BOOT, SOLENOID TERMINAL
    BOOT, SOLENOID TERMINAL
  • 38
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 39
    10-37656 SCREW, RECTIFIER TO FRONT BRACKET (5/8")
    SCREW, RECTIFIER TO FRONT BRACKET (5/8")
  • 42
    11-45076 NUT, STATOR LEADS TO RECTIFIER
    NUT, STATOR LEADS TO RECTIFIER
