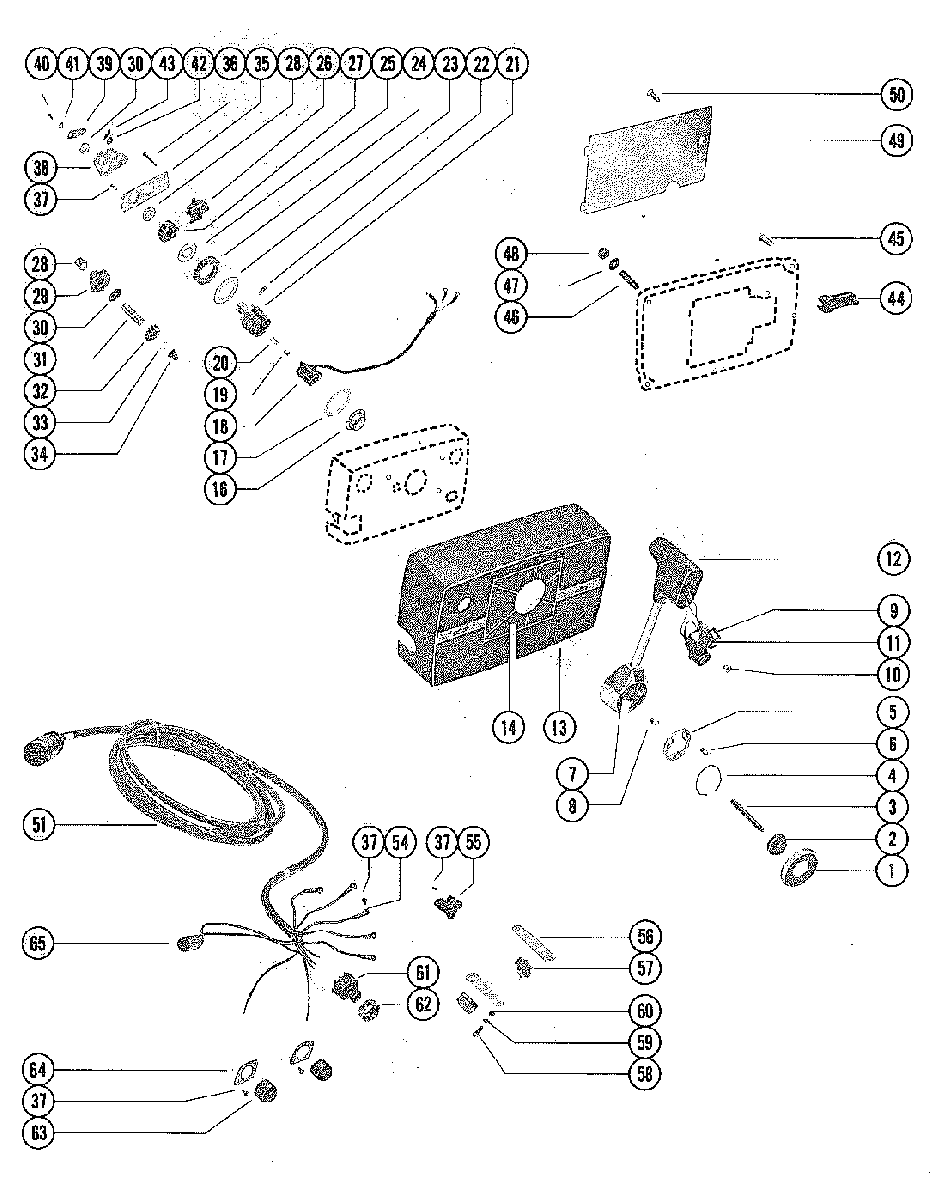

REMOTE CONTROL ASSEMBLY (ELECTRIC) (USE ON MARINER 115) для Mariner - 140 5088444 THRU 5443029

  • №
    Артикул
    Название
  • -
    78025A REMOTE CONTROL ASSEMBLY, COMPLETE (ELECTRIC)
    A-78025A REMOTE CONTROL IS AVAILABLE IN LENGTHS OF 10', 15', 20' AND 40'.eFOR USE ON MARINER 115 WITH POWER TRIM.
    REMOTE CONTROL ASSEMBLY, COMPLETE (ELECTRIC)
    A-78025A REMOTE CONTROL IS AVAILABLE IN LENGTHS OF 10', 15', 20' AND 40'.eFOR USE ON MARINER 115 WITH POWER TRIM.
  • 1
    85006 COVER, ASSEMBLY, HUB
    COVER, ASSEMBLY, HUB
  • 2
    65676 BOOT, RUBBER - SHAFT
    BOOT, RUBBER - SHAFT
  • 3
    65673 SHAFT
    SHAFT
  • 4
    56773 RETAINER , HUB COVER
    RETAINER , HUB COVER
  • 5
    65954 PLATE, CONTROL HANDLE
    PLATE, CONTROL HANDLE
  • 6
    10-70903 SCREW, PLATE TO CONTROL HANDLE (1/2")
    SCREW, PLATE TO CONTROL HANDLE (1/2")
  • 7
    65955 CONNECTOR
    CONNECTOR
  • 8
    10-20650 SCREW, CONNECTOR TO DISCONNECT (3/8")
    SCREW, CONNECTOR TO DISCONNECT (3/8")
  • 9
    74646 RETAINER, PUSH BUTTON SWITCHES
    RETAINER, PUSH BUTTON SWITCHES
  • 10
    10-77444 SCREW, RETAINER TO CONTROL HANDLE (5/16")
    SCREW, RETAINER TO CONTROL HANDLE (5/16")
  • 11
    87-68691 SWITCH, PUSH BUTTON (BLACK)
    SWITCH, PUSH BUTTON (BLACK)
  • 11
    87-68033 SWITCH, PUSH BUTTOM (RED)
    SWITCH, PUSH BUTTOM (RED)
  • 12
    55719 HANDLE, CONTROL
    HANDLE, CONTROL
  • 13
    68034 COVER, REMOTE CONTROL
    COVER, REMOTE CONTROL
  • 14
    37-77992 DECAL, REMOTE CONTROL COVER (NOT AS SHOWN)
    DECAL, REMOTE CONTROL COVER (NOT AS SHOWN)
  • 16
    23-55399 BUSHING, NYLON - PORT CONTROL HOUSING
    BUSHING, NYLON - PORT CONTROL HOUSING
  • 17
    68026 PLATE, RETAINING - DISCONNECT PLUG
    PLATE, RETAINING - DISCONNECT PLUG
  • 18
    65672 PLUG, DISCONNECT
    PLUG, DISCONNECT
  • 19
    17-68672 PIN, CONTROL HUB
    PIN, CONTROL HUB
  • 20
    24-73190 SPRING, CONTROL HUB
    SPRING, CONTROL HUB
  • 21
    65665 HUB, CONTROL
    HUB, CONTROL
  • 22
    28-68024 KEY, CONTROL HUB
    KEY, CONTROL HUB
  • 23
    12-68025 WASHER, CONTROL HUB
    WASHER, CONTROL HUB
  • 24
    43-65731 GEAR, THROTTLE
    GEAR, THROTTLE
  • 25
    12-65986 WASHER, NYLON - CONTROL HUB
    WASHER, NYLON - CONTROL HUB
  • 26
    68876A1 DETENT ASSEMBLY
    DETENT ASSEMBLY
  • 27
    43-65733 GEAR, SHIFT
    GEAR, SHIFT
  • 28
    23-74647 BUSHING, NYLON - SUPPORT PLATE
    BUSHING, NYLON - SUPPORT PLATE
  • 29
    43-65734 PINION GEAR, SHIFT
    PINION GEAR, SHIFT
  • 30
    12-68032 WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 31
    65730 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 32
    43-65732 PINION GEAR, THROTTLE
    PINION GEAR, THROTTLE
  • 33
    53-46250 RING, RETAINING - THROTTLE PINION
    RING, RETAINING - THROTTLE PINION
  • 34
    23-65830 BUSHING, NYLON - THROTTLE SHAFT
    BUSHING, NYLON - THROTTLE SHAFT
  • 35
    65832 PLATE, SUPPORT SHAFT AND DETENT
    PLATE, SUPPORT SHAFT AND DETENT
  • 36
    10-73013 SCREW, PLATE TO CONTROL HOUSING (1 1/2")
    SCREW, PLATE TO CONTROL HOUSING (1 1/2")
  • 37
    10-69079 SCREW (7/16")
    SCREW (7/16")
  • 38
    65655A1 LEVER ASSEMBLY, SHIFT
    LEVER ASSEMBLY, SHIFT
  • 39
    65657A1 LEVER ASSEMBLY, THROTTLE
    LEVER ASSEMBLY, THROTTLE
  • 40
    10-37571 SCREW, THROTTLE LEVER TO THROTTLE SCREW (1/2")
    SCREW, THROTTLE LEVER TO THROTTLE SCREW (1/2")
  • 41
    12-72761 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 42
    12-35950 WASHER, CABLE ATTACHING
    WASHER, CABLE ATTACHING
  • 43
    18-210711 COTTER PIN, CABLE ATTACHING
    COTTER PIN, CABLE ATTACHING
  • 44
    68023 HOUSING, CABLE
    HOUSING, CABLE
  • 45
    10-35386 SCREW, CONTROL HOUSING ATTACHING (1")
    SCREW, CONTROL HOUSING ATTACHING (1")
  • 46
    16-29208 STUD, PORT CONTROL HOUSING (2 1/2")
    STUD, PORT CONTROL HOUSING (2 1/2")
  • 47
    12-26168 WASHER, PORT CONTROL HOUSING STUD
    WASHER, PORT CONTROL HOUSING STUD
  • 48
    11-29250 NUT, PORT CONTROL HOUSING STUD
    NUT, PORT CONTROL HOUSING STUD
  • 49
    65956 COVER, STARBOARD CONTROL HOUSING
    COVER, STARBOARD CONTROL HOUSING
  • 50
    10-25504 SCREW, COVER ATTACHING (3/4")
    SCREW, COVER ATTACHING (3/4")
  • 51
    84-76407 WIRING HARNESS
    AVAILABLE IN LENGTHS OF 10' ,15' ,20' , AND 40'
    WIRING HARNESS
    AVAILABLE IN LENGTHS OF 10' ,15' ,20' , AND 40'
  • 54
    86-60878T TERMINAL, WIRING HARNESS
    TERMINAL, WIRING HARNESS
  • 55
    86-65738 TERMINAL BLOCK
    TERMINAL BLOCK
  • 56
    74596 PLATE, MICRO SWTICH MOUNTING
    PLATE, MICRO SWTICH MOUNTING
  • 57
    87-74605 SWITCH, MICRO
    SWITCH, MICRO
  • 58
    10-90342 SCREW, MIRCO SWITCH TO PLATE (5/8")
    SCREW, MIRCO SWITCH TO PLATE (5/8")
  • 59
    13-24658 LOCKWASHER, MICRO SWITCH SCREW
    LOCKWASHER, MICRO SWITCH SCREW
  • 60
    11-63683 NUT, MICRO SWITCH SCREW WHEN ORDERING REPLACEMENT KEYS ALS
    NUT, MICRO SWITCH SCREW WHEN ORDERING REPLACEMENT KEYS ALS
  • 61
    54211T IGNITION SWITCH(WITH KEYS) KEY PART #C-30431
    WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
    IGNITION SWITCH(WITH KEYS) KEY PART #C-30431
    WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
  • 62
    68863 BEZEL, IGNITION SWITCH
    BEZEL, IGNITION SWITCH
  • 63
    55738A1 SWITCH ASSEMBLY, PUSH BUTTON
    SWITCH ASSEMBLY, PUSH BUTTON
  • 64
    55691 COVER, PUSH BUTTON SWITCH
    COVER, PUSH BUTTON SWITCH
  • 65
    84-76353 HARNESS, TRIM
    AVAILALBE IN LENGTHS OF 10' , 15' ,25' , & 45'
    HARNESS, TRIM
    AVAILALBE IN LENGTHS OF 10' , 15' ,25' , & 45'
