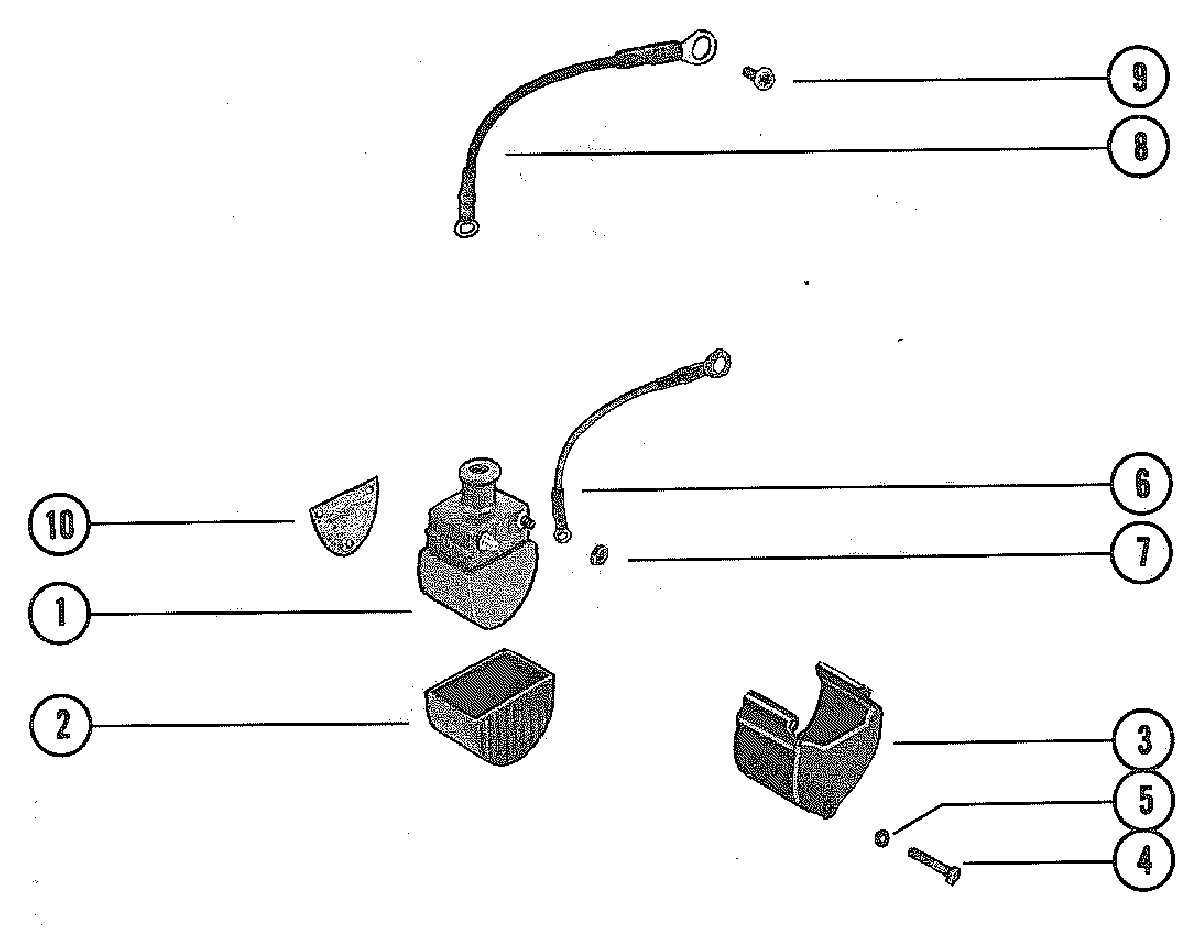

IGNITION COIL для Mariner - 140 5088444 THRU 5443029

  • №
    Артикул
    Название
  • 1
    332-4895T2 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 2
    72015 PAD, RUBBER - IGNITION COIL
    PAD, RUBBER - IGNITION COIL
  • 3
    63195 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 4
    10-88856 SCREW, COIL TO CYLINDER BLOCK (2")
    SCREW, COIL TO CYLINDER BLOCK (2")
  • 5
    12-30164 WASHER, COIL SCREW
    WASHER, COIL SCREW
  • 6
    84-60466A1 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 7
    11-45076 NUT, IGNITION COIL TERMINAL (#10)
    NUT, IGNITION COIL TERMINAL (#10)
  • 8
    84-66054A2 CABLE ASSEMBLY, COIL TO SWITCH BOX
    CABLE ASSEMBLY, COIL TO SWITCH BOX
  • 9
    10-62568 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8)
    SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8)
  • 10
    69190 PLATE, COIL MOUNTING
    PLATE, COIL MOUNTING
  • 1
    32-877682Q8 FUEL LINE ASSEMBLY (8 )
    FUEL LINE ASSEMBLY (8 )
  • 1
    32-877682Q12 FUEL LINE ASSMBLY (12 )
    FUEL LINE ASSMBLY (12 )
  • 2
    89396Q01 PRIMER BULB ASSEMBLY
    PRIMER BULB ASSEMBLY
  • 3
    21-13883A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 4
    21-13883A4 FITTING, FUEL LINE TO PRIMER BULB
    FITTING, FUEL LINE TO PRIMER BULB
  • 5
    54-27764 CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
    CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
  • 6
    54-55206 CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
    CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
  • 7
    22-63187 CONNECTOR, FUEL LINE (FUEL TANK END)
    CONNECTOR, FUEL LINE (FUEL TANK END)
  • 8
    22-63186 CONNECTOR, FUEL LINE (ENGINE END)
    CONNECTOR, FUEL LINE (ENGINE END)
  • 9
    54-55206 CLAMP, FUEL LINE TO CONNECTOR
    CLAMP, FUEL LINE TO CONNECTOR
  • 10
    30185Q3 BAYONET BODY ASSEMBLY (FUEL TANK END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    BAYONET BODY ASSEMBLY (FUEL TANK END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 11
    30185Q3 STEM, BAYONET BODY
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    STEM, BAYONET BODY
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 12
    25-16524 "O" RING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    "O" RING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 13
    24-30189 SPRING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    SPRING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 14
    30188 WASHER, CUPPED - BAYONET SPRING
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    WASHER, CUPPED - BAYONET SPRING
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 15
    22831Q3 CHECK UNIT ASSEMBLY (ENGINE END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    CHECK UNIT ASSEMBLY (ENGINE END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
