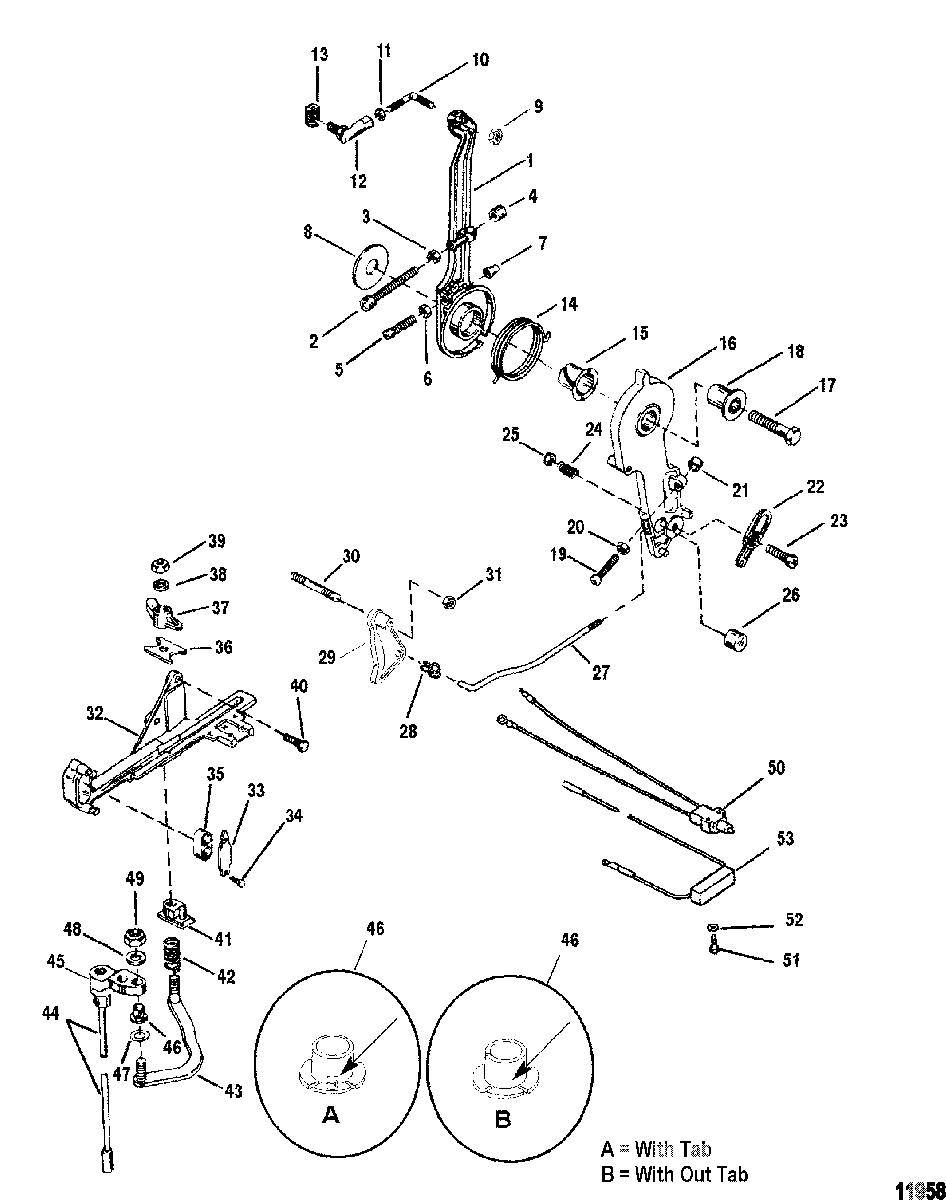

Throttle Lever And Shift Shaft для Mariner - 140 JET 0G303046 THRU 0G760299
-
№АртикулНазвание
-
32814283A2 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
3398889 LATCHLATCH
-
3410-42975 DRIVE SCREWDRIVE SCREW
-
3539519 CUPCUP
-
3652100 WEAR PLATEWEAR PLATE
-
378M0036768 LATCHLATCH
-
3812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3911-826709109 NUT, (.250-28)NUT, (.250-28)
-
4010-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
41814284 GUIDE BLOCKGUIDE BLOCK
-
4224-20099 SPRINGSPRING
-
4367073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4479932A16 SHIFT SHAFT ASSEMBLY
(Long) (Use With Reference #46; With Tab; See Bubble A)SHIFT SHAFT ASSEMBLY
(Long) (Use With Reference #46; With Tab; See Bubble A) -
4479932A17 SHIFT SHAFT ASSEMBLY
(X-Long) Use With Reference #46;With Tab; SSee Bubble A)SHIFT SHAFT ASSEMBLY
(X-Long) Use With Reference #46;With Tab; SSee Bubble A) -
45NSS NOT SOLD SEPARATE, Shift Lever (Upper)
(Use With Refference #46; With Tab; See Bubble A)NOT SOLD SEPARATE, Shift Lever (Upper)
(Use With Refference #46; With Tab; See Bubble A) -
4623-26600 BUSHING
(Use With Refference #46; With Tab; See Bubble A)BUSHING
(Use With Refference #46; With Tab; See Bubble A) -
4479932A16 SHIFT SHAFT ASSEMBLY
(Long) (Use With Refference #46 Without Tab; See Bubble B)SHIFT SHAFT ASSEMBLY
(Long) (Use With Refference #46 Without Tab; See Bubble B) -
4479932A17 SHIFT SHAFT ASSEMBLY
(X-Long) Use With Refference #46;Without Tab;See Bubble B)SHIFT SHAFT ASSEMBLY
(X-Long) Use With Refference #46;Without Tab;See Bubble B) -
45NSS NOT SOLD SEPARATE, Shift Shaft Lever (Upper)
(Use With Refference #46;Without Tab;See Bubble B)NOT SOLD SEPARATE, Shift Shaft Lever (Upper)
(Use With Refference #46;Without Tab;See Bubble B) -
4623-26856 BUSHING
(Use With Refference #46;Without Tab;See Bubble B)BUSHING
(Use With Refference #46;Without Tab;See Bubble B) -
4713-29720 WAVE WASHERWAVE WASHER
-
4812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4911-826709109 NUT, (.250-28)NUT, (.250-28)
-
5087-814281A1 IDLE STABILIZING SHIFT KIT
(XR6/175 Magnum III)IDLE STABILIZING SHIFT KIT
(XR6/175 Magnum III) -
5110-77478 SCREW, (#6-32 x .875)
(XR6/175 Magnum III)SCREW, (#6-32 x .875)
(XR6/175 Magnum III) -
5212-27882 WASHER
(XR6/175 Magnum III)WASHER
(XR6/175 Magnum III) -
5317461A3 RESISTOR MODULE
(XR6/175 Magnum III)RESISTOR MODULE
(XR6/175 Magnum III)
