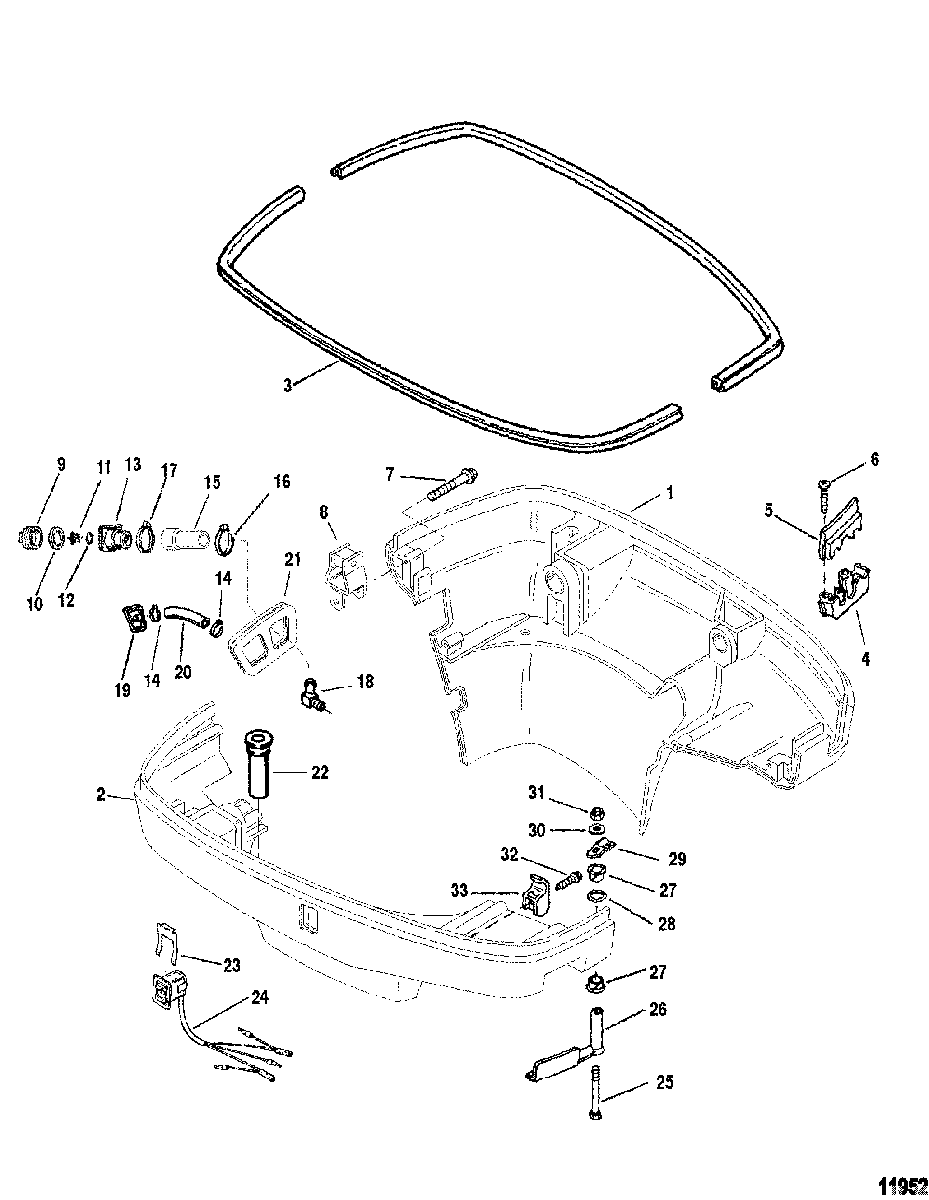

Bottom Cowl для Mariner - 140 JET 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    4022-828044A1 BOTTOM COWL, Black
    (Black, Port)
    BOTTOM COWL, Black
    (Black, Port)
  • 1
    4022-828044A1 BOTTOM COWL ASSEMBLY, Gray
    (Port)
    BOTTOM COWL ASSEMBLY, Gray
    (Port)
  • 2
    100-8M0107326 BOTTOM COWL, Black
    (Black, Starboard)
    BOTTOM COWL, Black
    (Black, Starboard)
  • 2
    4022-828045A2 BOTTOM COWL ASSEMBLY, Gray
    (Starboard)
    BOTTOM COWL ASSEMBLY, Gray
    (Starboard)
  • 3
    8M0109217 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 4
    54-822024 CLAMP
    CLAMP
  • 5
    54-822023 CLAMP
    CLAMP
  • 6
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 7
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 8
    831209 RETAINER
    RETAINER
  • 9
    19-821908 PLUG
    PLUG
  • 10
    12-821915 WASHER
    WASHER
  • 11
    8219631 CHECK VALVE
    CHECK VALVE
  • 12
    25-30641 O-RING, (.299 x .103)
    O-RING, (.299 x .103)
  • 13
    22-821952 FITTING
    FITTING
  • 14
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 15
    32-827332 HOSE, Straight
    SN# 0G437999 & Below
    HOSE, Straight
    SN# 0G437999 & Below
  • 16
    54-F698772 CLAMP, Worm Gear
    SN# 0G437999 & Below
    CLAMP, Worm Gear
    SN# 0G437999 & Below
  • 17
    54-815504212 CLAMP, Worm Gear
    SN# 0G437999 & Below
    CLAMP, Worm Gear
    SN# 0G437999 & Below
  • 18
    22-60522 ELBOW, Cylinder Block (45 Degrees)
    SN# 0G437999 & Below
    ELBOW, Cylinder Block (45 Degrees)
    SN# 0G437999 & Below
  • 15
    32-8M0039077 HOSE, S Hose
    SN# 0G438000 & Up
    HOSE, S Hose
    SN# 0G438000 & Up
  • 17
    54-815504212 CLAMP, Worm Gear
    SN# 0G438000 & Up
    CLAMP, Worm Gear
    SN# 0G438000 & Up
  • 18
    22-8320761 ELBOW, Cylinder Block
    SN# 0G438000 & Up
    ELBOW, Cylinder Block
    SN# 0G438000 & Up
  • 19
    22-8M0077650 FITTING, Tell-Tale
    FITTING, Tell-Tale
  • 20
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8.00 Inch Length)
    HOSE, (57.00 Inches Bulk) (Cut to 8.00 Inch Length)
  • 21
    889847 IDLE EXHAUST BOOT, Exhaust
    IDLE EXHAUST BOOT, Exhaust
  • 22
    21-817519A1 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 23
    8M0032848 RETAINER, Use Where Applicable
    RETAINER, Use Where Applicable
  • 24
    87-8M0042301 SWITCH
    SWITCH
  • 25
    10-824868 SCREW, (M6 x 75)
    SCREW, (M6 x 75)
  • 26
    889740A02 FRONT HANDLE, Black
    (Black)
    FRONT HANDLE, Black
    (Black)
  • 26
    889740A02 FRONT HANDLE
    (Gray)
    FRONT HANDLE
    (Gray)
  • 27
    23-335891 BUSHING
    BUSHING
  • 28
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 29
    8219423 PAWL
    PAWL
  • 30
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 31
    11-401196 NUT, (M6)
    NUT, (M6)
  • 32
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 33
    54-822873 CLIP
    CLIP
