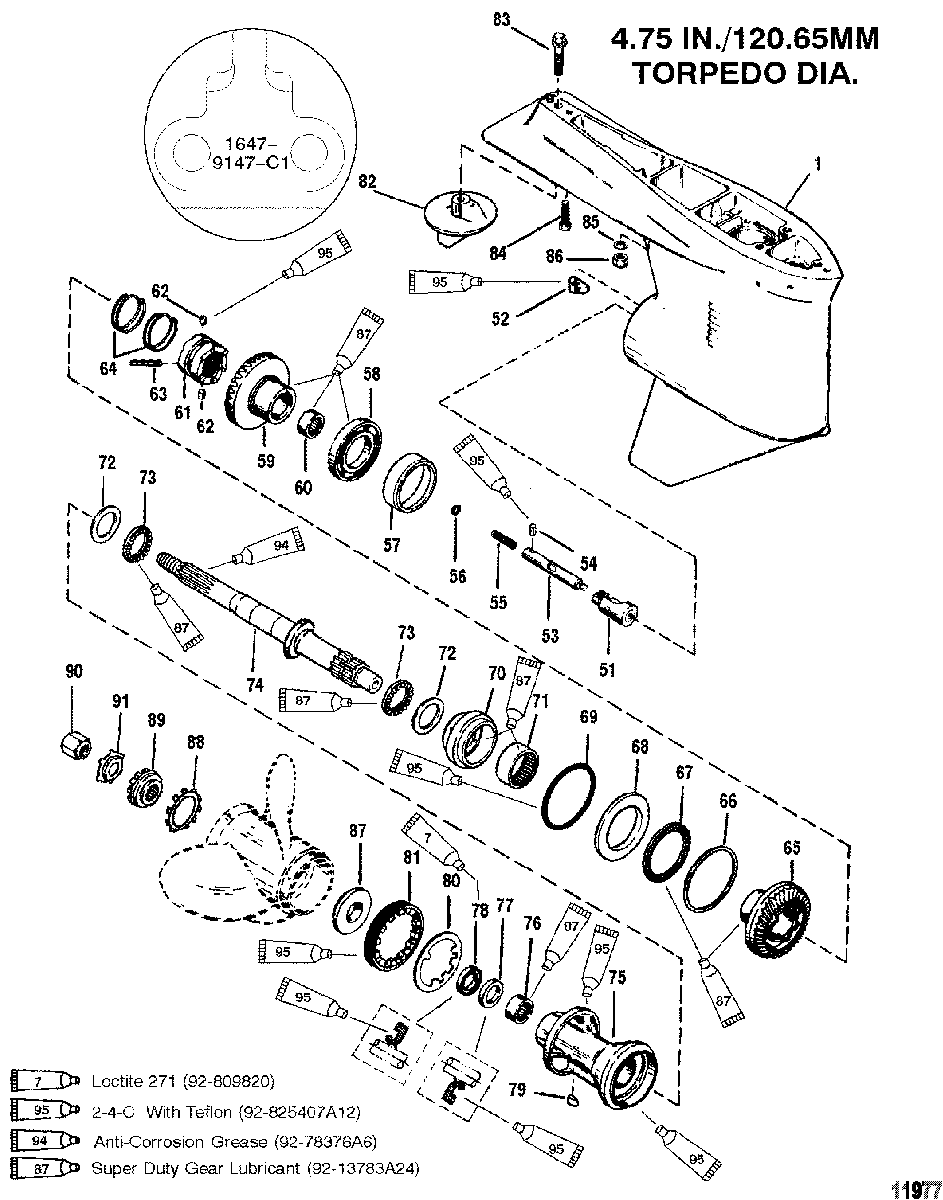

Gear Housing(Propshaft-Counter-S/N-0G437999 & Below) для Mariner - 140 JET 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (Basic, Black)
    GEAR HOUSING ASSEMBLY
    (Basic, Black)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (Basic, Gray)
    GEAR HOUSING ASSEMBLY
    (Basic, Gray)
  • 51
    89594A1 FOLLOWER ASSEMBLY
    FOLLOWER ASSEMBLY
  • 52
    789562 SHIFT CAM
    SHIFT CAM
  • 53
    79911A1 ROD
    ROD
  • 54
    17-8M0084245 PIN
    PIN
  • 55
    24-79910 SPRING
    SPRING
  • 56
    12-78910 WASHER
    WASHER
  • 57
    14469T CUP, Bearing
    CUP, Bearing
  • 58
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 59
    NSS NOT SOLD SEPARATE, Reverse Gear (Part Of 43-18572A 1)
    (135/150) (2.0:1 - 14/28)
    NOT SOLD SEPARATE, Reverse Gear (Part Of 43-18572A 1)
    (135/150) (2.0:1 - 14/28)
  • 59
    NSS NOT SOLD SEPARATE, Reverse Gear (Part Of 43-18475A 1)
    (175/200) (1.87:1 - 15/28)
    NOT SOLD SEPARATE, Reverse Gear (Part Of 43-18475A 1)
    (175/200) (1.87:1 - 15/28)
  • 60
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 61
    52-8M0100493 CLUTCH
    CLUTCH
  • 62
    17-78909 PIN, Detent
    PIN, Detent
  • 63
    17-8M0084243 PIN, Cross
    PIN, Cross
  • 64
    24-78962 SPRING
    SPRING
  • 65
    43-18572T1 GEAR ASSEMBLY, Forward
    (135/150) (2.0:1 - 14/28)
    GEAR ASSEMBLY, Forward
    (135/150) (2.0:1 - 14/28)
  • 65
    43-18475T1 GEAR ASSEMBLY, Forward
    (175/200) (1.87:1 - 15/28)
    GEAR ASSEMBLY, Forward
    (175/200) (1.87:1 - 15/28)
  • 66
    23-176151 SPACER SHIM, (.125)
    SPACER SHIM, (.125)
  • 66
    23-176152 SPACER SHIM, (.127)
    SPACER SHIM, (.127)
  • 66
    23-176153 SPACER SHIM, (.129)
    SPACER SHIM, (.129)
  • 66
    23-176154 SPACER SHIM, (.131)
    SPACER SHIM, (.131)
  • 66
    23-176155 SPACER SHIM, (.133)
    SPACER SHIM, (.133)
  • 66
    23-176156 SPACER SHIM, (.135)
    SPACER SHIM, (.135)
  • 66
    23-176157 SPACER SHIM, (.137)
    SPACER SHIM, (.137)
  • 66
    23-176158 SPACER SHIM, (.139)
    SPACER SHIM, (.139)
  • 66
    23-176159 SPACER SHIM, (.141)
    SPACER SHIM, (.141)
  • 66
    23-1761510 SPACER SHIM, (.143)
    SPACER SHIM, (.143)
  • 66
    23-1761511 SPACER SHIM, (.145)
    SPACER SHIM, (.145)
  • 66
    23-1761512 SPACER SHIM, (.147)
    SPACER SHIM, (.147)
  • 66
    23-1761513 SPACER SHIM, (.149)
    SPACER SHIM, (.149)
