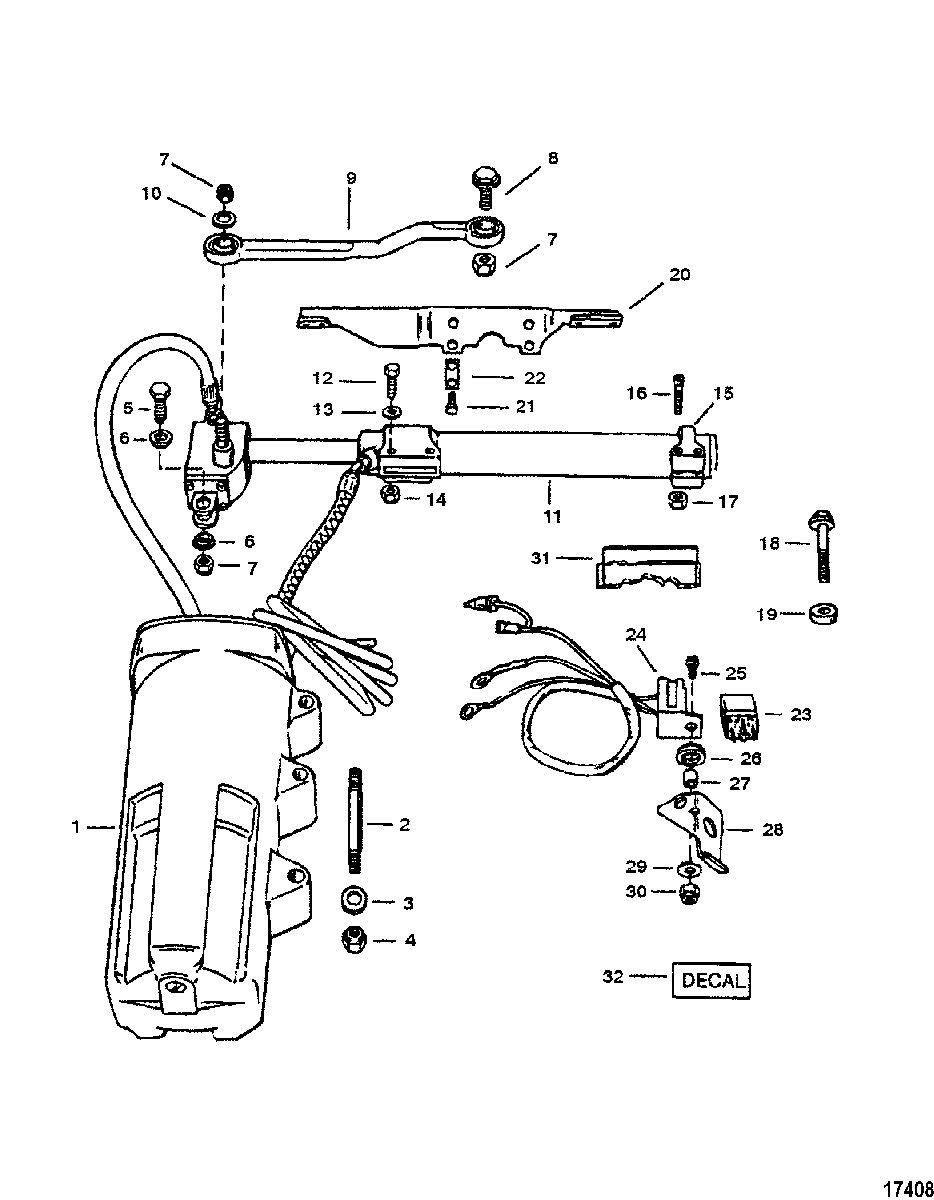

TRANSOM MOUNT POWER STEERING KIT для Mariner - 140 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-17443A15 POWER STEERING KITPOWER STEERING KIT
-
1811290 ACCUMULATORACCUMULATOR
-
216-17772 STUDSTUD
-
312-4002319 WASHERWASHER
-
411-40140 NUT, (M10)NUT, (M10)
-
510-94319 SCREW, (.375-24 x 1.5)SCREW, (.375-24 x 1.5)
-
623-17405 SPACERSPACER
-
711-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
810-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
992876A4 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
1012-68300 WASHER, (..88 x .39 x .06)WASHER, (..88 x .39 x .06)
-
11828588A2 ACTUATORACTUATOR
-
-811632A1 REPAIR KITREPAIR KIT
-
1210-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1312-4002315 WASHERWASHER
-
1411-401386 NUT, (M6)NUT, (M6)
-
15811292 CLAMPCLAMP
-
1610-818182 SCREWSCREW
-
1711-400263 NUT, (M5)NUT, (M5)
-
1810-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
1923-66751 SPACER, (.250 x .390 x .630) Stainless SteelSPACER, (.250 x .390 x .630) Stainless Steel
-
20811291 BRACKETBRACKET
-
2110-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
2288404 TAB WASHERTAB WASHER
-
2387-18211 RELAY SWITCHRELAY SWITCH
-
2484-18244A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2510-18124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
2625-90329 GROMMETGROMMET
-
2723-309772 SPACERSPACER
-
28816994 BRACKETBRACKET
-
2912-42118 WASHERWASHER
-
3011-826709106 NUT, (#10-32)NUT, (#10-32)
-
3154-197491 CLAMPCLAMP
-
3237-81563024 DECALDECAL
