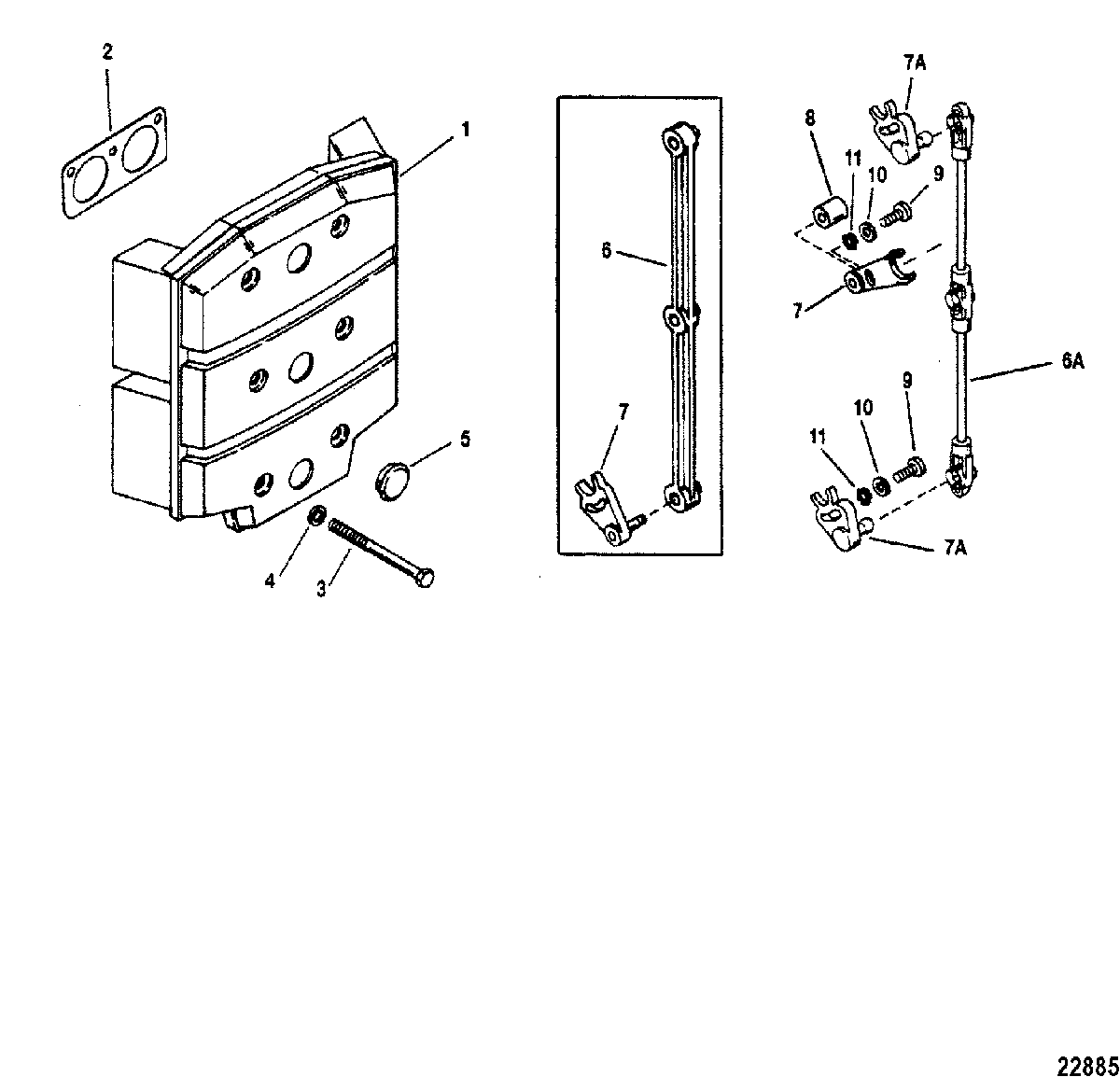

CHOKE PLATE AND THROTTLE LEVERS для Mariner - 140 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
1817495A1 PLATE ASSEMBLY, Sound AttenuatorPLATE ASSEMBLY, Sound Attenuator
-
227-892211 GASKETGASKET
-
310-884891 SCREW, (.250-28 x 2.500)SCREW, (.250-28 x 2.500)
-
412-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
519-815784 CAPCAP
-
618180 LINK, Throttle
(BOTTOM CARB IS WMH SERIES)LINK, Throttle
(BOTTOM CARB IS WMH SERIES) -
718181 LINK (W/STUB SHAFT)
(BOTTOM CARB IS WMH SERIES)LINK (W/STUB SHAFT)
(BOTTOM CARB IS WMH SERIES) -
6A825204A1 LINK KIT, Throttle
(BOTTOM CARB IS WMH-A SERIES)LINK KIT, Throttle
(BOTTOM CARB IS WMH-A SERIES) -
718181 LINK (W/STUB SHAFT)
(BOTTOM CARB IS WMH-A SERIES)LINK (W/STUB SHAFT)
(BOTTOM CARB IS WMH-A SERIES) -
7A181811 LINK (W/BALL SHAFT)
(BOTTOM CARB IS WMH-A SERIES)LINK (W/BALL SHAFT)
(BOTTOM CARB IS WMH-A SERIES) -
818178 ROLLERROLLER
-
910-87926 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
1012-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1113-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
