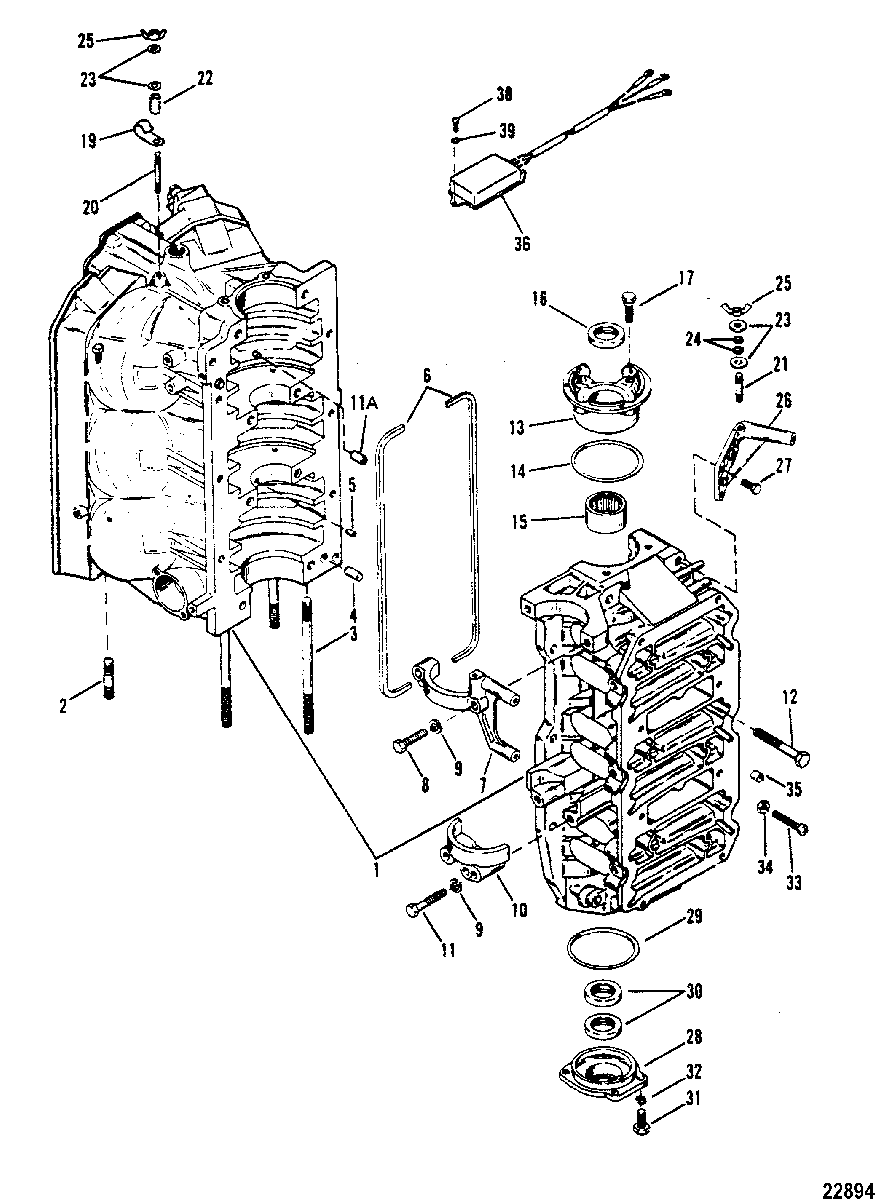

CYLINDER BLOCK AND END CAPS для Mariner - 140 JET 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    884-859211T2 CYLINDER BLOCK (135/150)
    CYLINDER BLOCK (135/150)
  • 1
    884-9763T17 CYLINDER BLOCK (XR6/Magnum III)
    SN# 0D284787 & Below
    CYLINDER BLOCK (XR6/Magnum III)
    SN# 0D284787 & Below
  • 1
    884-9763T23 CYLINDER BLOCK (XR6/Magnum III)
    SN# 0D284788 & Up
    CYLINDER BLOCK (XR6/Magnum III)
    SN# 0D284788 & Up
  • 1
    884-9763T17 CYLINDER BLOCK (175)
    CYLINDER BLOCK (175)
  • 1
    884-9763T61 CYLINDER BLOCK (200)
    CYLINDER BLOCK (200)
  • 1
    884-9763T23 CYLINDER BLOCK ( 150 TRACKER)
    CYLINDER BLOCK ( 150 TRACKER)
  • 2
    16-76175 STUD (1-7/8") (OLD DESIGN)
    STUD (1-7/8") (OLD DESIGN)
  • 2
    16-8M0034455 STUD (1-3/4")
    STUD (1-3/4")
  • 3
    16-670654 STUD (5-1/2")
    STUD (5-1/2")
  • 3
    16-8M0034454 STUD (6-3/4")
    STUD (6-3/4")
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET
    GASKET
  • 7
    8M0088723 COVER (UPPER)
    COVER (UPPER)
  • 8
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 8
    10-73657 SCREW, (.312-18 x 1.50) (Use with 13-26993 washer)
    SCREW, (.312-18 x 1.50) (Use with 13-26993 washer)
  • 9
    13-26993 LOCKWASHER, (.312) (Use with 10-73657 screw)
    LOCKWASHER, (.312) (Use with 10-73657 screw)
  • 10
    76867 COVER (LOWER)
    COVER (LOWER)
  • 11
    10-815549 SCREW, (.312-18 x 2.00)
    SCREW, (.312-18 x 2.00)
  • 11
    10-828214 SCREW, (.312-18 x 2.00) Hex Flange
    SCREW, (.312-18 x 2.00) Hex Flange
  • 11A
    23-99448 BUSHING
    BUSHING
  • 12
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 12
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 13
    1159-858521T1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 14
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 15
    31-16756A4 BEARING KIT
    BEARING KIT
  • 16
    26-41953 SEAL
    SEAL
  • 17
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 19
    54-63153 J CLIP
    J CLIP
  • 20
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 21
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 22
    23-67269 SPACER
    SPACER
  • 23
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 25
    11-816874 WING NUT, (#10-32)
    WING NUT, (#10-32)
  • 26
    422482 BRACKET
    BRACKET
  • 27
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 28
    1156-7809T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 29
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 30
    26-41953 SEAL
    SEAL
  • 31
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 33
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 34
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 35
    26852 CAP, Nylon
    CAP, Nylon
  • 36
    87076A10 IDLE SPEED CONTROL
    IDLE SPEED CONTROL
  • 38
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 39
    12-38833 WASHER
    WASHER
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284787 & Below
    POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284787 & Below
  • -
    823434R97 POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284788 & Up
    POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284788 & Up
  • -
    823434R97 POWERHEAD ASSEMBLY
    (Tracker 150)
    POWERHEAD ASSEMBLY
    (Tracker 150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
