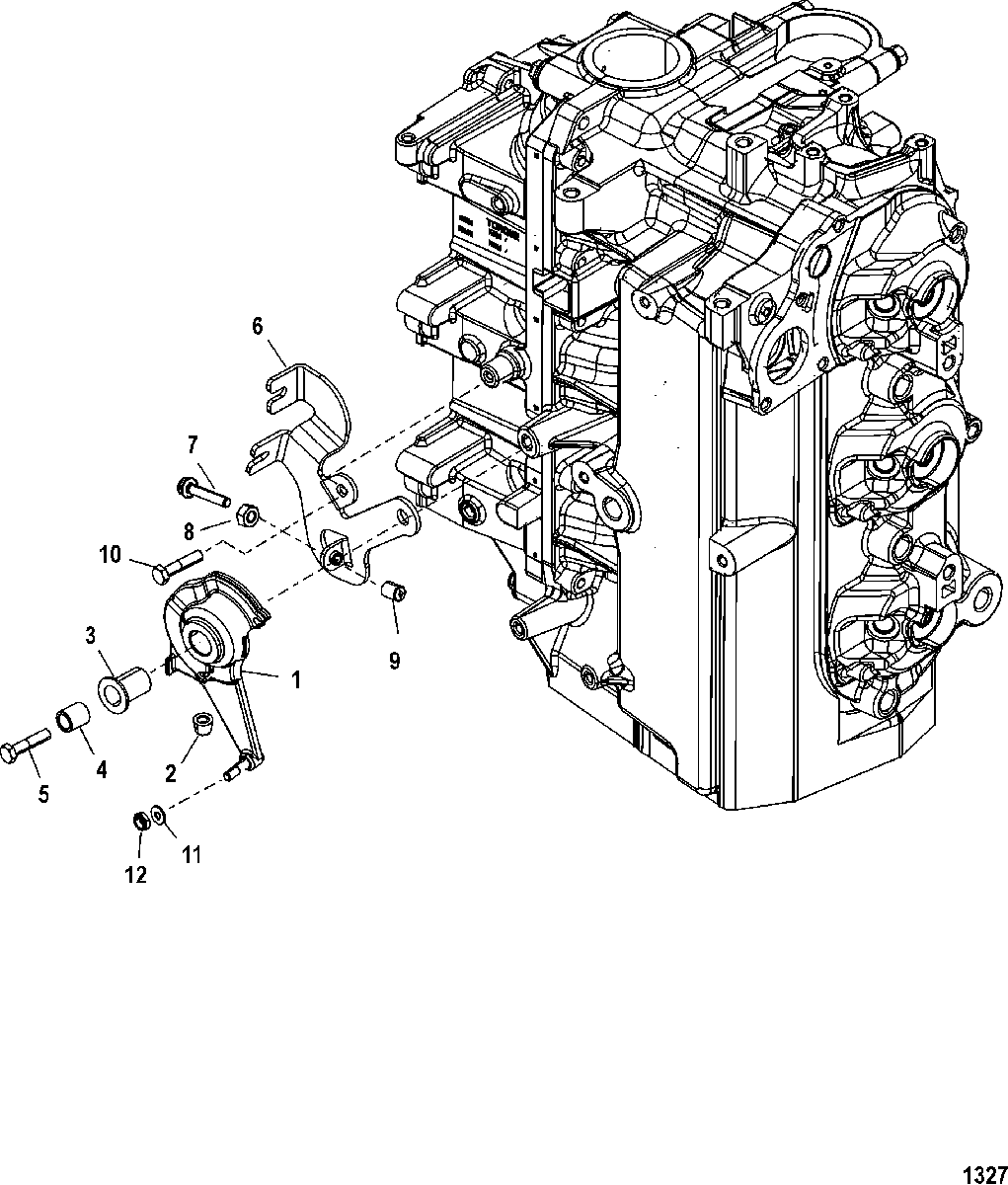

Throttle Lever and Linkage для Mariner - 125 DFI (3 CYL.)(1.5L) 1B736885 & Up
-
№АртикулНазвание
-
1881969A1 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
2822458 BUMPERBUMPER
-
323-812930A1 BUSHINGBUSHING
-
4NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
510-4007180 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
6881970A2 ARM ASSEMBLY, Bracket LeverARM ASSEMBLY, Bracket Lever
-
710-40011131 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
811-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
942942 CAPCAP
-
1010-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1112-35459 WASHERWASHER
-
1211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
