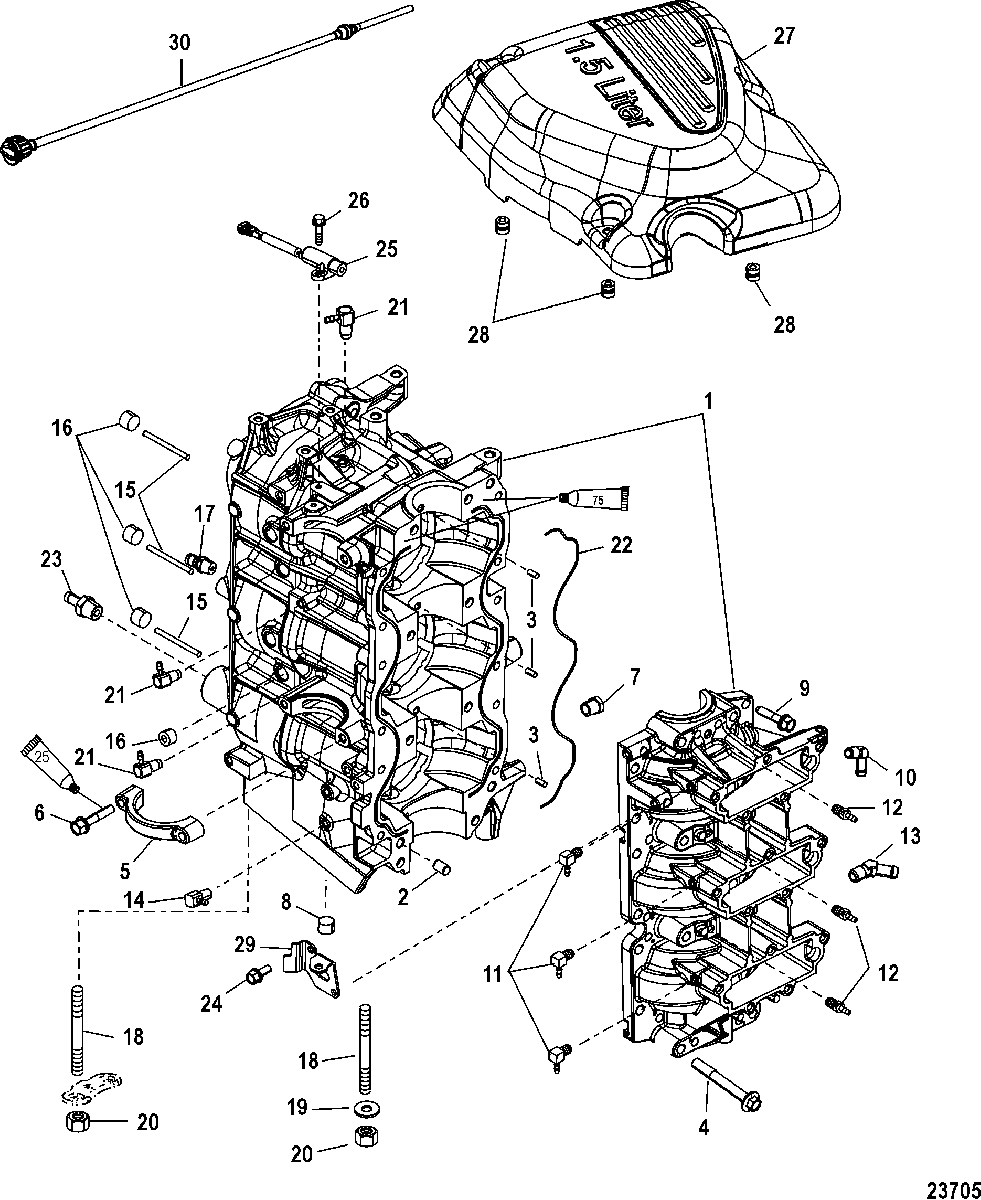

Cylinder Block and Crankcase для Mariner - 125 DFI (3 CYL.)(1.5L) 1B736885 & Up

  • №
    Артикул
    Название
  • 1
    800-878581A32 CYLINDER BLOCK ASSEMBLY
    75 Horsepower
    CYLINDER BLOCK ASSEMBLY
    75 Horsepower
  • 1
    800-878581A34 CYLINDER BLOCK ASSEMBLY
    90/115/125/Jet 80
    CYLINDER BLOCK ASSEMBLY
    90/115/125/Jet 80
  • 2
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 3
    17-8M0036405 PIN
    PIN
  • 4
    10-4009680 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 5
    8M0111325 BRACKET
    BRACKET
  • 6
    10-81742740 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 7
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 8
    22-185981 PLUG, Pipe (.375-18)
    PLUG, Pipe (.375-18)
  • 9
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 10
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 11
    21-883139001 CHECK VALVE
    CHECK VALVE
  • 12
    21-889830 CHECK VALVE
    CHECK VALVE
  • 13
    22-782792 FITTING, Elbow 45 Degree (1.25)
    FITTING, Elbow 45 Degree (1.25)
  • 14
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 15
    8248576 DEFLECTOR, Water
    DEFLECTOR, Water
  • 16
    22-185981 PLUG, Pipe (.375-18)
    PLUG, Pipe (.375-18)
  • 17
    22-881866 FITTING
    FITTING
  • 18
    16-892561001 STUD, (M10 x 136)
    STUD, (M10 x 136)
  • 19
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 20
    11-40140 NUT, (M10)
    NUT, (M10)
  • 21
    21-8592352 CHECK VALVE, 90 Degree (.0625-27)
    CHECK VALVE, 90 Degree (.0625-27)
  • 22
    891956 SEAL
    SEAL
  • 23
    22-835454001 FITTING
    FITTING
  • 24
    10-81742720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 25
    8M0082988 SENSOR, Crank Position
    SENSOR, Crank Position
  • 26
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 27
    880198T COVER, Flywheel
    COVER, Flywheel
  • 28
    25-821555001 GROMMET
    GROMMET
  • 29
    880731002 BRACKET, Oil Reservoir
    BRACKET, Oil Reservoir
  • 30
    32-8M0102826 HOSE ASSEMBLY, Flushing
    HOSE ASSEMBLY, Flushing
  • -
    27-879855A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    895233A07 POWERHEAD ASSEMBLY, 75 DFI
    75 Horsepower
    POWERHEAD ASSEMBLY, 75 DFI
    75 Horsepower
  • -
    891767A07 POWERHEAD ASSEMBLY, 90/115 DFI
    90/115/125/Jet 80
    POWERHEAD ASSEMBLY, 90/115 DFI
    90/115/125/Jet 80
