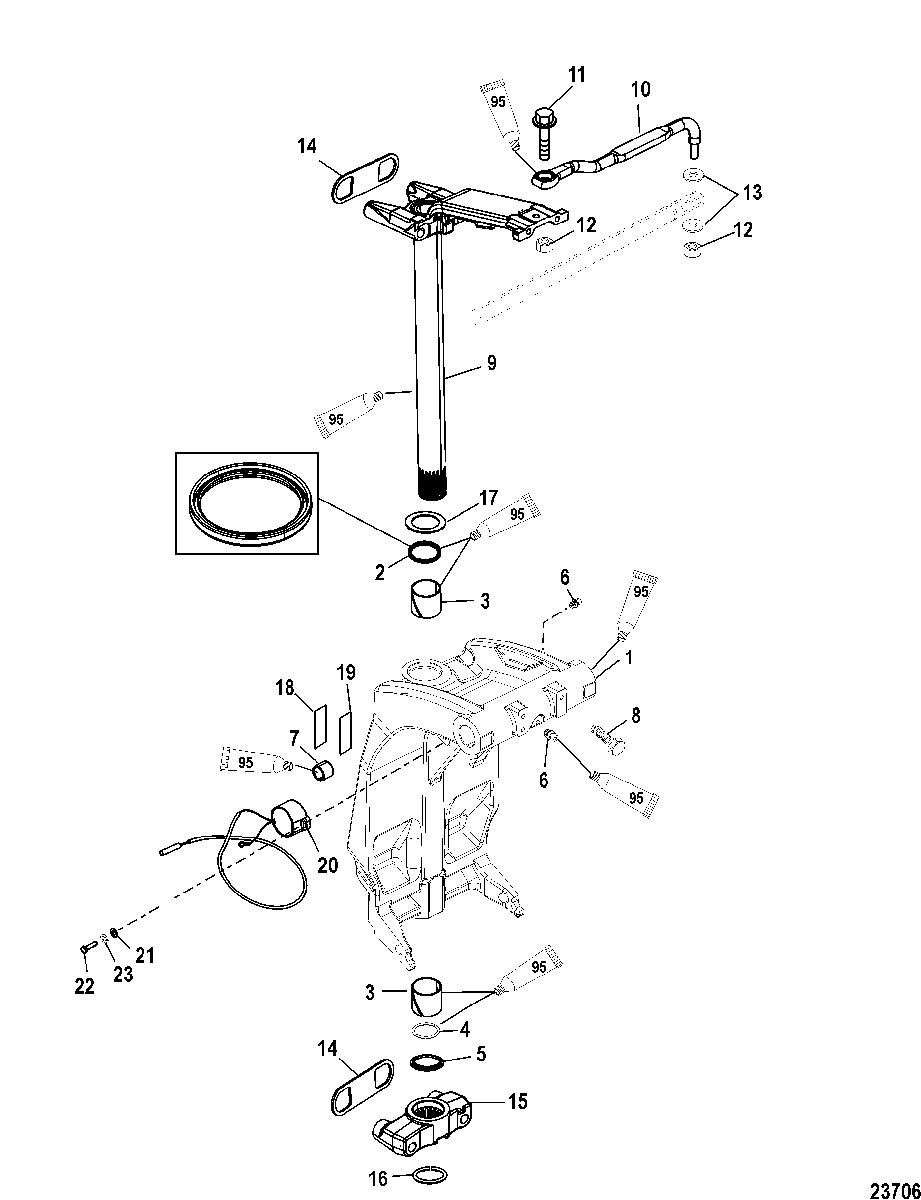

Swivel Bracket and Steering Arm для Mariner - 125 DFI (3 CYL.)(1.5L) 1B736885 & Up

  • №
    Артикул
    Название
  • 1
    1400-8M0107419 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    26-87735 SEAL, Oil
    SEAL, Oil
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    25-33504 O-RING
    O-RING
  • 5
    23-816039 SPACER
    SPACER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 9
    99661A35 SWIVEL PIN ASSEMBLY
    SWIVEL PIN ASSEMBLY
  • 10
    92876A12 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 11
    10-849838 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 12
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 12
    11-8M0042636 NUT, (.375-24) Brass
    NUT, (.375-24) Brass
  • 13
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 14
    8M0000519 BUMPER
    BUMPER
  • 15
    881914T01 YOKE, Bottom
    YOKE, Bottom
  • 16
    53-67684 RING, Retaining
    RING, Retaining
  • 17
    12-816432 THRUST WASHER
    THRUST WASHER
  • 18
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 19
    NSS NOT SOLD SEPARATE, Decal-Serial Number
    NOT SOLD SEPARATE, Decal-Serial Number
  • 20
    8M0098264 SENDER KIT, Power Trim
    SENDER KIT, Power Trim
  • 21
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 22
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
