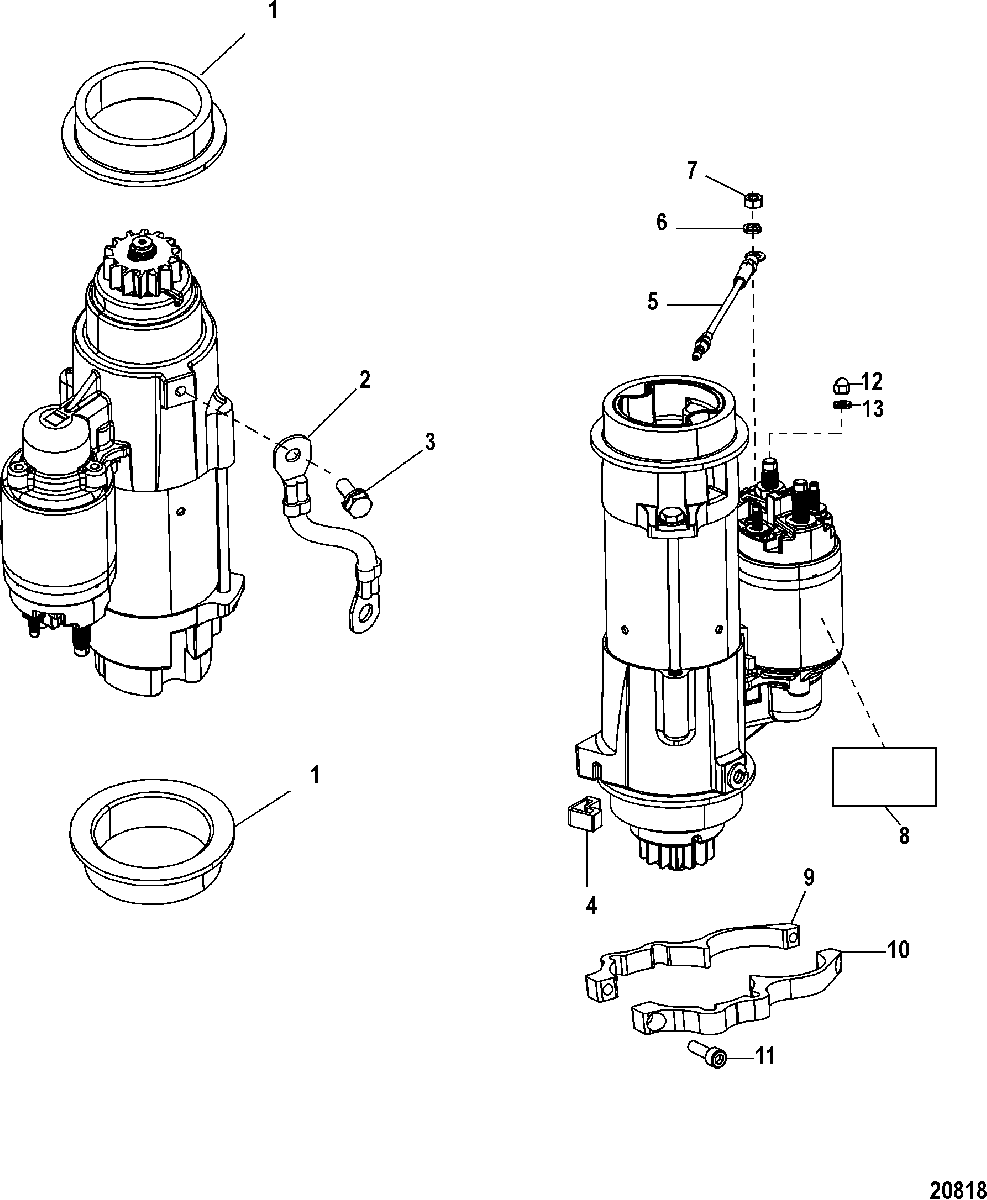

Starter Motor, 1B759587 and Below для Mariner - 115 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • -
    50-879150A85 STARTER MOTOR ASSEMBLY
    SN# 1B580803 & Below
    STARTER MOTOR ASSEMBLY
    SN# 1B580803 & Below
  • -
    50-879150A85 STARTER MOTOR ASSEMBLY, Complete
    SN# 1B580804 THRU 1B759587
    STARTER MOTOR ASSEMBLY, Complete
    SN# 1B580804 THRU 1B759587
  • 1
    23-8M0034918 COLLAR, Starter Motor
    COLLAR, Starter Motor
  • 2
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 3
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 4
    8M0007871 STOP, Rubber
    STOP, Rubber
  • 5
    84-898890T01 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 6
    13-400255 LOCKWASHER, (M5)
    LOCKWASHER, (M5)
  • 7
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 8
    37-8272822 DECAL, Warning
    DECAL, Warning
  • 9
    50-879150A85 CLAMP
    CLAMP
  • 10
    50-879150A85 CLAMP
    CLAMP
  • 11
    10-8M0008081 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 12
    11-8M0008110 NUT, Acorn
    NUT, Acorn
  • 13
    12-8M0008112 WASHER, (8 mm Outside Diameter x 187 mm)
    WASHER, (8 mm Outside Diameter x 187 mm)
